104 SDG2000X User Manual

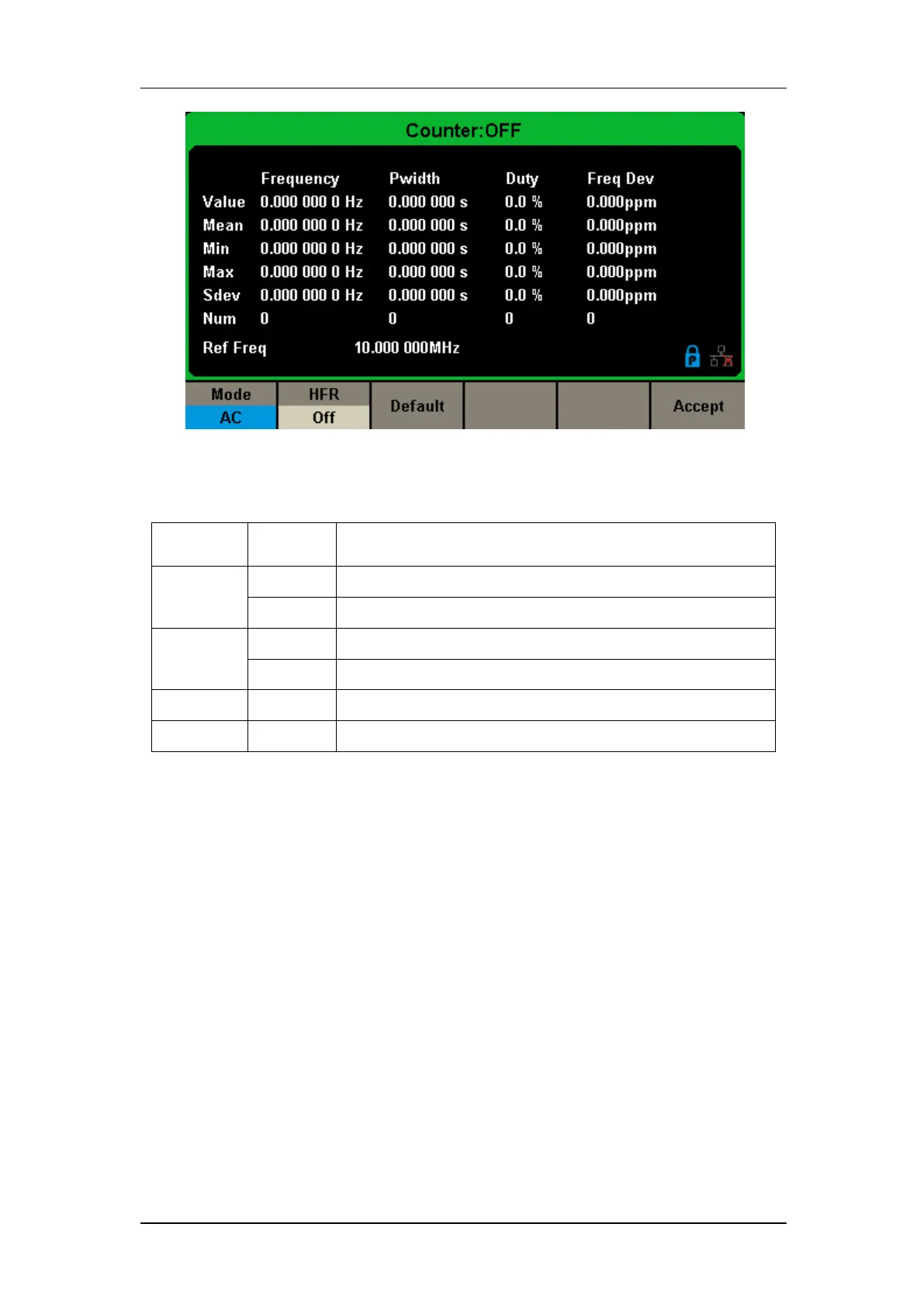

Figure 2-65 Counter Setup Interface
Table 2-36 Menu Explanations of Setup
Function
Menu
Settings
Explanation
Mode
DC
Set the coupling mode to DC
AC
Set the coupling mode to AC
HFR
On
Open the high frequency rejection filter.
Off
Close the high frequency rejection filter.
Default
Set the frequency counter settings to default.
Done
Save the current settings and return to the previous menu.
1. To Select the Parameters to be measured
The frequency counter on the SDG2000X can measure parameters including
frequency, period, duty, positive pulse width and negative pulse width.
2. Reference Frequency
System will calculate the deviation between the measured frequency and the
reference frequency automatically.
3. Trigger Level
Sets the trigger level of the measurement system. The system triggers and
obtains the measurement readings when the input signal reaches the
specified trigger level. The default is 0V and the available range is from -3V to
