2.10 To Set Sweep Function
In the sweep mode, the generator steps from the start frequency to the stop
frequency in the sweep time specified by the user. The waveforms that
support sweep include sine, square, ramp and arbitrary.
Press Sweep key to enter the following menu. Set the waveform parameters
by using the operation menu.

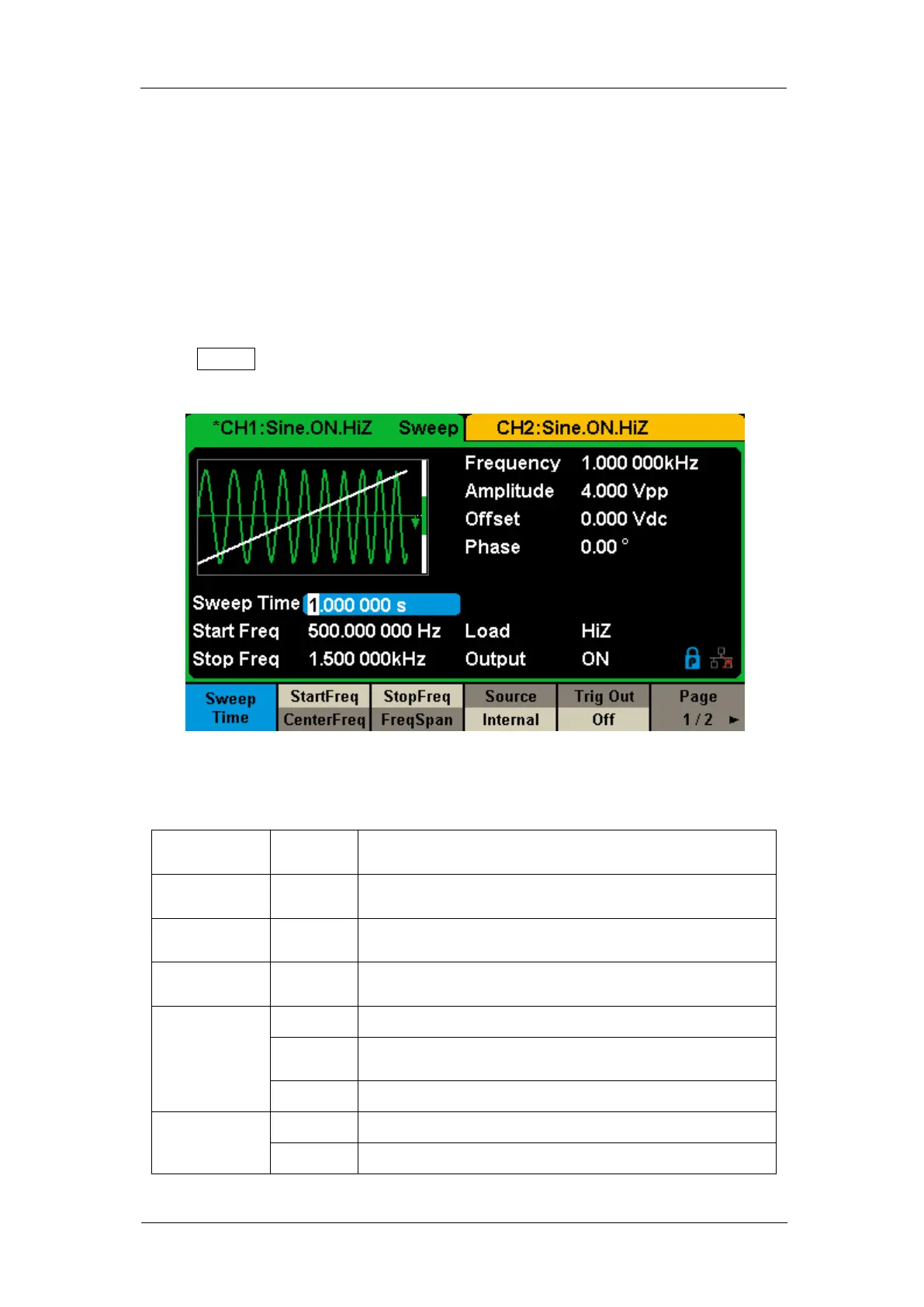

Figure 2-34 Setting Interface of Sweep (Page 1/2)
Table 2-18 Menu Explanations of Sweep (Page 1/2)
Function
Menu
Settings
Explanation
Sweep time
Set the time span of the sweep in which the frequency
changes from the start frequency to stop frequency.
Start Freq
Mid Freq
Set the start frequency of the sweep;
Set the center frequency of the sweep.
Stop Freq
Freq Span
Set the stop frequency of the sweep;
Set the frequency span of the sweep.
Source
Internal
Choose internal source as a trigger.
External
Choose external source as a trigger. Use the [Aux
In/Out] connector at the rear panel.
Manual
Trigger a sweep by manual.
Trig Out
Off
Disable trigger out.
On
Enable trigger out.
