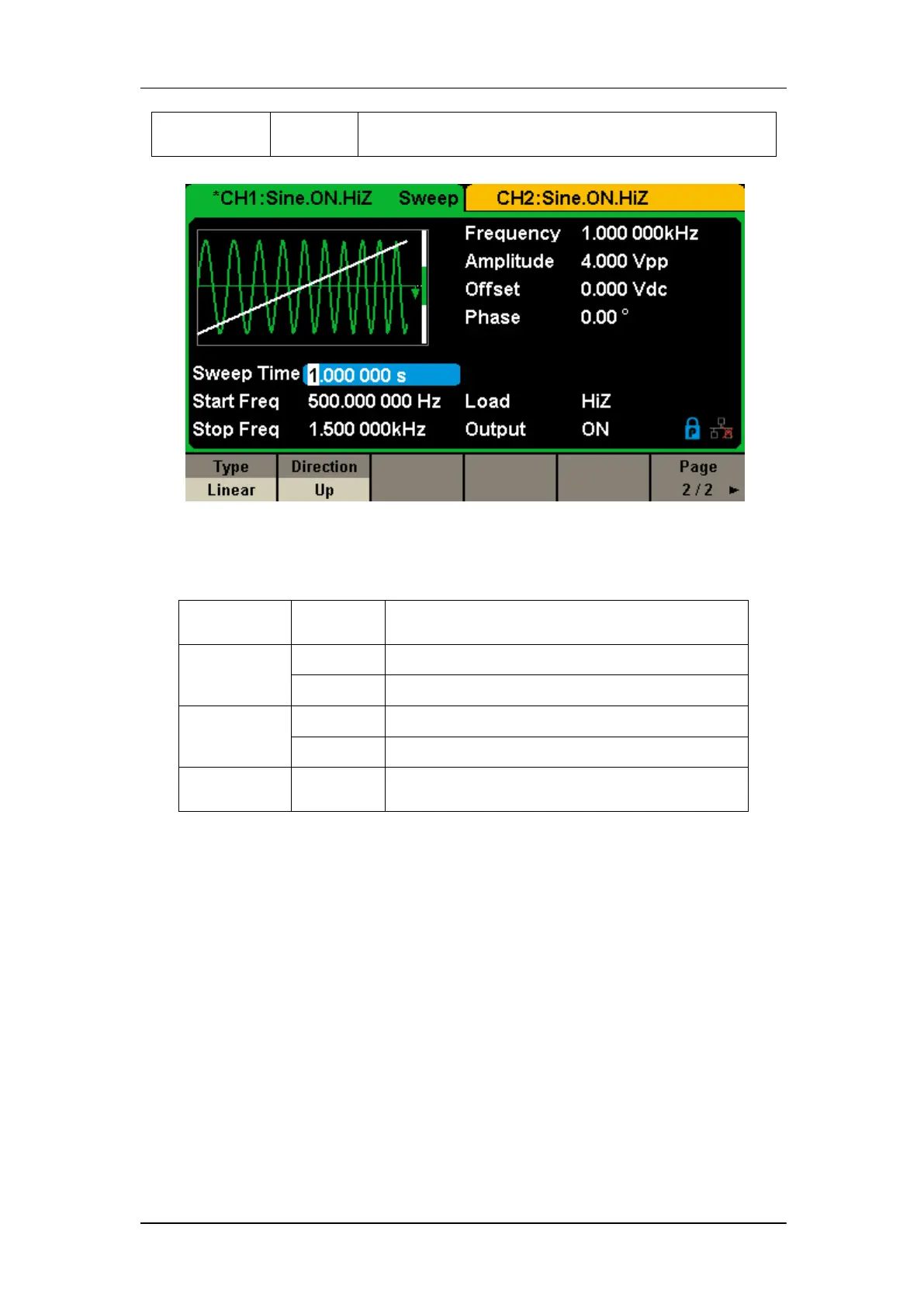

Figure 2-35 Setting Interface of Sweep (Page 2/2)
Table 2-19 Menu Explanations of Sweep (Page 2/2)
Sweep Frequency
Use start freq and stop freq or center freq and freq span to set the range of the
frequency sweep. Press the key again to switch between the two sweep range
modes.
.
Start Frequency and Stop Frequency
Start Frequency and Stop Frequency are the lower and upper limits of the
frequency for sweep. Start Frequency ≤ Stop Frequency.
Page
1/2
Enter the next page.
Function
Menu
Settings
Explanation
Type
Linear
Set the sweep with linear profile.
Log
Set the sweep with logarithmic profile.
Direction
Up
Sweep upward.
Down
Sweep downward.
Page
2/2
Return to the previous page.
