SDG2000X User Manual 3
1.2 The Front/Rear Panel
This chapter will provide a brief introduction and description for the operation
and functions of the front/rear panel.
Front Panel
SDG2000X has a clear and simple front panel which includes 4.3 inch touch
screen, menu softkeys, numeric keyboard, knob, function keys, arrow keys,
and channel control area, etc.

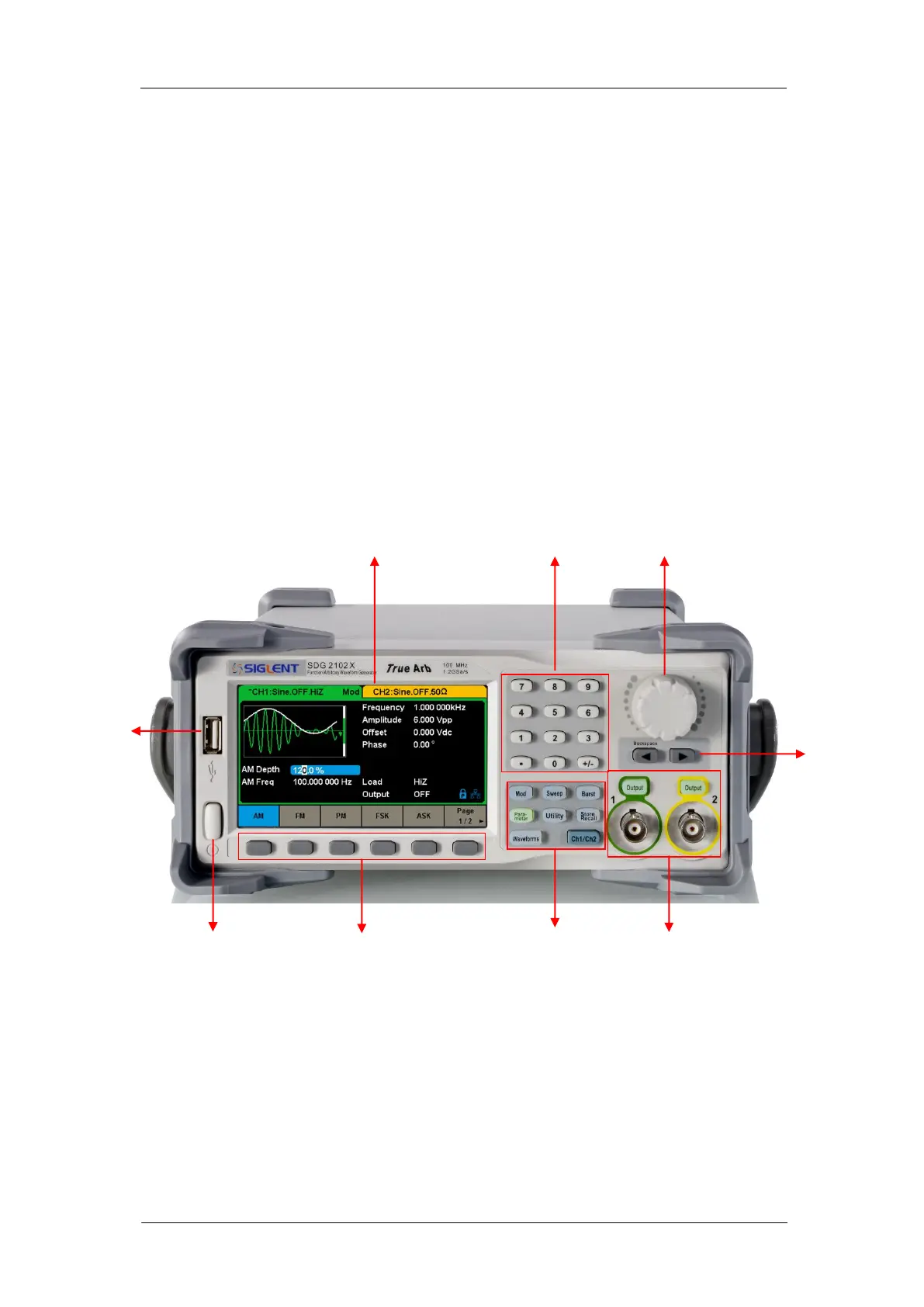

Figure 1-2 Front Panel of SDG2000X
USB
Host
Numeric Keyboard
Knob
Power
Key
User Interface
Menu
Softkeys
Function
Keys
Channel
Control
Arrow
Keys
