SDG2000X User Manual 37
2.7 To Set Arbitrary Waveform
The Arb signal consists of two types: the system‘s built-in waveforms and the
user-defined waveforms. Built-in waveforms are stored in the internal
non-volatile memory. Users may also edit the arbitrary waveform with 8 to 8M
data points, namely 8pts to 8Mpts.
DDS
Choose Waveforms → Page 1/2 → Arb → Arb Mode and select the ―DDS‖
output mode. The parameters include frequency/period, amplitude/high level,
offset/low level and phase.

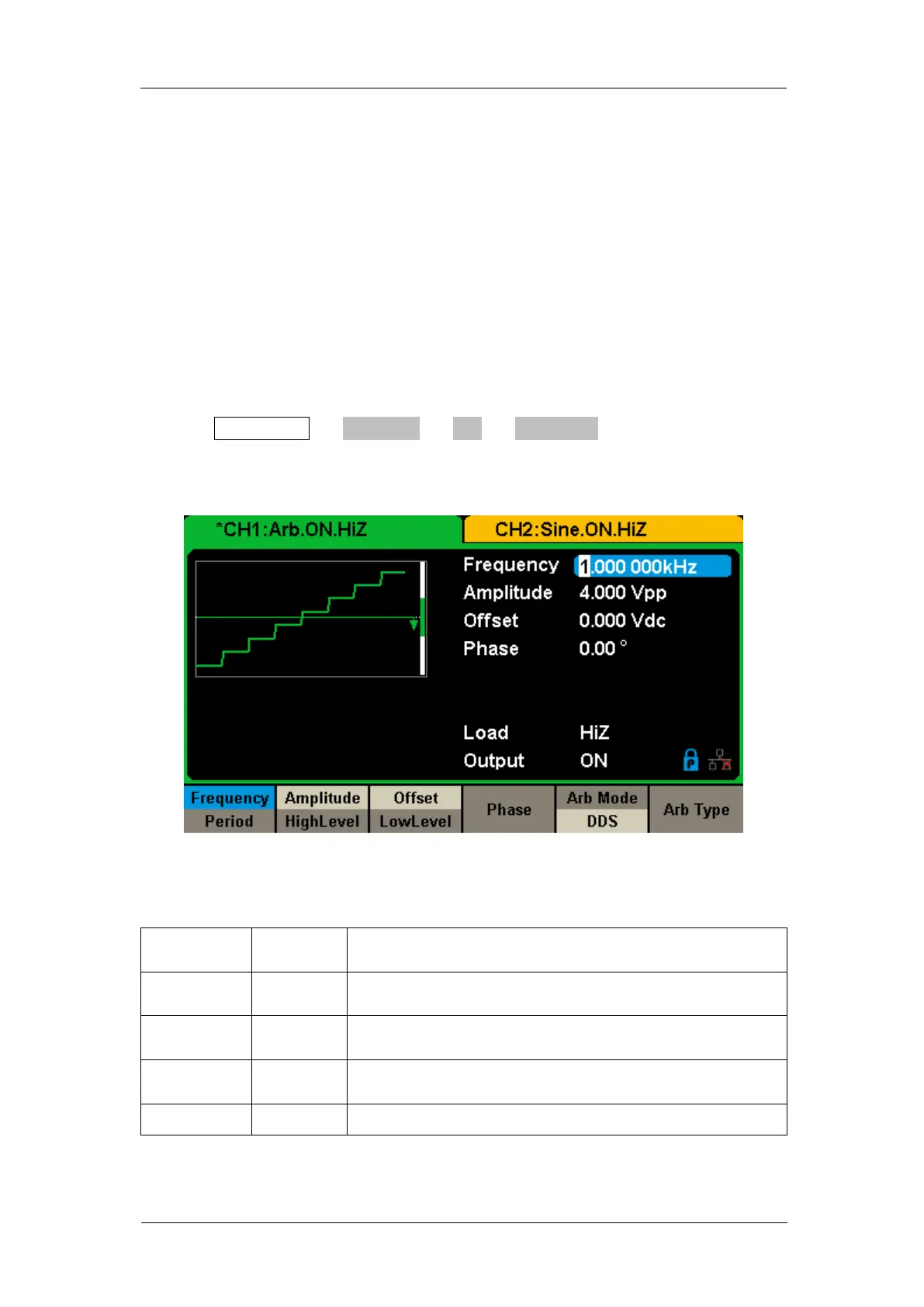

Figure 2-18 Arb Parameters Display Interface (DDS)
Table 2-6 Menu Explanations of Arb Waveform (Page 1/2)
Function
menu
Settings
Explanations
Frequency/
Period
Set the signal frequency or period;
The current parameter will be switched at a second press.
Amplitude/
HighLevel
Set the signal amplitude or high level;
The current parameter will be switched at a second press.
Offset/
LowLevel
Set the signal offset or low level;
The current parameter will be switched at a second press.
Phase
Set the phase of the signal.
In DDS output mode, users can set the frequency or period of the arbitrary
