38 SDG2000X User Manual
waveform. The instrument outputs an arbitrary waveform which is made up of
certain points according to the current frequency
TrueArb
Choose Waveforms → Page 1/2 → Arb → Arb Mode and select the ―TrueArb‖
output mode. The parameters include sampling rate/frequency, amplitude/high
level, offset/ low level and phase.

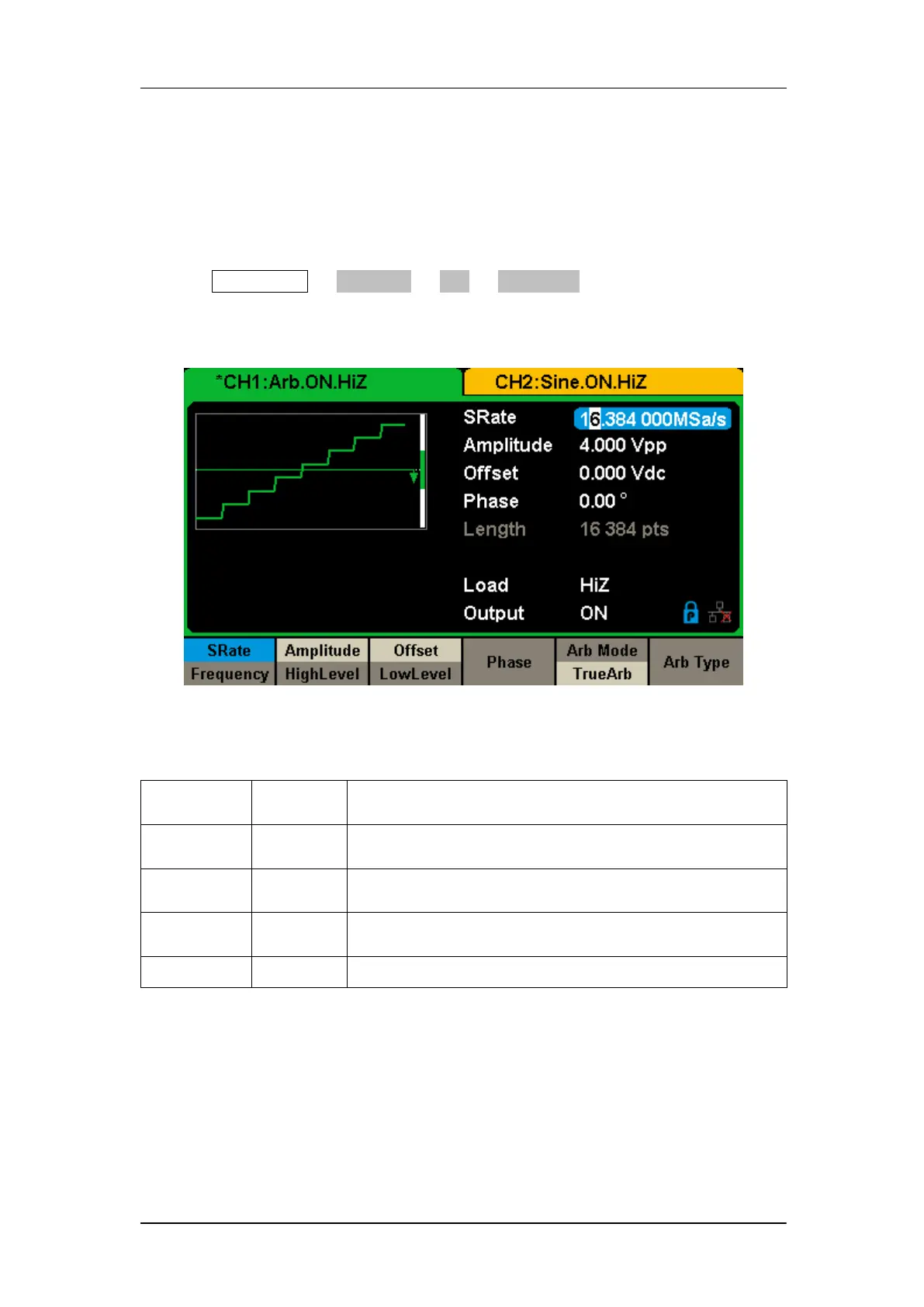

Figure 2-19 Arb Parameters Display Interface (TrueArb)
Table 2-7 Menu Explanations of Arb Waveform (Page 1/2)
Function
menu
Settings
Explanations
SRate/
Frequency
Set the signal sampling rate or frequency;
The current parameter will be switched at a second press.
Amplitude/
HighLevel
Set the signal amplitude or high level;
The current parameter will be switched at a second press.
Offset/
LowLevel
Set the signal offset or low level;
The current parameter will be switched at a second press.
Phase
Set the phase of the signal.
In TrueArb output mode, users can set the sampling rate (the output points per
second) or frequency of the arbitrary waveform. The instrument outputs an
arbitrary waveform point by point according to the current sampling rate.
