SIGLENT
108 SDG2000X User Manual
waveform of CH2 in the general mode while the waveform of CH1+CH2 can
be output in the combined mode.
Press Utility Output Setup Wave Combine to enter the waveforms
combining interface, as shown in the following figure.

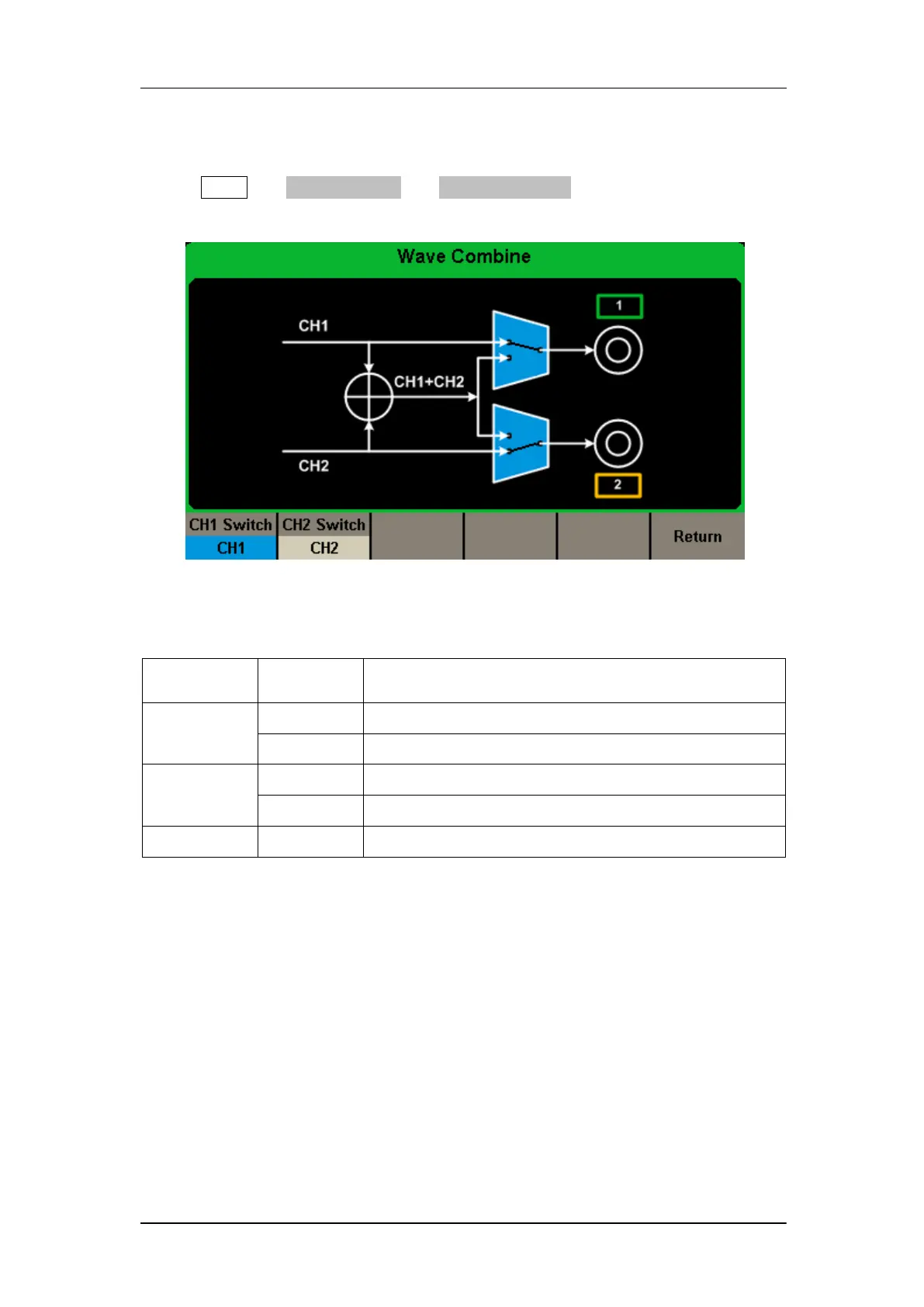

Figure 2-67 Waveforms Combining Interface
Table 2-37 Menu Explanations of Wave Combine
Function
Menu
Settings
Explanation
CH1 Switch
CH1
Output the waveform of CH1.
CH1+CH2
Output the waveform of CH1+CH2.
CH2 Switch
CH2
Output the waveform of CH2.
CH1+CH2
Output the waveform of CH1+CH2.
Return
Save the current operation and exit the current interface.
Note:
When the waveforms combining function is enabled, the load of two channels
will be set to the same automatically, default using the load value of the
currently operated channel.
