11

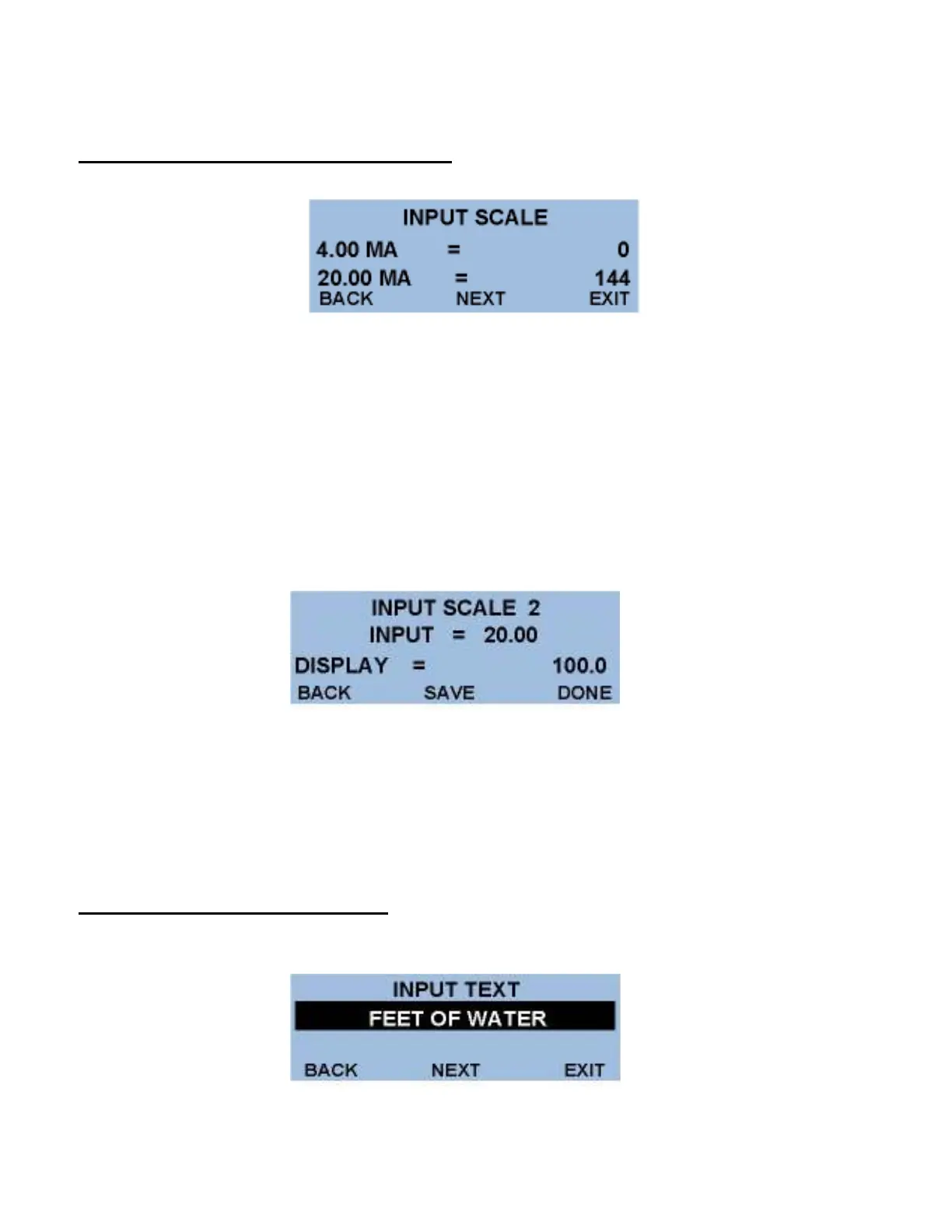

INPUT SCALING TO ENGINEERING UNITS
NOTE: This screen sets what the Myriad DPC displays in the main display for the selected
input. The example shown above will display 0.0 units when the input is 4.00 MA. Both the input
and the display at that input can be changed for different requirements.
A) With the cursor selecting ‘4.00’ (or the zero value of the selected input) use the ↑ ↓ buttons to
change the input value for the required displayed value.
B) Use the → ← buttons to move the cursor to the ‘display’ value and the Up/Down buttons to
change the desired display for the previously selected input. Once complete, scroll to ‘SAVE’,
press ‘ENTER’ to access ‘INPUT SCALE 2’ screen.
Follow the steps outlined above to set the values of ‘input’ and ‘display’ for input Scale 2.
When complete with scale 2, scroll the cursor to the ‘SAVE’ position and press ‘ENTER’. Press
‘DONE’ and press ‘ENTER’ to move to the “ENGINEERING UNITS” selection screen.
This screen available only on some versions.
ENGINEERING UNITS SELECTION:
When ‘Scale Menu’ is complete the ‘INPUT TEXT” menu is the last menu in the scaling process.
