Sigma Controls MYRIAD DPC User Manual

10

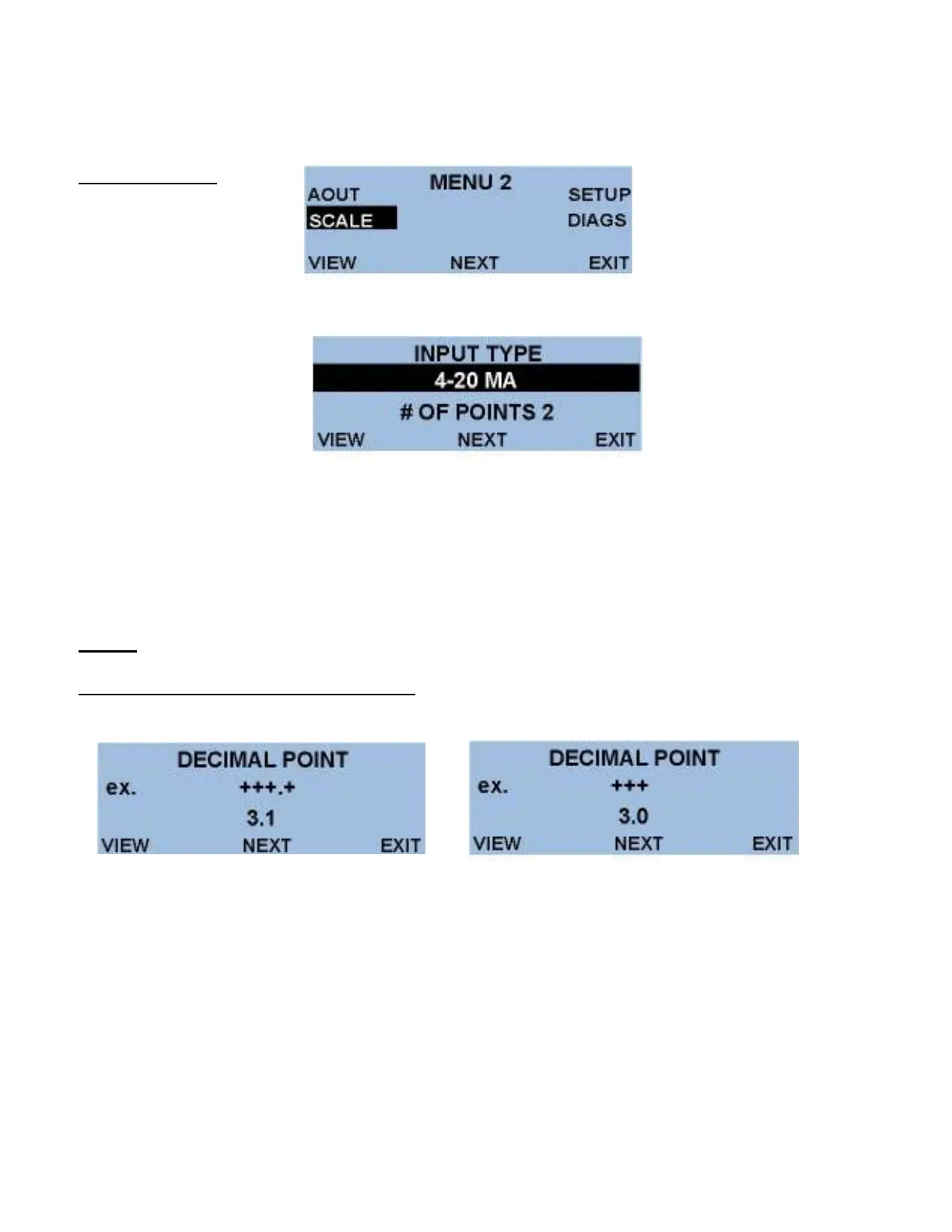

MENU 2 SCALE
Use the → ← buttons to highlight ‘SCALE’ and press ‘ENTER’.
Use the ↑ ↓ arrow buttons to select the desired analog input range. NOTE: INPUT TYPE MUST
BE COORDINATED WITH INPUT SELECTOR SWITCH LOCATED ON THE BOTTOM OF
THE CIRCUIT BOARD (See Appendix ‘A’)
The ‘DPC’ does not include linearization of the input signal. The display is linear over the 2
points selected.
NOTE: Highlight ‘NEXT’ and press ‘ENTER’ to advance to the next screen.
DECIMAL POINT SELECTOR SCREEN
The cursor will be positioned over the decimal count window. Use the ↑ ↓ arrow buttons to raise
or lower the unit number to the left of the decimal point. (The example shown in this window will
change with your selection.)
Use the → ← buttons to move the cursor over the number behind the decimal point and use
the ↑ ↓ buttons to change this selection. Once again, the example will change to confirm your
selection.
Use the → ← buttons to highlight the ‘NEXT’ selection and press ‘ENTER’ to access the Input
Scale Screen.
