21

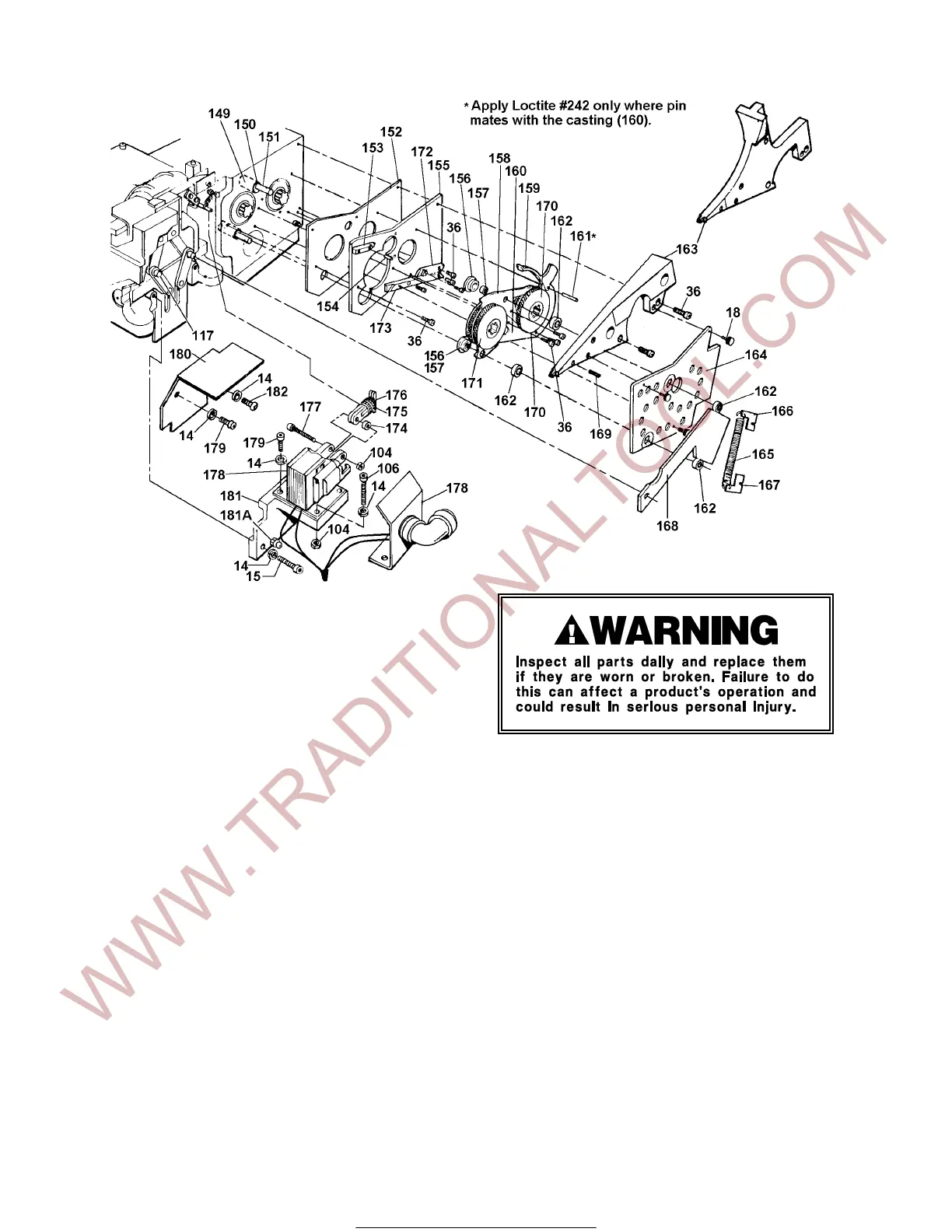

PART REMOVAL & REPLACEMENT - TRACTION
WHEELS (170, 171)
1. Remove pinch roller spring assembly and ball bearings (162, 165, 166 and 167).
2. Remove outer side plate, (164), by removing three Allen head screws. Release wedge, (168) will pivot
upward to allow access to the feed system.
3. Loosen two socket head cap screws (36) from right strap lead (160).
4. Pull off feedwheel.
5. Reassemble wheel and strap lead. Shift right strap lead while screws are still loose to obtain maximum
uniform gap for strap passage.
6. Loosen two socket head cap screws (36) from left strap lead (158).
7. Pull off two pinch roller bearings (162).
8. Pull off tension wheel.
9. Replace wheel and reassemble, again making sure that the lead is positioned for maximum uniform
strap gap.
