43
OPTIONAL CHUTE SUPPORT INSTALLATION

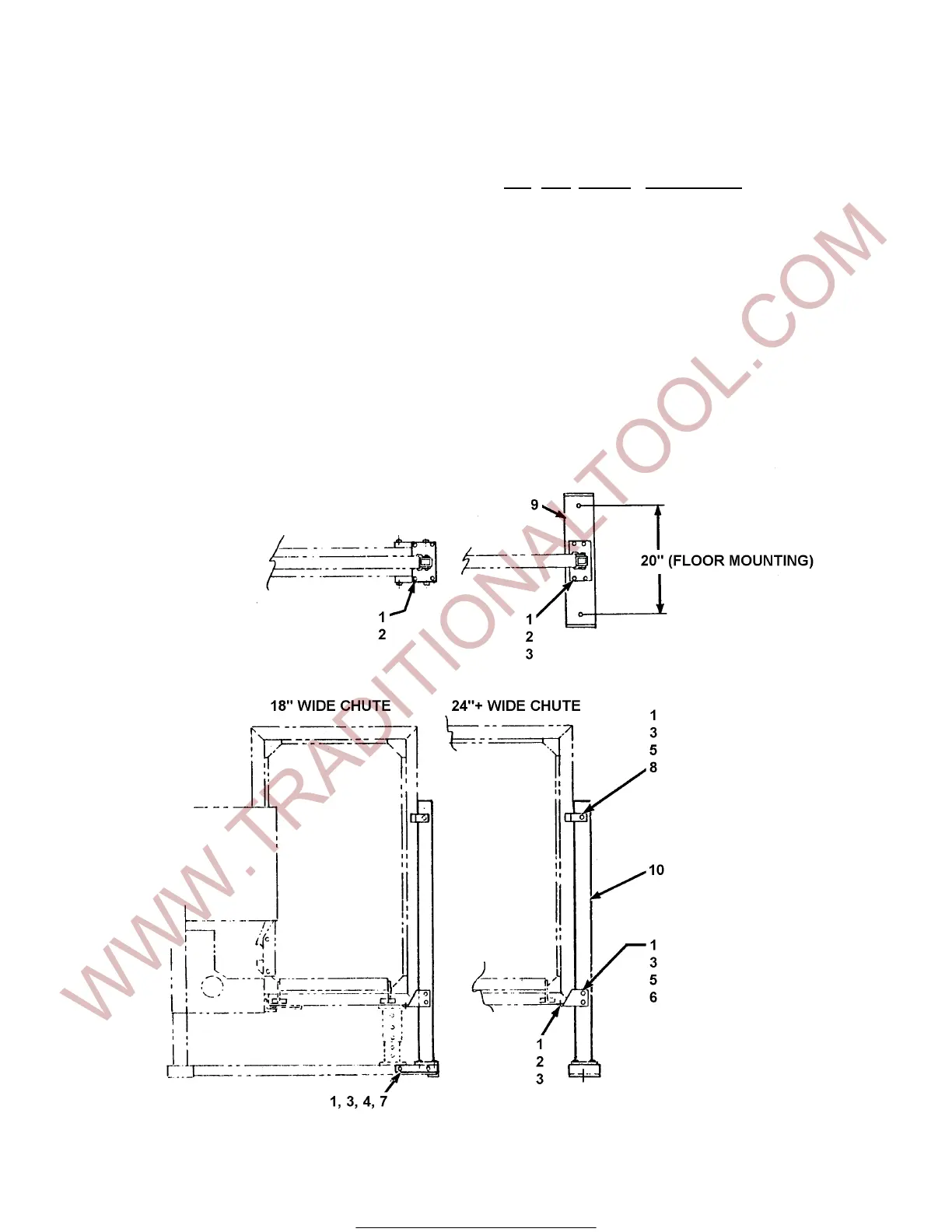

1. Refer to the side view to install the chute
support assembly. Note that holes must
be added to the bottom chute section to
attach the bottom chute support bracket
(6).
2. If the chute is 18 inches wide, remove
the leg and install the mounting bars (7)
on the frame. Mount the support, less
base, (9) on the mounting bars as shown.
3. If desired, the height of the support may
be cut down if it extends above the
chute.
4. Holes have been provided in the support
base (9) for anchoring to the floor or
attaching casters.
KEY
QTY PART # DESCRIPTION
1 13 006243 Lockwasher, 3/8
2 6 006293 HHCS, 3/8-16 x 1
3 13 009069 Standard nut 3/8-16
4 4 009092 Cap screw
5 3 014980 Long hex head cap screw
6 1 260445 Chute bracket
7 2 260447 Support mounting bar
8 2 260451 Bracket
9 1 260452 Base weldment
10 1 260453 Support weldment
