DF1-12D DISPENSER LOADING, THREADING AND ADJUSTING INSTRUCTIONS
Make sure the power strapping machine has
been turned OFF. Failure to do so can result
in personal injury.
To load a coil of strap in the DF1-12D Dispenser,
follow the steps below:

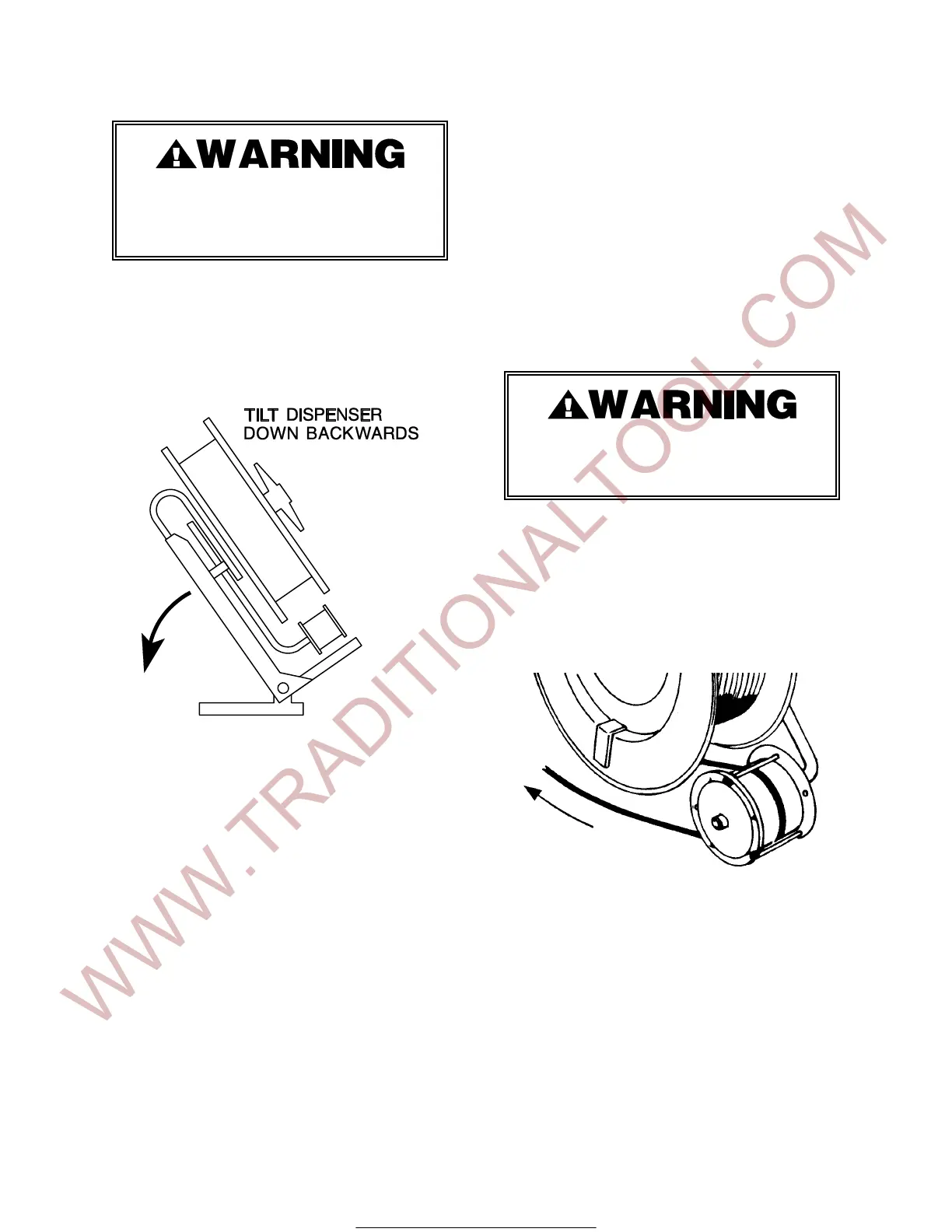

1. Release the dispenser pivot latch and tilt the
dispenser back 90° to the horizontal position.
Turn the wing nut CCW and lift the outer reel
disc assembly from the dispenser.
2.
Remove the plastic film from the coil's
INSIDE diameter only, following the
perforations on the sides of the coil. But
before installing the coil of strap, note the
direction of pay-off of the lead end. The lead
end of the strap should point in the direction
of the arrow affixed to the inside of the reel
disc assembly.
3. Lower the new coil over the central hub and,
if installing a coil of Dymax strap, position
the three retaining ties above the three
indentations. This will facilitate tie removal.
4. Reinstall the outer reel disc assembly,
making sure the stud attached to the rear
disc assembly protrudes through the hole
of the outer disk, then SNUG the wing nut.
5. If installing a coil of Dymax strap, cut and
remove the three ties from the coil then
remove the piece of tape used to contain
the lead end to the outside of the coil. If
installing a coil of Contrax or Tenax strap,
remove the shrink film, the small piece of
tape and the corrugated belly band.
6. Securely tighten the wing nut.
The wing nut must be tight. Failure to do
so can result in personal injury.
7. Lift the dispenser to the upright position,
making sure the pivot latch has locked the
dispenser in the upright position. The
dispenser is ready to be threaded.
8. Make sure there are no twists or kinks in
the strap. Lead it back towards the dancer
arm drum and feed it around the drum as
shown below.
9.
B
ri
n
g
th
e
le
a
d
e
nd of the strap up from around the bottom of the
drum, pull it forward and insert the strap in the
power strapping machine.
