49

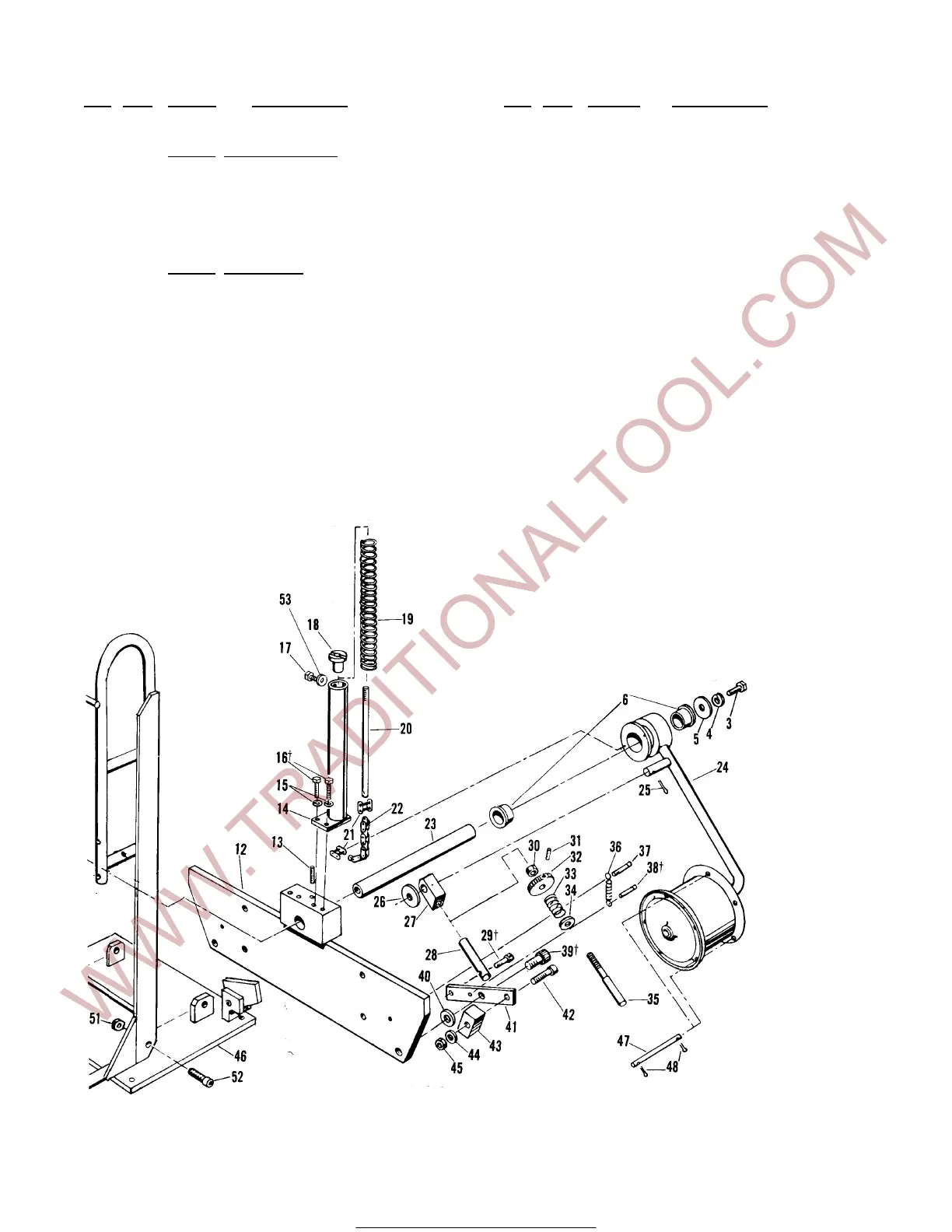

KEY QTY PART# DESCRIPTION
35 1 024312 Brake rod
36 1 024346
Extension spring
37 2 024348 Pin
38 1 024347 Pin
39 1 024351 ShS, 1/2 x 5/8
40 1 024355 Washer, 5/16 SAE
41 1 024309 Brake arm
42 1 014829 SHCS, 5/16-18 x 3
43 1 024310
Brake block
44 1 006720 Washer, 5/16 std.
45 1 005211 Lock nut, 5/16-18
46* 1 024360 Base assy. (optional)
47 2 031326 Guide pin
48 4 002164 Cotter pin, 1/16 x 1/2
49 1 024366 Pulley, long pay-off arm
(optional), not shown
50 1 014490 Pulley, short pay-off arm
(optional), not shown
KEY
QTY PART # DESCRIPTION
51 2 009069 Hex nut, 3/8-16
52 2 020241 SHCS, 3/8-16 x 2 1/4
53 1 002188 Split lock washer, 5/16
!
When ordering parts, please show model, part
number and name.
!
Common hardware parts may be obtained at
any local hardware supply.
!
Wearing parts are usually limited to those
underlined and should be stocked.
* This assembly includes 2 hex nuts (009069) and
2 socket head cap screws (020241), as
illustrated.
For Parts & Service 1-877-862-6699
