Silent Gliss 9021 - Connection and Operating Equipment

Page 6
Usermanual Motors 902x_903x
5 Connection and Operating Equipment
5.1 Overview
The Motor is available in two power supply options; 90 – 250V
AC/260V AC CB as well as 24V DC. The power plugs are designed
differently and cannot be mixed up. The remaining ports and indicators
are identical on both motors.

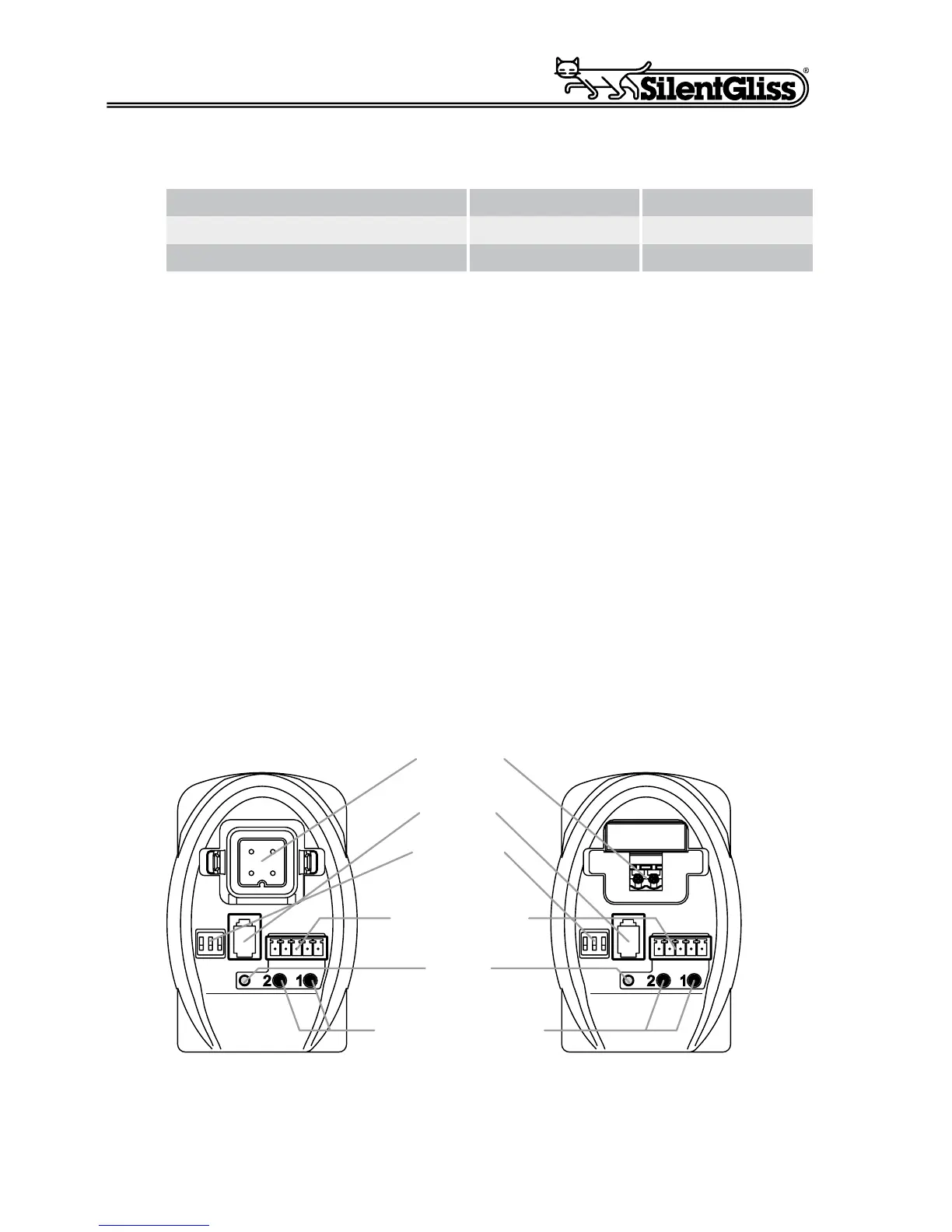

The following main overview of the ports and indicators may be used
for both motors. The subsequent chapters deal in detail with the func-
tions, allocations and setting of the ports and indicators.
9020-9023 9030-9033
Voltage Supply
Frequency
Current
Frequency of radio control
(only for 9021/9023/9031/9033)
90 - 250V AC**
50 - 6 0 Hz
0.5 - 1 A
868 or 915 MHz*
24 V DC
--
2.5 A
868 or 915 MHz*
Speed
Noise level
Dimension
Max. drapery weight
Weight
110 rpm
< 45 dBA (30cm)
240 x 90 x 60mm
1kg
110 rpm
< 45 dBA (30cm)
240 x 90 x 60mm
1kg
44kg / 97lbs 44kg / 97lbs
Temperature ranges:
For operation
Storage
Safety class
*(depending
**260V AC CB
on regulation of respective country)
0 C to + 60 C
-20 C to + 70 C
IP40
0 C to + 60 C
-20 C to + 70 C
IP40
2 1
2 1
Programming Buttons
Power Plug
LED
Low Voltage Switch
Connections
DIP Switch
Special Function Socket
SG 9020 - 9023
(90-250V AC/
260V AC CB)
SG 9030 - 9033
(24V DC)
