Shutdown = 30nA
10ms @ 2mA
5ms @ 1.8mA
5.5ms
@
2mA
POR=1ms @ 1.25mA
Reg. inrush = 5μs @ 2mA
Power Up Configuration
RX Chain calibration
400μs @ 10mA
Standby = 50nA

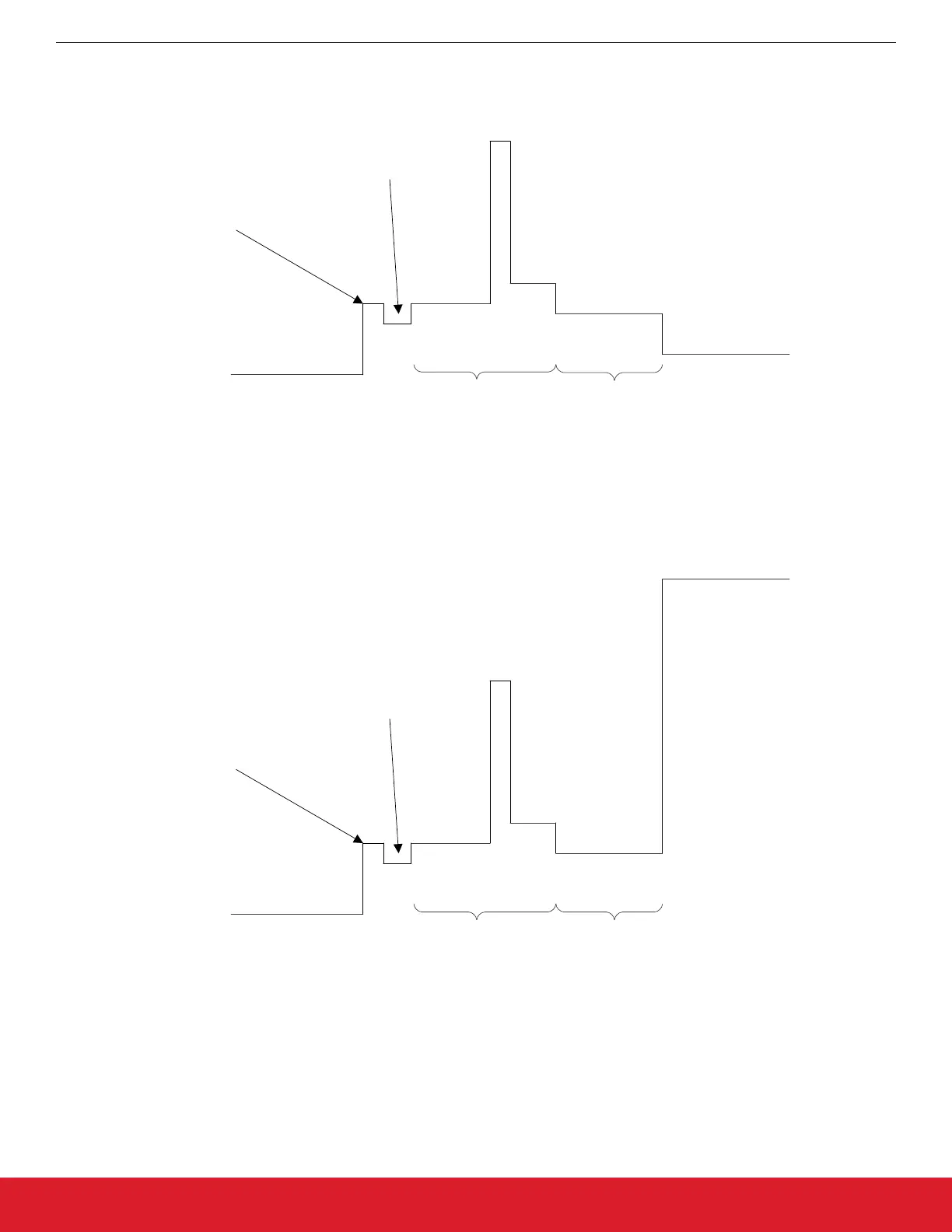

Figure 5.4. Supply Current versus Time Diagram from Shutdown to Standby State
Shutdown = 30nA
10ms @ 2mA
5ms @ 1.8mA
5.5ms
@
2mA
POR=1ms @ 1.25mA
Reg. inrush = 5μs @ 2mA
Power Up Configuration
RX Chain calibration
400μs @ 10mA
TX = 18mA
Figure 5.5. Supply Current versus Time Diagram from Shutdown to TX State
AN954: Programming Guide for EFM8 and EZRadio ®
Radio Initialization
