14MultiXLNX2.doc Page 1 Latest update: 28 Jan –03

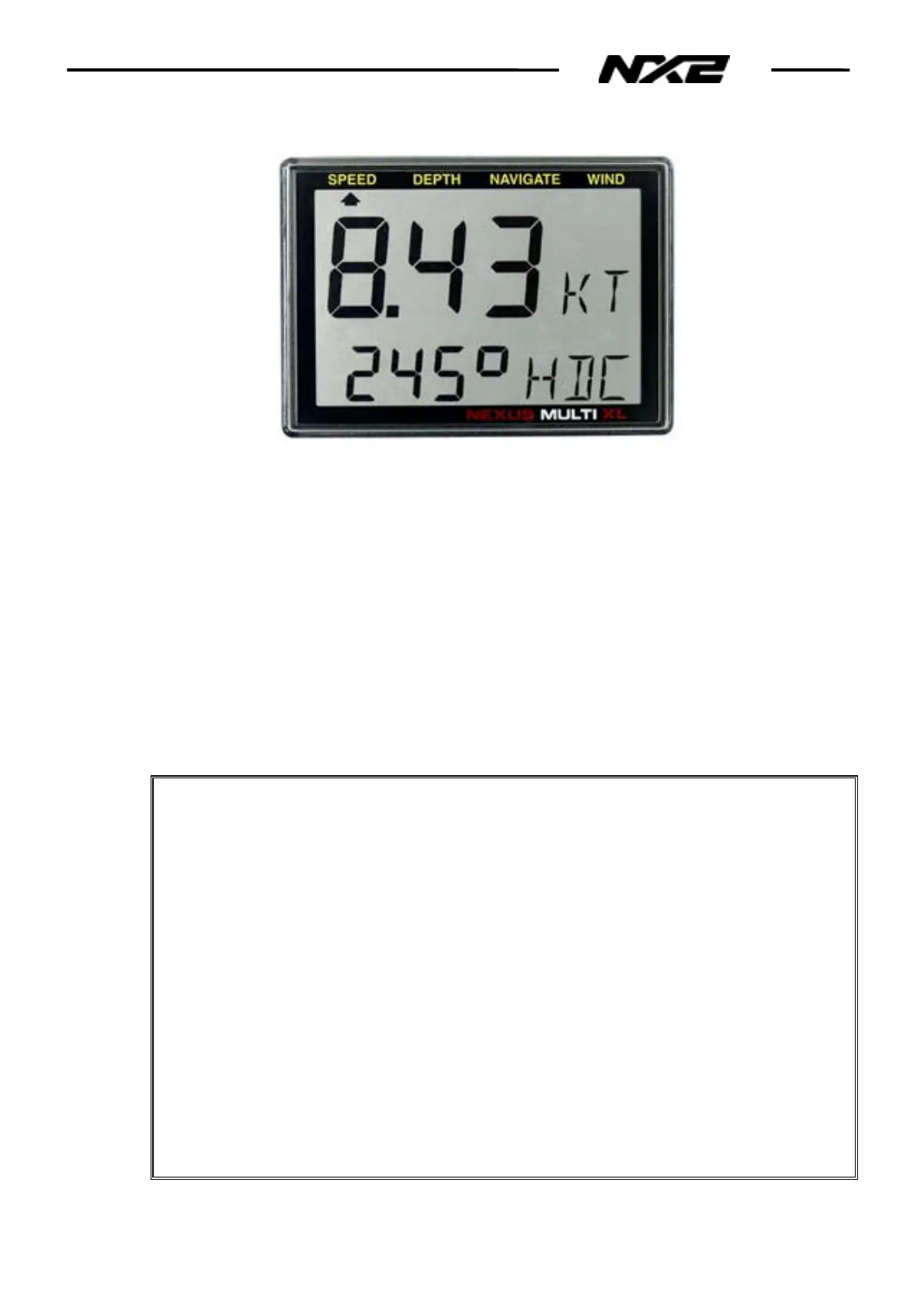

14. MULTI XL INSTRUMENT
NX2 Multi XL is a enlarged Multi function instrument that displays a main function in
40 mm high figures and a sub-function in 22 mm.
It is easy to ”customise” a favourite combination of functions, by using the unique
method to move, copy and lock a sub-function.
This is done from a NX2 Multi Control, Remote Control or Multi Center Instrument.
The instruments large display gives a very good viewing possibilities from any angle,
even in bright sunlight. The display have red back lighting which can be set to three
different lighting levels.
Service measures
Silva NX2 instrument series is build according to IP68/IP66 standard which
means that the instruments are sealed and can not be opened.
The basic service measures on Multi XL instruments are based on Faultfinding,
see §5, replacing defect units according to the NX2 Replacement system.
Technical specifications
Dimensions:
Multi XL Instrument: 110 x 154 x 23 mm
(4.3 x 6.1x 0,9 inch)
Instrument cable:
8 m (26 ft)
Power supply:
12 V DC (10 - 16 V). The instruments are polarity protected.
Power
consumption at 12 V:
Multi XL instrument: 6 mA at 12 V=0,07 W
with maximum lighting: 56 mA at 12 V=0,7 W
Temperature range:
Storage: -30° to +80°C (-22° to +176°F)
Operation: -10° to +70°C (14° to +158°F)
Weight:
410 gram (14,4 oz)
Enclosure:
Water proof acc. to IP 68/IP66
CE Approval:
The products conform to the EMC requirements for
immunity and emission according to EN 50 081-1.
