14

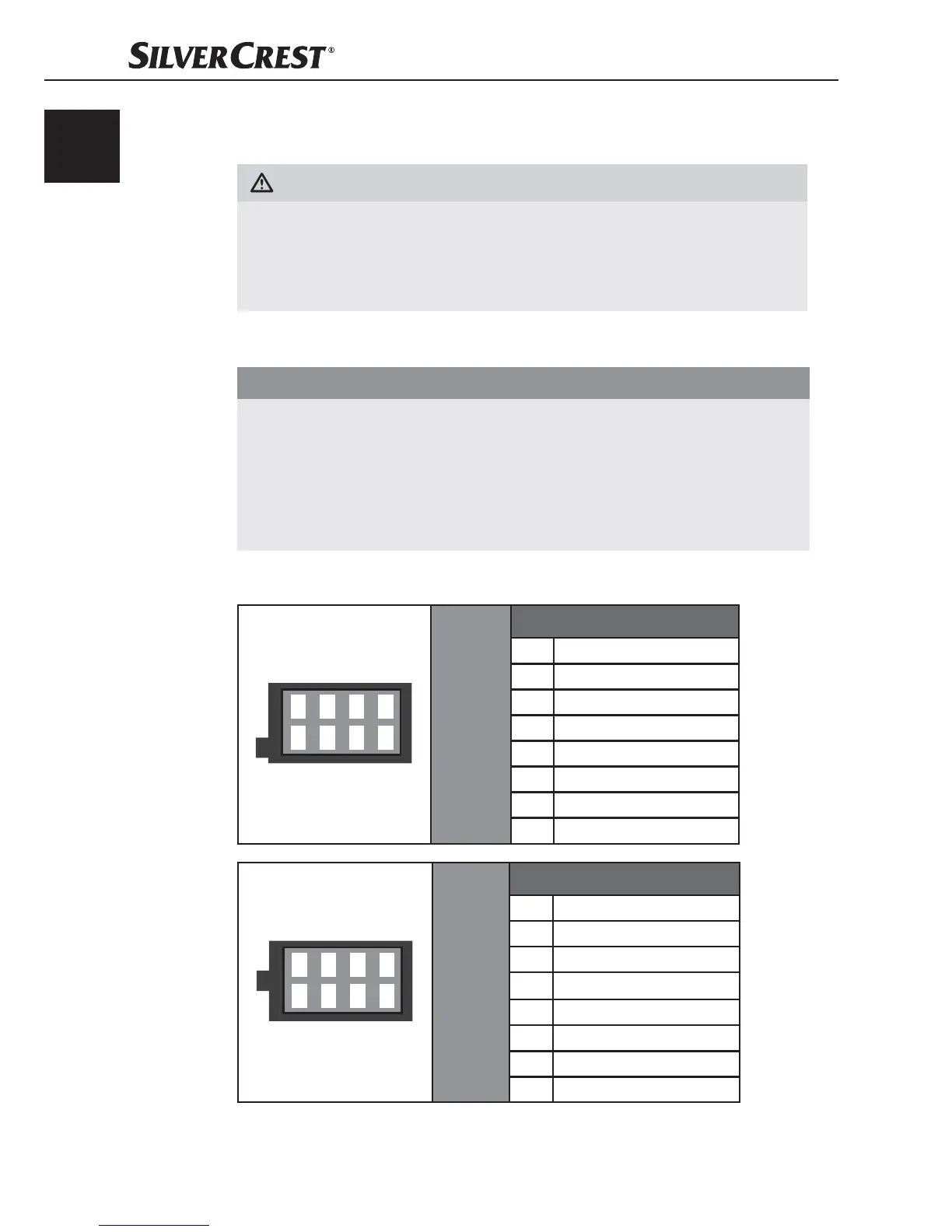

Installation
MP3/CD Car Radio KH 2382
GB
Installation
WARNING
With the installation of the device damage can occur!
If possible have the device installed by a qualifi ed technician.
If you want to install the device yourself, for safe and fl awless operation
of the device follow the instructions for connection and installation.
Connection
IMPORTANT
The use of incorrect connections can lead to damage to the
device.
F
or installation use the device's ISO connections. The vehicle specifi c ISO
adapter that you may possibly require can be obtained from a specialist
establishment, from a local dealer or from the store's technical department.
When using other connection types the warranty becomes void!
Confi guration of the ISO connections
1357
2468
ISO A
Confi guration
1 unconfi gured
2 unconfi
gured
3 unconfi gured
4 Permanent positive
5 Antenna power
6 unconfi gured
7 12 V (Ignition positive)
8 Minus (-)
1357
2468
ISO B
Confi guration
1 Rear right +
2R
ear right -
3 Front right +
4 Front right -
5 Front left +
6 Front left -
7 Rear left +
8 Rear left -
