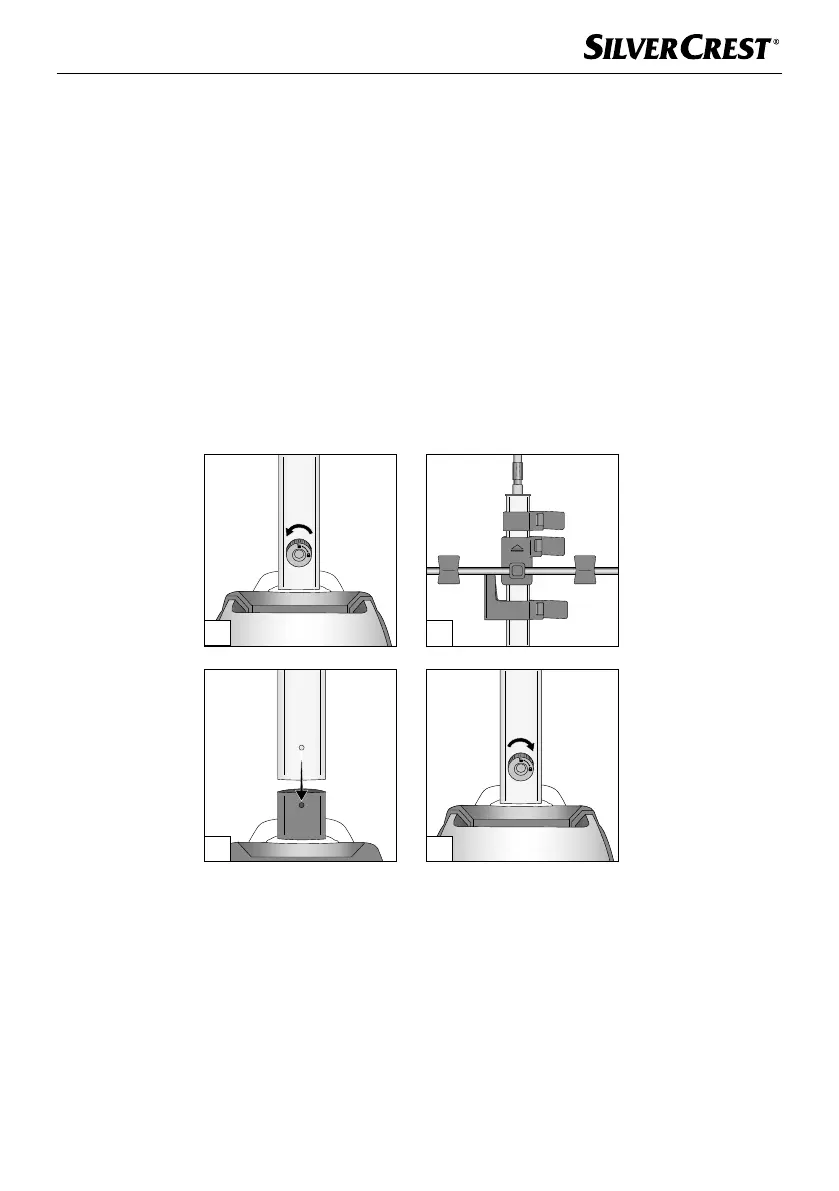

1) Unscrew and remove the fixing screw e from the telescopic shaft q, which is
located on the appliance base
z (fig. A).
2) Hold the telescopic shaft
q so that the power cable retainer 8 is on the
left side. Check if the three locking clips 6 on the telescopic shaft q are
unlocked (fig. B).
3) Insert the telescopic shaft
q into the appliance base z and press it down
until the holes of the telescopic shaft
q and the appliance base z are at the
same level. Reinsert the fixing screw
e (fig. C). If the holes are not flush, slide
the telescopic shaft
q up or down slightly until the holes are aligned with
each other.
4) Screw the fixing screw
e of the telescopic shaft q back into the shaft fully,
so that the telescopic shaft q is firmly attached to the appliance base z
(fig. D).
5) Insert the integrated clothes hanger
3 vertically into the top of the telescopic
shaft q and lock the clip on the integrated clothes hanger 3 (fig. E).
6) Adjust the telescopic shaft
q to the maximum height by pulling it upwards
and locking the locking clips 6 (fig. F and G).
7) Attach the steam head
1 to the steam head mount 2 (fig. H).
A
B
C D
