Silverline 633488 - Left Hand Bolt Slots; Left Hand Female Bolt Slots; Left Hand Male Bolt Slots; Left Hand Male Cut

Worktop Jig 633488
5
silverlinetools.com
Left Hand Female Bolt Slots
• Placetheworktopfacedown
• PlacethejigfacedownwithtwoplasticpegsinthecountersunkMalePegHoles(5)whichare
indicatedbyan‘M’
• PlacetheremainingtwopegsintheBoltPegHoles(7)whichareindicatedbya'B'

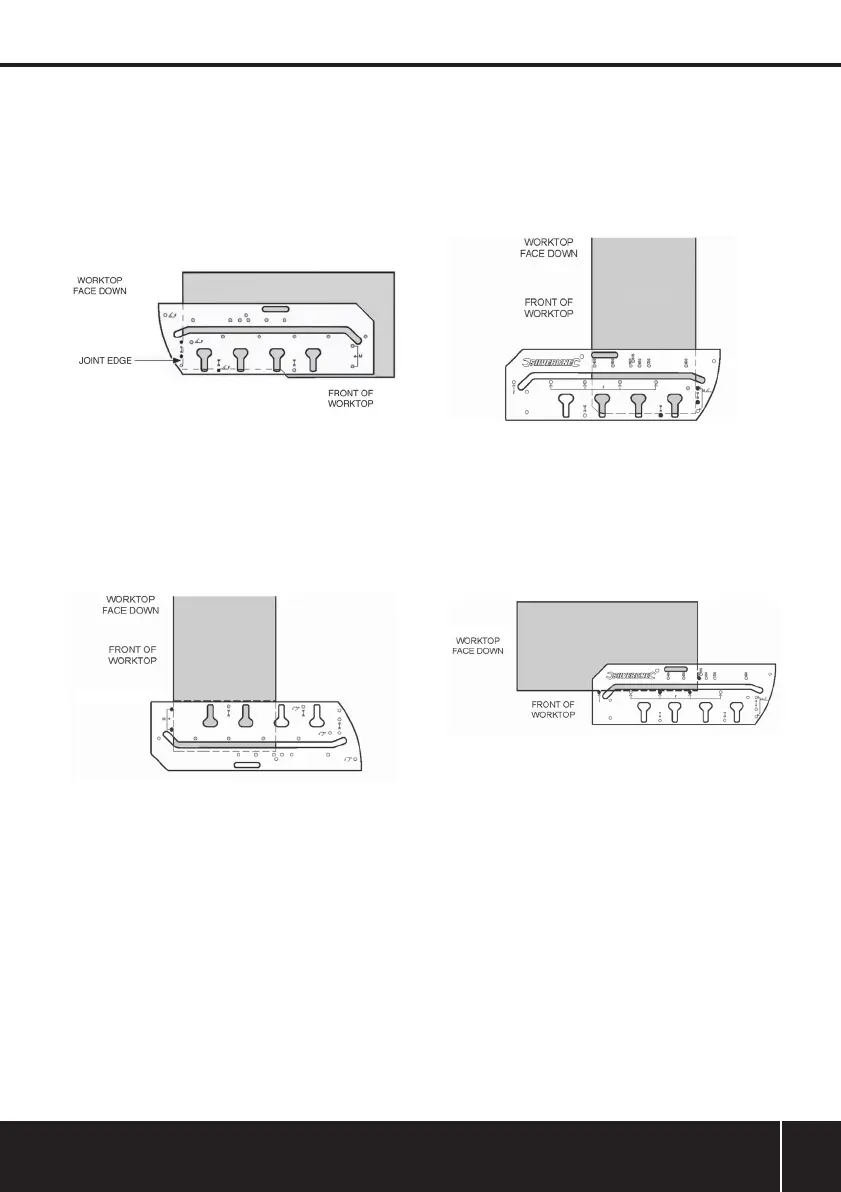

• Positionthejigovertheworktopasshown,beforesecuringthejigintopositionwithG-clamps
• Theboltslotsneedtobecuttoadepthof20mm.Donotexceed8mmcuttingdepthwith
eachcut
• Followthepattern,makeoneextrapassacrossthecuttocleanoffexcessmaterial
FEMALE
Left Hand Male Cut
• Placetheworktopfacedown
• PlacethejigfacedownwithtwoplasticpegsinthecountersunkMalePegHoles(5)andpushthe
jigrmlyagainstthepostformededge
NOTE: Beforeclamping,ensurethejigispositionedcorrectlysothattheworktopwillnotbecut
tooshortforthejoint.
• OncethejigisinpositionsecurermlywithG-clamps
• Tostart,placetherouteronthelefthandsideofthejig
• Onlycuttoan8mmdepthwitheachpass.Repeattheprocessuntilthecutiscomplete
• Makeoneextrapassacrossthecuttocleanoffexcessmaterial
MALE
Left Hand Male Bolt Slots
• Keeptheworktopfacedown
• PlacethejigfaceupwithtwoplasticpegsinthecountersunkMalePegHoles(5)
• PlacetheremainingtwopegsintheBoltPegHoles(7)
• Positionthejigovertheworktop,beforesecuringthejiginpositionwithG-clamps
• Theboltslotsneedtobecuttoadepthof20mm.Donotexceed8mmcuttingdepthwith
eachcut
• Followthepattern,removinganyexcessmaterialbyperforminganalcut
MALE
90˚ Right Hand Joint
Right Hand Female Cut
• Placetheworktopfacedownwiththepost-formed(front)edgefacingyou
• Withthejigfacingup,placetwoplasticpegsinthecountersunkFemalePegHoles(4)which
areindicatedbyan‘F’
• Placeanotherpegintherelevanthole.Thiswilldependonthewidthoftheworktopbeingused
• Positionthejigovertheworktopedge(asshown),beforesecuringthejiginpositionwith
G-clamps
• Placetherouteronthelefthandside.Alwayscutfromlefttoright
FEMALE
• Onlycuttoan8mmdepthwitheachpass.Repeattheprocessuntilthecutiscomplete
• Makeoneextrapassacrossthecuttocleanoffexcessmaterial
