Component restrictions PSU and 5.25” device restrictions
The total thickness of the full-height graphics card + the height of the low-profile expansion card equates to 142mm
I/O panel installed at the rear
The radiator compatibility allows three combinations between
280mm, 240mm or 120mm
Graphics card and fan/radiator total thickness cannot exceed
438mm
When installing a 280mm radiator, please install the fan(s)
between the rear chassis panel and the radiator to avoid
interference with the I/O panel
Maximum length limitation for radiator
CPU cooler height limitations
Maximum height with expansion card holder: 114mm
Maximum height without expansion card holder: 148mm
CPU cooler is allowed to protrude 7mm over the edge of the
motherboard
When 2.5” SSD mounting bracket is installed on the side, the
distance between the CPU cooler and the edge of the
motherboard must be greater than 5mm
The measurements from the front to the rear is 455mm
Considering the cable management requirements, it is recommended
that the length of the PSU and 5.25” device should not exceed 430mm

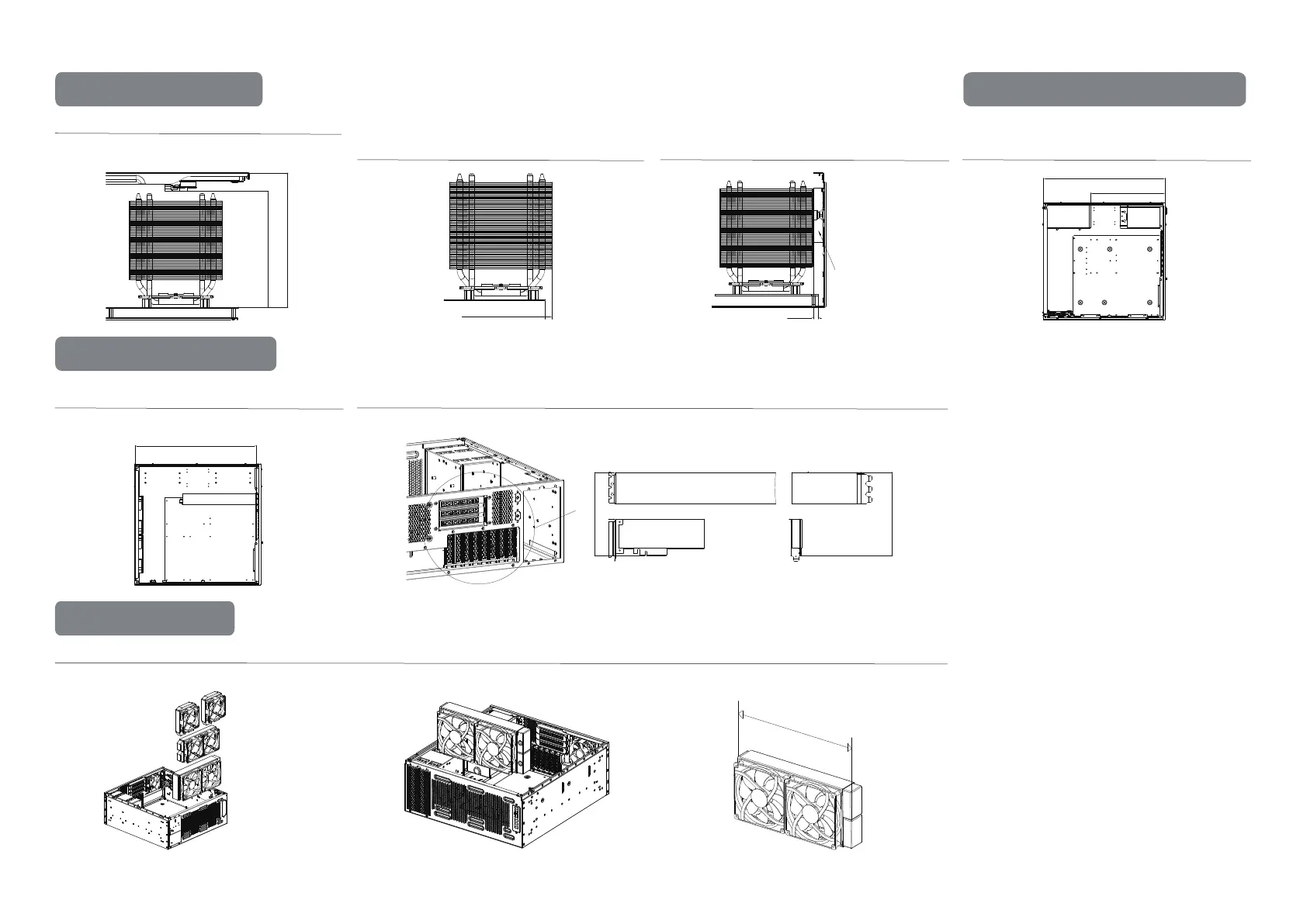

Graphics card restrictions
Radiator restrictions
4
114 mm
Maximum： 148mm
Maximum： 7mm
5mm
2.5"SSD
or
2.5"bracket
5.25"Device
Power
Supply
455mm
254mm
Graphics card
Maximum 438mm
Low-profile expansion card on the bottom
Full-height graphics card on top
142mm
142mm
120mm radiator x2
240mm radiator x1
280mm radiator x1
Max. 333mm
