SYSTEM OPERATIONS-21
AC ELECTRICAL SYSTEM
The AC Electrical System is a three-wire grounded
system powered by either the Generator (if so
equipped) or Shore Power.
Remember, if the Generator or the Air Condition-
ing was not selected as an option, there will be no
panels.
Generator/Shore Power Slide Switch

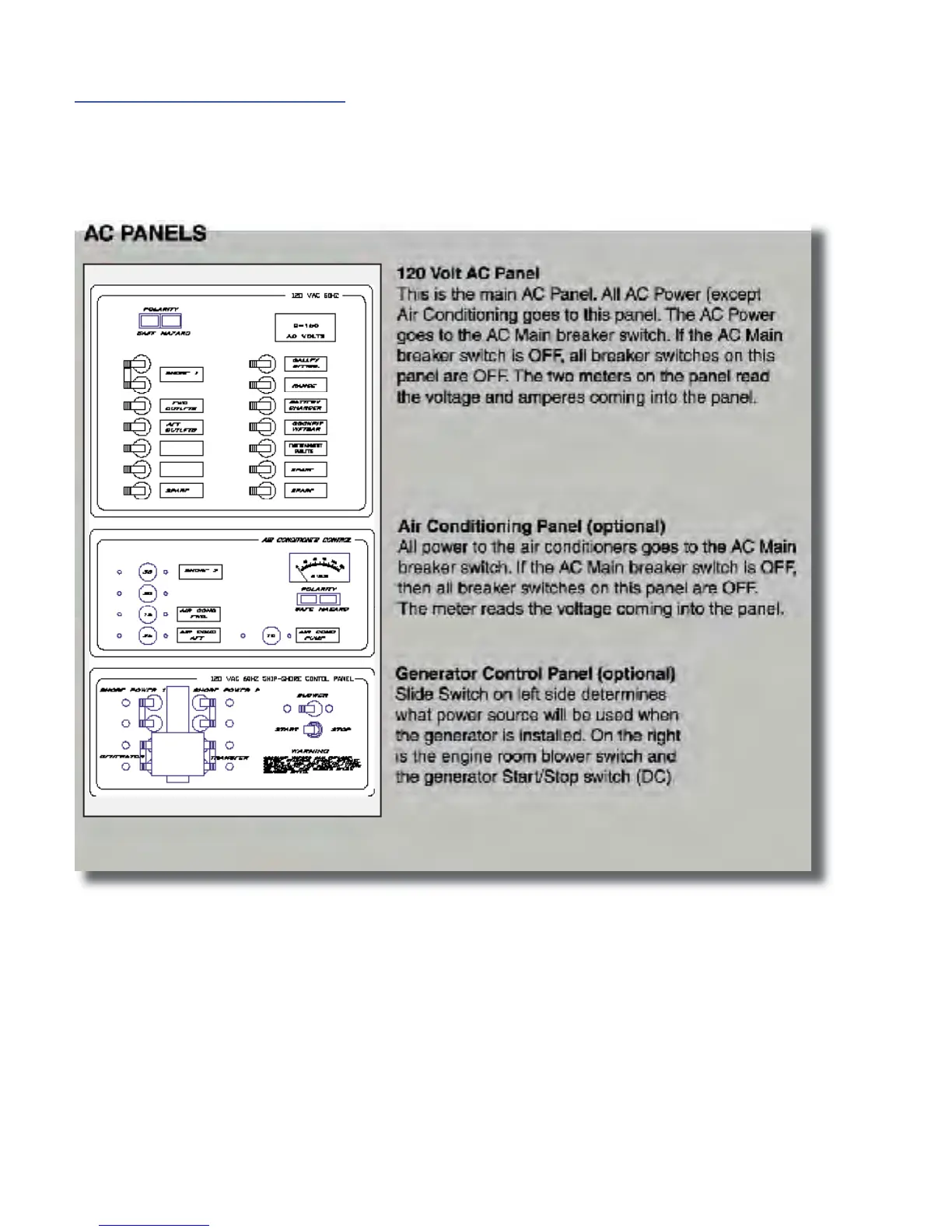

The Generator section of your AC/DC Panel has a
Slide Switch. This slide allows only one source of
AC Current to enter your AC Panels. This switch will
allow the source of AC Power to come from either the
Generator or the Shore Hook-Ups. The Panel has
four (4) sets of breaker switches. The four (4) sets
are: Generator, Transfer, Shore Power 1, and Shore
Power 2. Each set of switches will be described on
the following page.
