SYSTEM OPERATIONS-22
Generator:
The Generator set of switches have the
power from the Generator coming into these
switches then going out to the 120 Volt AC
Panel. The power goes directly to the AC
Main Switch at the 120 Volt AC Main Sec-
tion.
Transfer:
This set of switches get their power from the
Generator. The power then goes from here
to the AC Main Breaker Switch at the Air
Conditioning Section of the AC Panel.
NOTE: Both the Generator and the Air Con-
ditioning is an option. You may not have
either on your boat.
Shore Power 1:
This set of switches gets its power from
the Upper Shore Power Hook-Up located
in the Cockpit Storage Compartment. The
power then goes from here to the AC Main
Breaker Switch at the 120 Volt AC Section

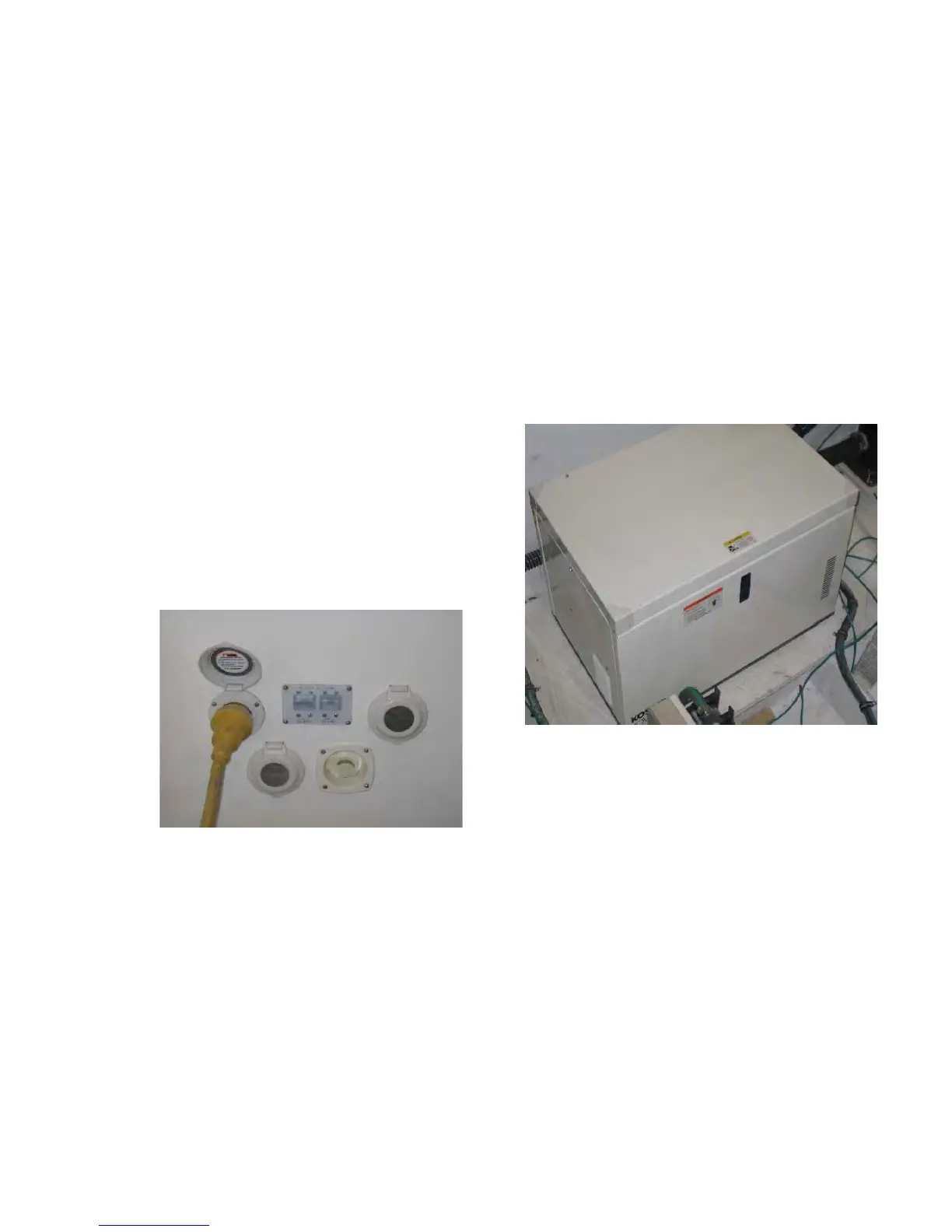

of the AC Panel. The photo below shows
the Shore Power Hook-Up on the port side
of the Cockpit.
The Shore Power 1 Hook-Up is the Upper
Hook-Up. The Shore Power 2 Hook-Up is
below the Shore Power 1 Hook-Up.
The breakers for each are to the right of the
Hook-Ups.
Shore Hook-Up 2:
The power to this set of switches comes from
the shore Hook-Up at the Cockpit Storage
Compartment. The power goes from here
directly to the AC Main Breaker Switch at the
Air Conditioning Section of the AC Panel.
NOTE: Shore Power 2 is an optional set of
switches for your Air Conditioning System.
If you did not choose Air Conditioning as
an option, there is no need for the sets of
switches on the right-hand side (Transfer
and Shore Hook-Up 2).
If there is no Generator, Shore Hook-Up 1 goes
directly to the AC Main Switch at the 120 Volt AC
Section of the AC Panel and Shore Hook-Up 2 goes
directly to the AC Main Switch at the Air Conditioning
section of the AC Panel.
GENERATOR (OPTIONAL)
The Generator is located below the Cockpit fl oor.
The photo below shows the Generator.
There is a breaker for the Generator power on the
Generator.
