• Route Health – The Silvus StreamScape Utility will alert the user when too many packets are being
routed through a single node. In such cases, a node will change from green to yellow to red as the
packet queue increases (see ‘1132_4.108’ and ‘1131_4.107’in Figure 55). This will allow the user
to recognize the issue and rearrange the network accordingly. Table below also shows the values
for each scenario.
`

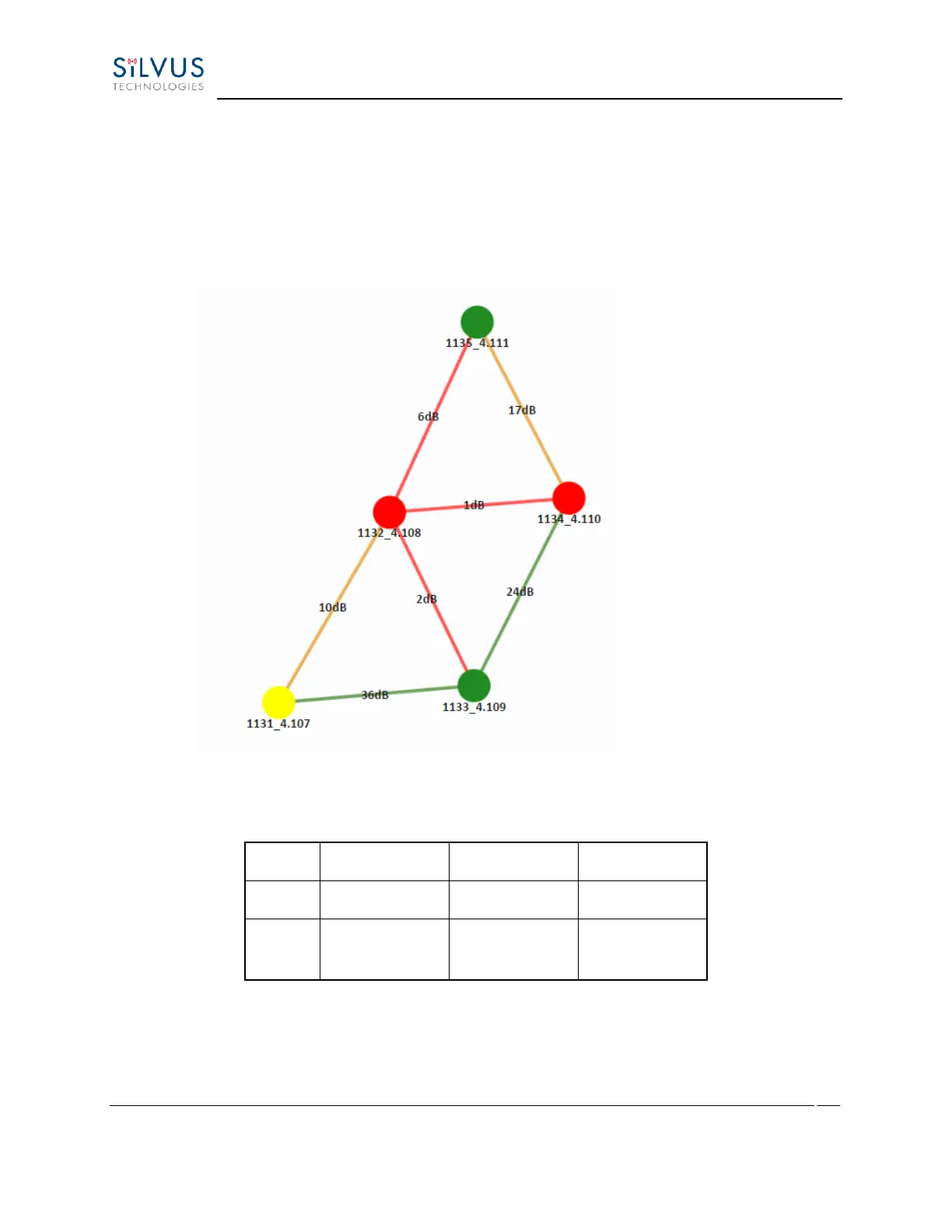

Figure 55 Example Network Topology
Green
Orange
Red
Link
>20dB
10-20dB
<10dB
Node
<10 Packets in
Queue
10-100 Packets
in Queue
>100 Packets in
Queue
Table 29 Color Coding for Links and Nodes
