4.2 Connector Pinouts
4.2.1 SC4400E Pinouts
SC4400E Power/Ethernet/Serial Connector Pinout
Enclosure PWR/COMM
(GK0YAR-P10UC00-000L)
Signal
Switchcraft Pinout
(EN3C2F16X)
1
5V OUT (For External GPS Puck)
NC
2
GND IN
2
3
VCC IN
1
4
ETH0_MX2N
1
5
ETH0_MX2P
1
6
ETH0_MX1P
NC
7
RS232_RXD
NC
8
RS232_TXD
NC
9
GND
NC
10
ETH0_MX1N
NC

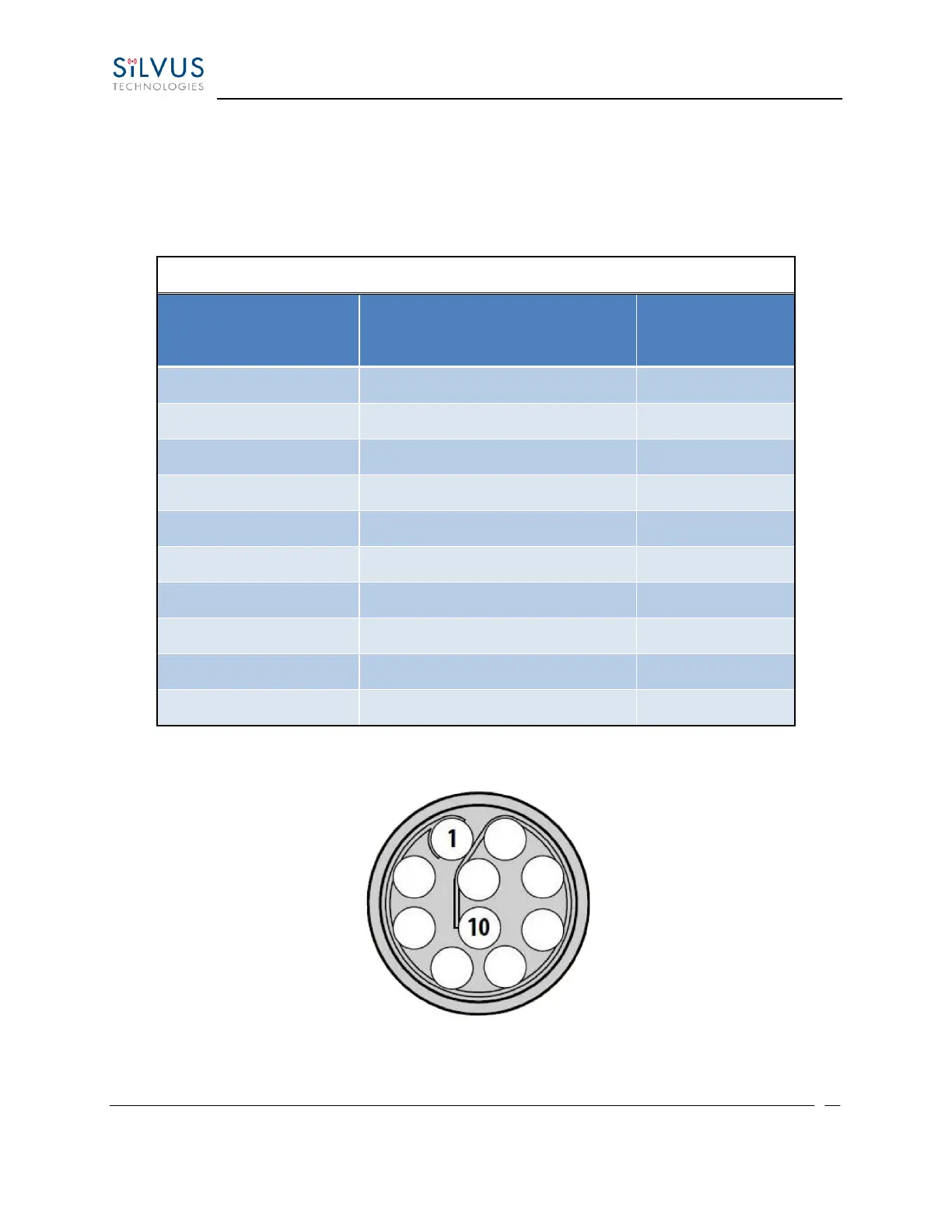

Table 2 SC4400E Power/Ethernet/Serial Connector Pinout
Figure 6 SC4400E Power (Optional)/Serial/Ethernet Pinout Diagram (Cable Side)
