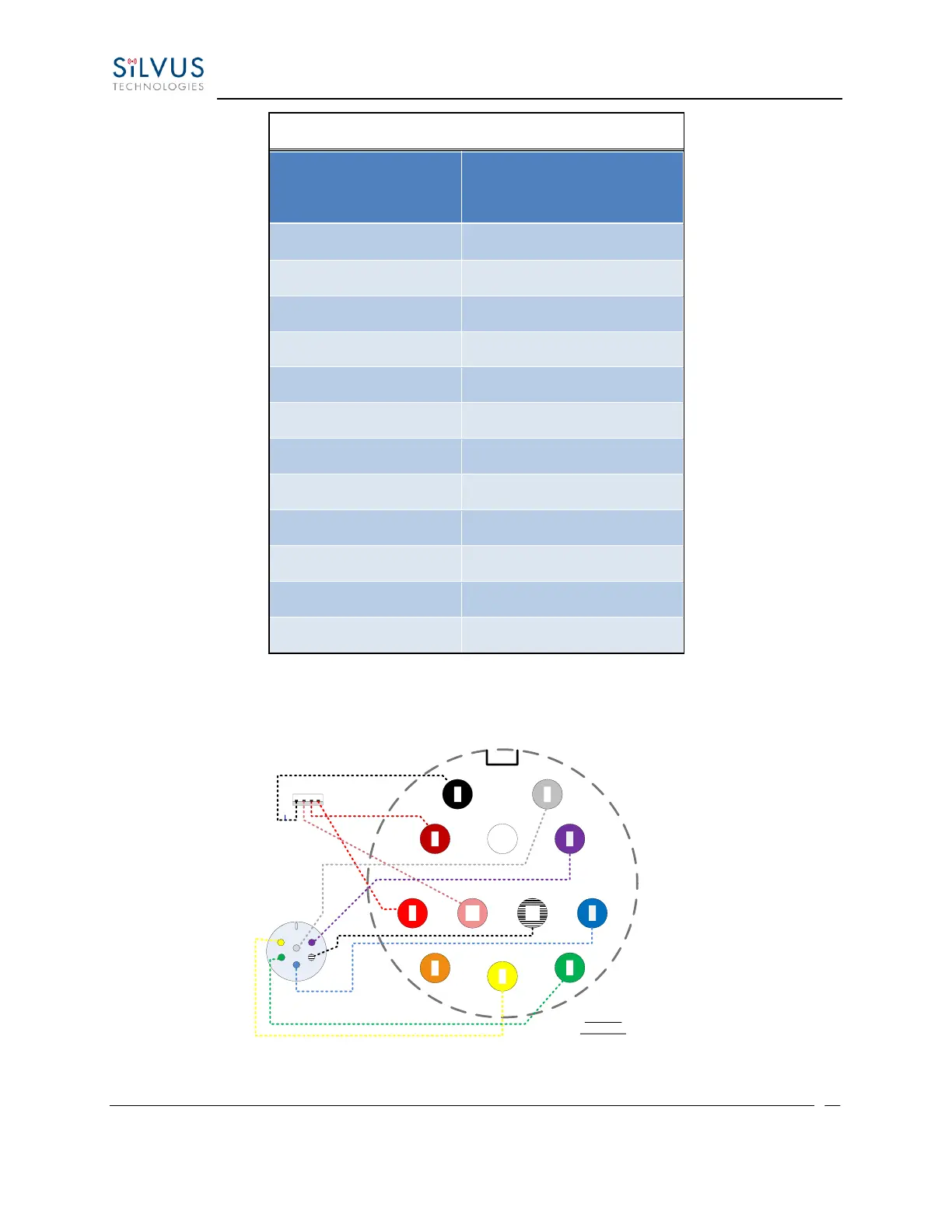

Silvus StreamCaster SC4400E - Figure 17 SC3822 USB;GPIO Pinout Diagram (Cable Side); Table 20 SC3822 USB;GPIO Connector Pinout

158 pages

Save Page as PDF

To Next Page

To Previous Page

StreamCaster MIMO Radio User Manual 4/30/19

10017C000 Silvus Technologies Confidential Page

SC3822 USB/GPIO Connector Pinout

Enclosure USB/GPIO

(LF10WBRB-12SD)

Signal

USB_GND

USB_D-

USB_5V

GPIO1 (PA Enable 3.3V)

GPIO2

GPIO3

3.3V

GND

USB_Sense

USB_D+

GPIO4

Table 20 SC3822 USB/GPIO Connector Pinout

1 9

102

4 3 2 1

USB_Ground

USB_Data-

USB_5V

USB_Data+

GPIO1 (PA

Enable 3.3V)

GPIO4

GND

3.3V

GPIO3

GPIO2

USB_Sense

USB

SC 3822

USB/GPIO

GPIO

Black/White

Figure 17 SC3822 USB/GPIO Pinout Diagram (Cable Side)
