SC3822:
Environmental
Standard Temperature
Extended Temperature
• Operating Temp.
-40° - +55° C
-40° - +65° C
• IP Rating
(Ingress Protection)
IP-67 (Dust / Immersion in water up to 1m)*
*Must have all connectors mated and use IP67 or better cables/antennas
Mechanical – Chassis
Standard
Extended Temperature
• Dimensions
4.4” x 3.4” x 1.3”
4.4” x 3.4” x 2.0”
• Weight
1.0 lbs. (0.45 kg/16 oz)
1.2 lbs. (0.54 kg/19.2 oz)
• Color
a. Black anodized
b. FED-STD-595B-34094 (green 383)
• Mounting
4-hole mounting patterns (Through-hole)
Connectors
• RF
SMA (f) (2 each)
• Data / Control
Ethernet (Gigabit for OEM, 100 Base-T for Enclosed), RS232, USB
• Power
Hirose LF Series Circular Connector (Front Panel)
Samtec QSH (Expansion)
Controls and Indicators
• Status Indicator
Tri-Color LED
Power Requirements
• Voltage
9 – 32 VDC
• Consumption
6W – 16W (Duty Cycle and Frequency Dependent)
24.5 W – 80% Tx Duty Cycle
Mechanical – OEM Board Stack
• Dimensions
3.3” x 2.9” x 0.5” L x W x H
• Weight
3 oz
• RF Connector
SMP (m)

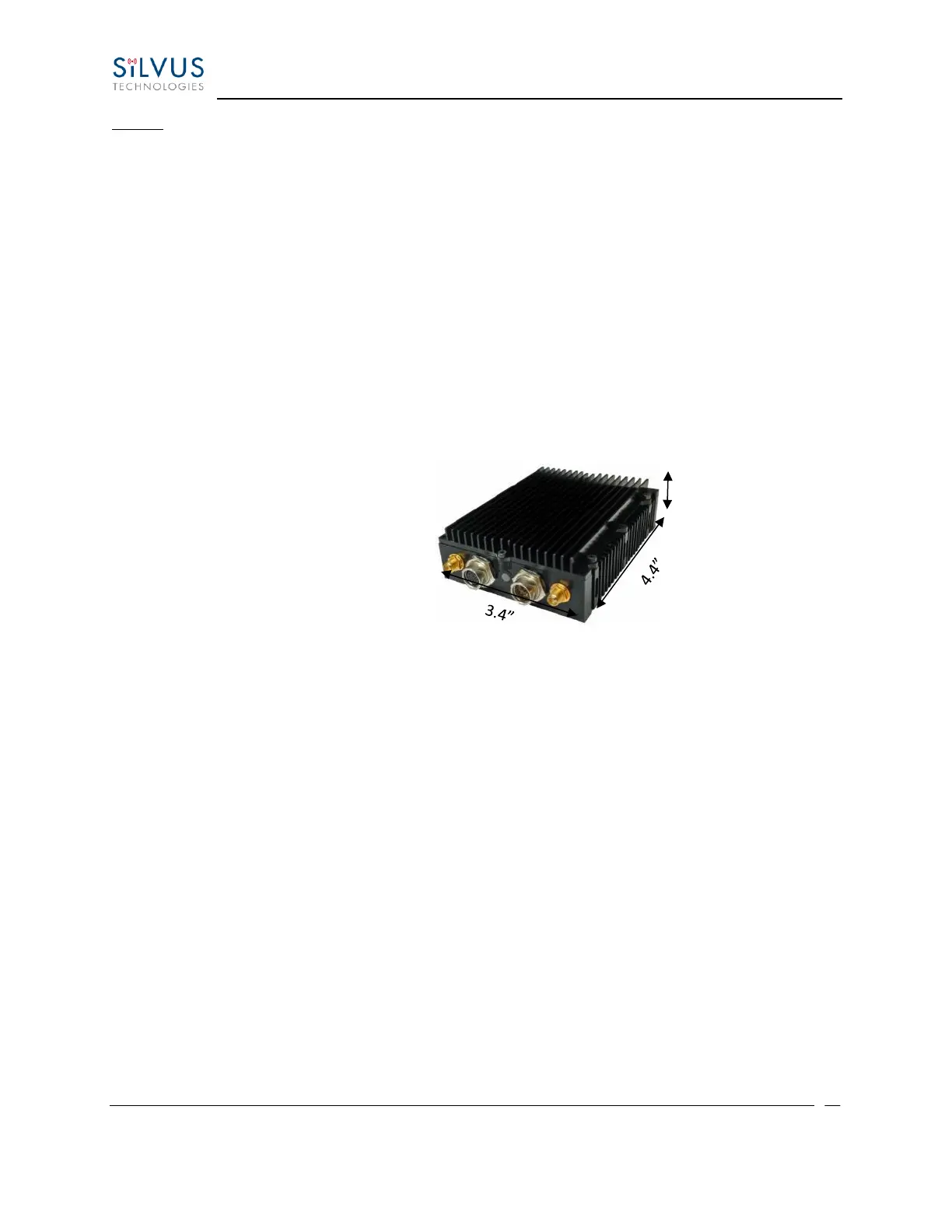

*Standard Temperature enclosure shown.
Extended Temp has height of 2”.
1.3”
Inch
