Smart Machine Smart Decision
SIM7600E_SIM7600E-H-PCIE_Hardware_Design_V1.00 37 2017-11-23

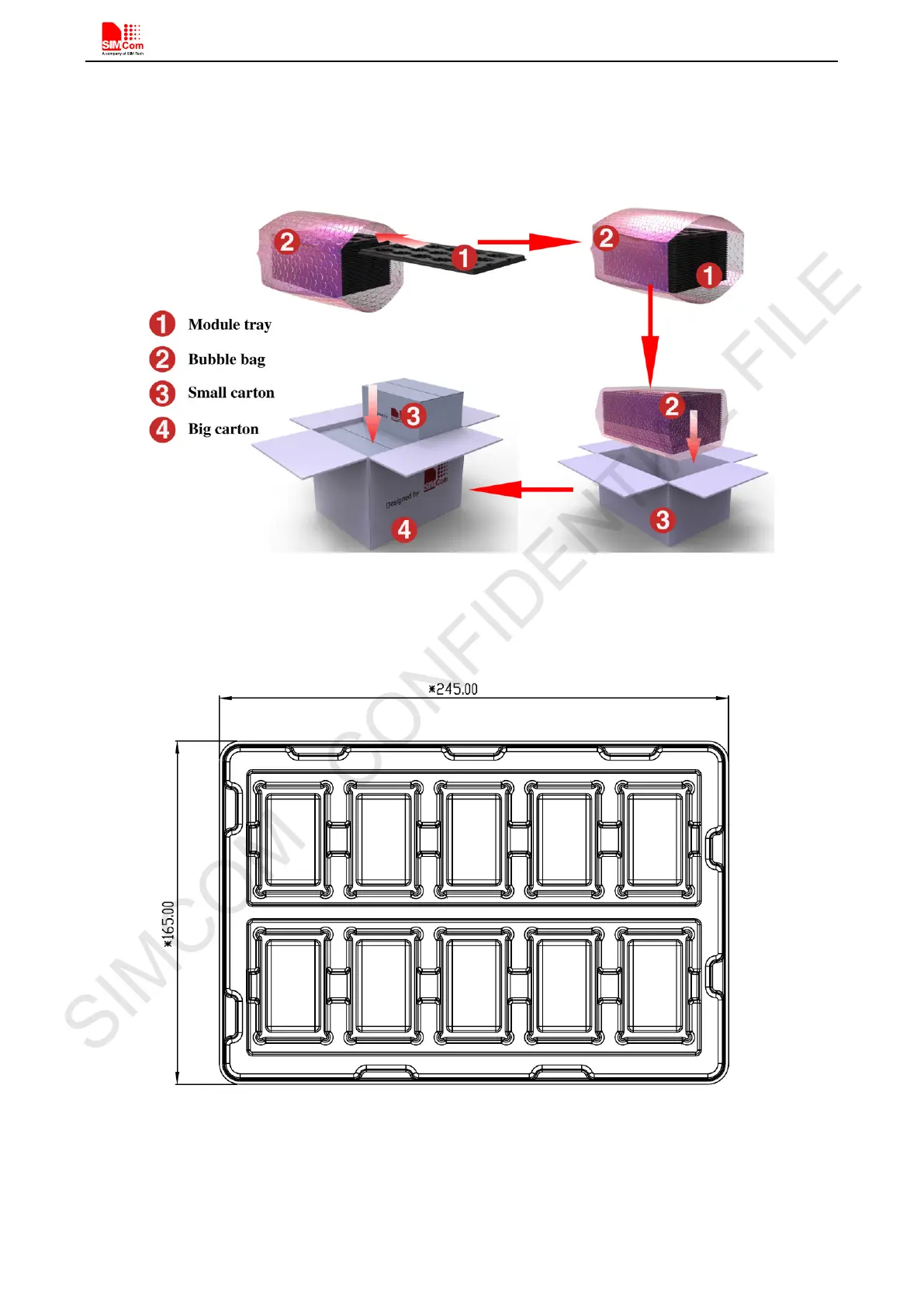

7. Packaging
SIM7600E-PCIE module support tray packaging.
Figure 24: Tray packaging
Module tray drawing:
Figure 25: Tray drawing
SIMCOM CONFIDENTIAL FILE
