IQ POWER CONTROL STATION
WITH SENSOR TECHNOLOGY
5201263 Rev D

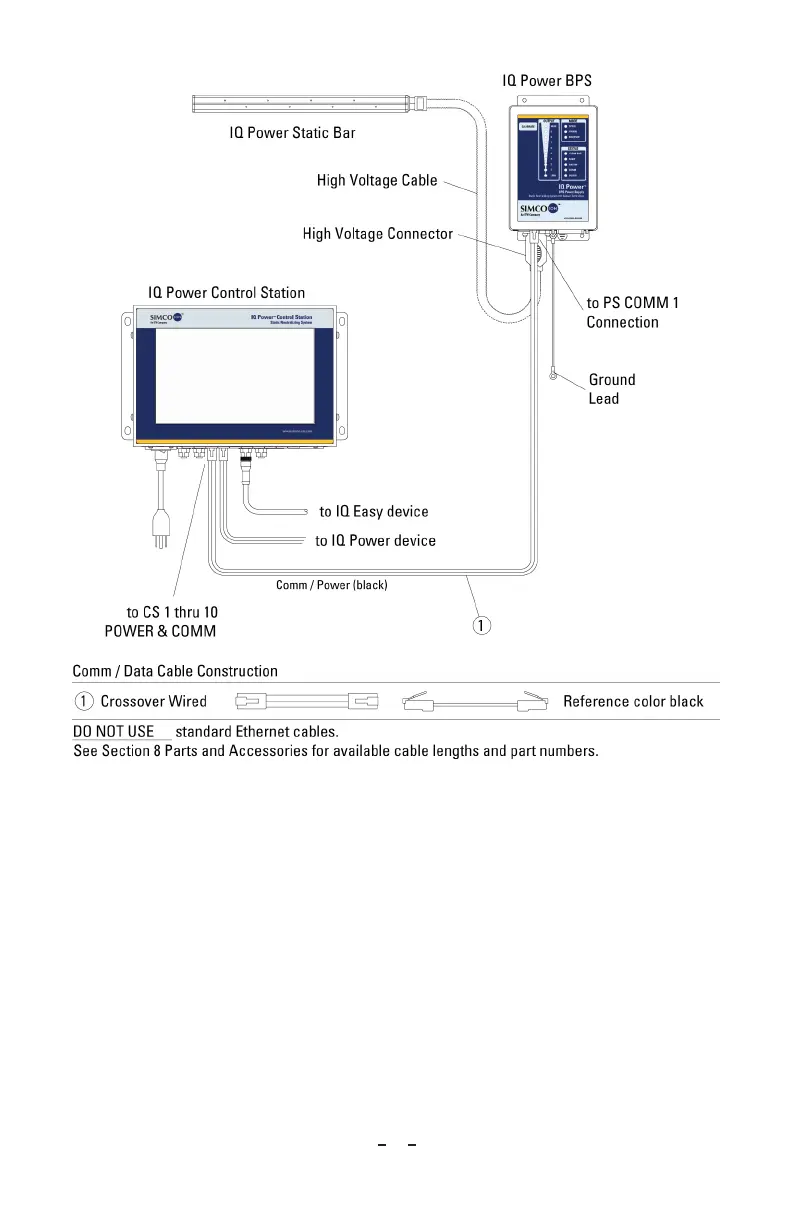

Figure 2. IQ Power Connections (Control Station 1 thru 10 to BPS Power Supply and Bar)
