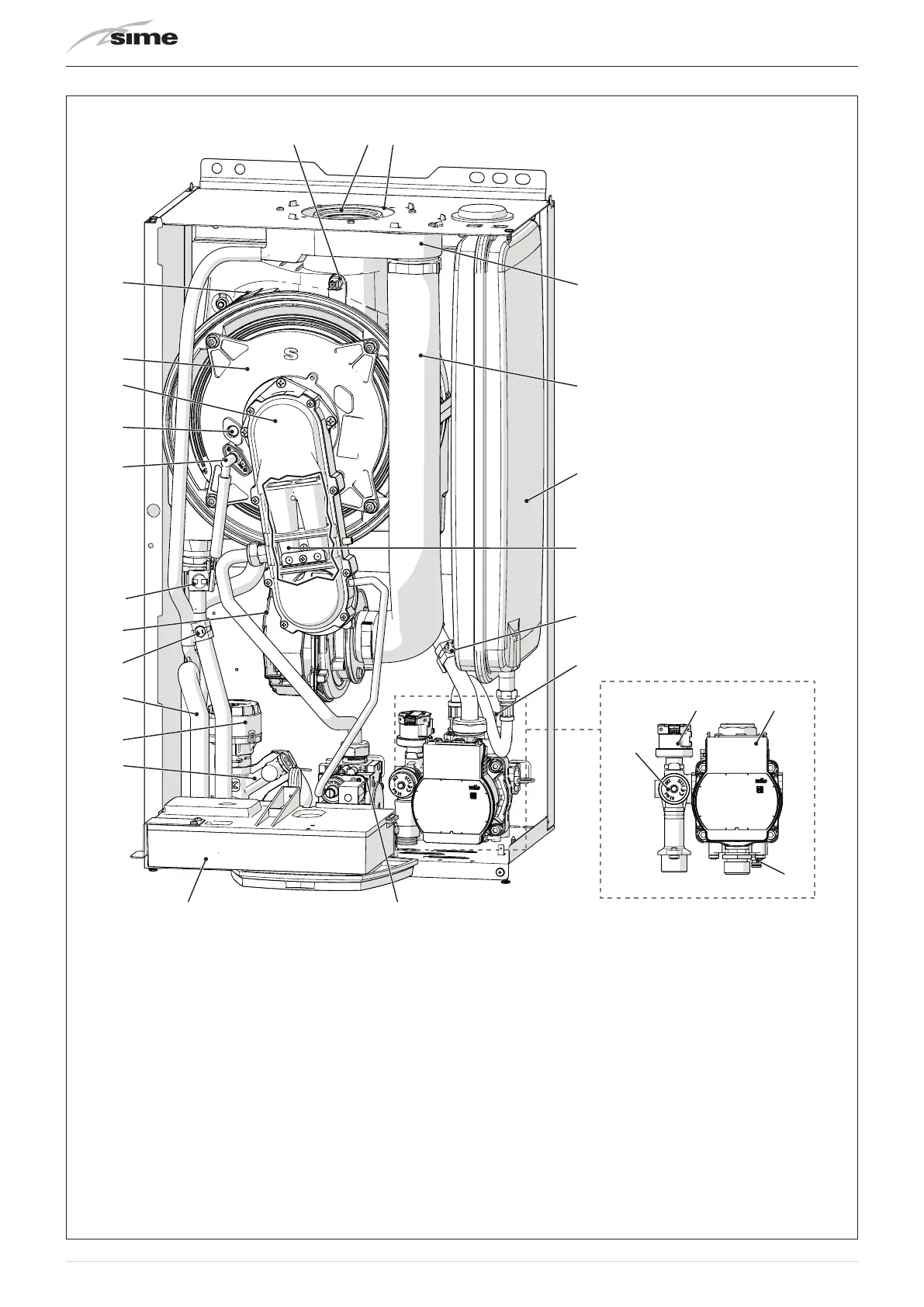

Sime EDEA T - Structure

18
5.4 Structure
20
21
22
23
26
12 13
17
15 16
14
1
2
3
4
5
6
9
10
11
8
7
2425
18
19
1 Heat exchanger
2 Combustion chamber door
3 Air/gas duct
4 Flame viewing window
5 Ignition/detection electrode (EAR)
6 Safety thermostat (TS)
7 Fan (V)
8 Boiler delivery sensor (SMC)
9 Condensate siphon outlet
10 Diverter solenoid valve (EVD)
11 System filling unit
12 Control panel
13 Gas valve
14 Relief valve (FS)
15 Water pressure transducer (TPAC)
16 Pump (PI)
17 Boiler drain
18 Automatic bleed valve
19 Boiler return probe (SRC)
20 Air-gas mixer
21 Expansion vessel (VE)
22 Air inlet pipe
23 Air-smoke chamber
24 Air inlet
25 Smoke outlet duct (CSFU)
26 Exhaust sensor (SF) (SF)
Fig. 12
