6 INSTALLATION
m
CAUTION
The appliance must only be installed by the
Sime
Technical Service or by qualified professionals
who
MUST wear
suitable protective safety equipment.
6.1 Receiving the product
Edea T
appliances are delivered in a single unit protected by
cardboard packaging.

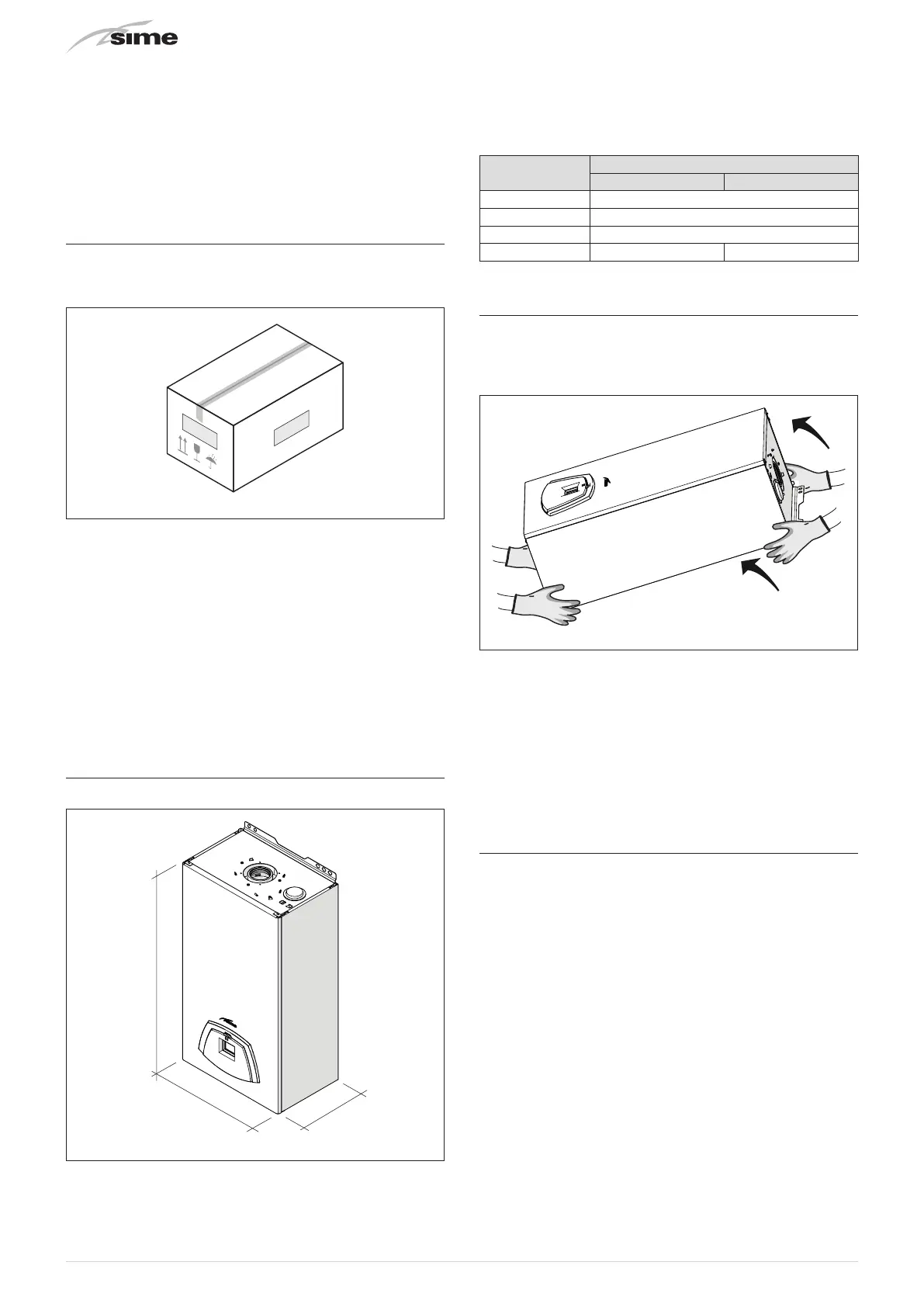

Fig. 18
The plastic bag found inside the packaging contains the fol-
lowing:
– Installation, use and maintenance manual
– Paper template for boiler installation
– Certificate of warranty
– Hydrostatic test certificate
– Hanging Bracket
– Connection pack
d
DO NOT
To leave packaging material around or near children
since it could be dangerous. Dispose of it as pre-
scribed by legislation in force.
6.2 Dimensions and weight
W
D
Fig. 19
Description
Edea T
25 35
W (mm) 400
D (mm) 260 (*)
H (mm) 700
Weight (kg) 27,4 29,9
(*) Without removable panel.
6.3 Handling
Once the packaging has been removed, the appliance is to be
handled manually, tilting it slightly, lifting it and applying pres-
sure in the points indicated in the figure.
Fig. 20
d
DO NOT
To grip the appliance casing. Hold the "solid" parts of
the appliance such as the base and structural frame.
a
WARNING
Use suitable tools and personal protection when
removing the packaging and when handling the ap-
pliance. Observe the maximum weight that can be
lifted per person.
6.4 Ventilation requirements
Detailed recommendations for the air supply are given in BS
5440-2. The following note is given for guidance. It is not nec-
essary to have purpose provided air vents in the room or com-
partment that the appliance is installed.
The minimum temperature of the installation room must NOT
be lower than
-5 °C
.
m
CAUTION
– Before assembling the appliance, the installer
MUST
make sure that the wall supports the weight.
– Remember to consider the space needed in order
to access the safety/adjustment devices and to
carry out maintenance interventions (see Fig. 21).
