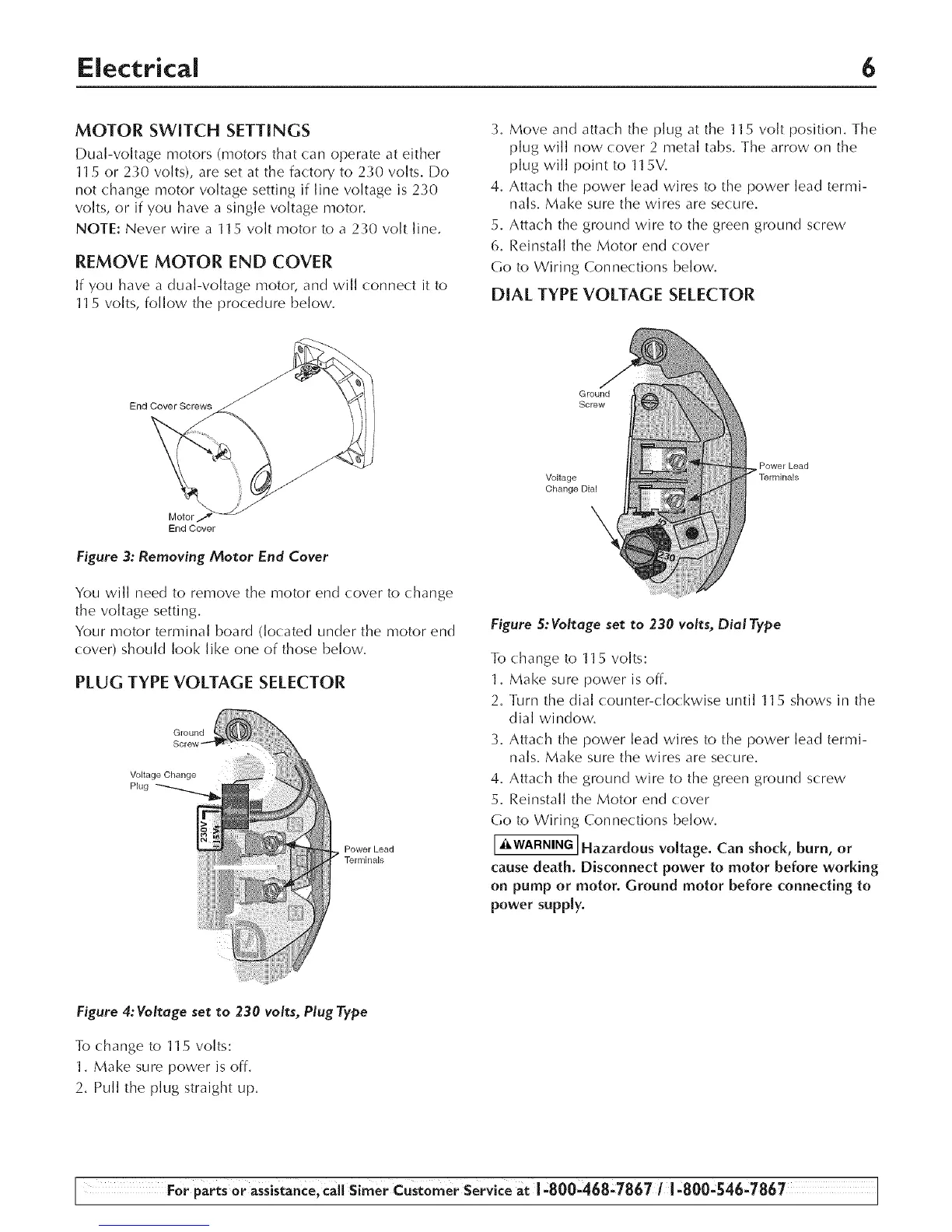

E[ectrka[ 6
MOTOR SWITCH SETTINGS
Dual-voltage motors (motors that can operate at either
115 or 2=;0 volts), are set at the factory to 2_0 volts. Do
not change motor voltage setting if line voltage is 2_()
volts, or if you have a single voltage motor,
NOTE: Never wire a 115 volt motor to a 2_O volt line.
REMOVE MOTOR END COVER
If you have a dual-voltage motor, an(] will conned it to
11.5 volts, follow the procedure below.
3. Move and attach the plug at the 115 volt position. The
plug will now cover 2 metal tabs. The arrow on the
plug will point to 115V.
4, Attach the power lead wires to the power lead termi-
nals. Make sure the wires are secure.
5. Attach the ground wire to the green ground screw
6. Reinstall the Motor end (:over
Go to Wiring Connections below.
DIAL TYPE VOLTAGE SELECTOR
End Cover Screws
Ground
Screw
Motor .-I
End Cover
Figure 3: Removing Motor End Cover
You will need to remove the motor end (:over to change
the voltage setting,
Your motor terminal board (located under the motor end
(:over) should look like one of those below,
PLUG TYPE VOLTAGE SELECTOR
Ground
Sore1&
Voltage Change
Plug
Power Lead
Terminals
Voltage
Change Dial
\
PowerLead
Figure 5: Voltage set to 230 volts, Dial Type
To change to 115 volts:
1. Make sure power is off.
2. Turn the dial counter-clockwise until 115 shows in the
dial window.
L Attach the power lead wires to the power lead termi-
nals. Make sure the wires are secure.
4, Attach the ground wire to the green ground screw
5. Reinstall the Motor end (:over
Go to Wiring Connections below.
I_WARNING lHazardous voltage. Can shock, burn, or
cause death. Disconnect power to motor before working
on pump or motor. Ground motor before connecting to
power supply.
Figure 4: Voltage set to 230 volts, Plug Type
To change to 115 volts:
1. Make sure power is off.
2. Pull the plug straight up.
I For parts or aSSistance'call Sirner Customer service at 1'800468,7867 ! 1-800.5464867 I
