9
CONNECTIONS

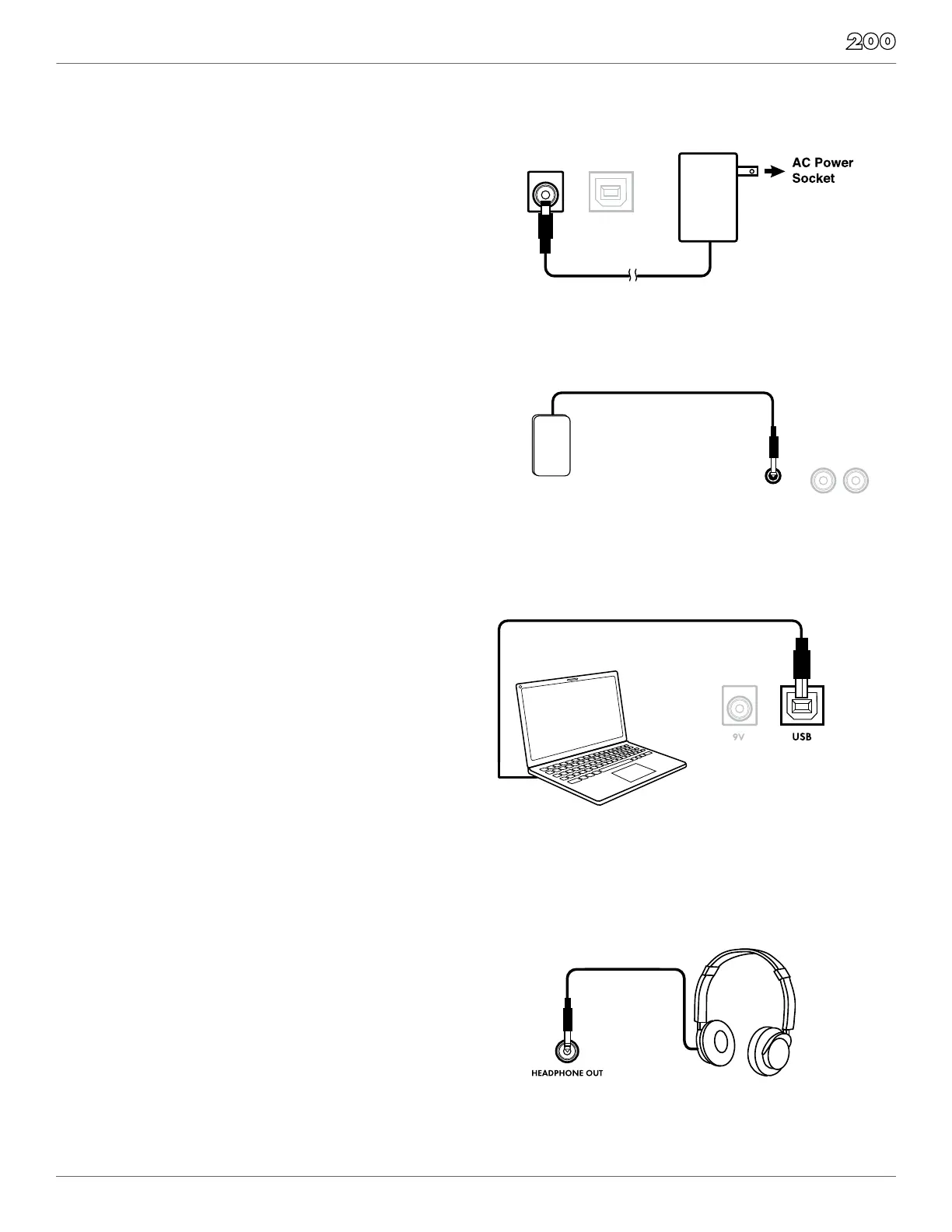

CONNECTING THE POWER SUPPLY
Connect the AC power adapter to a wall socket
as shown in this illustration.
CONNECTING EXTERNAL AUDIO DEVICES
The audio output from an external source can
be connected to the AUX INPUT jack on the rear
panel and mixed with the sound of the drum
module. This is ideal if you want to play along
with songs or follow an audio drum tutorial on
your smartphone or tablet. The volume of the
external signal is controlled on that device.
AUX INPUT
AUDIO
DEVICE
—
OUTPUT
—
R
L/MONO
CONNECTING USB MIDI
Your drum module is USB class-compliant. This
means you can plug it into a USB class compliant
host (such as most modern macOS, Windows,
immediately. There are no drivers to install;
simply plug n’ play.
If you connect the drum module to a computer,
you can trigger software programs or record your
performance into a MIDI sequencing application.
Check the operation and setup instructions for
the software you intend to use for more details.
USB cable not included.
AUX INPUT
AUDIO
DEVICE
—
OUTPUT
—
R
L/MONO
CONNECTING HEADPHONES
Your headphones can be connected to the
SD200 module. The headphone jack is located
on the front left side of module. Use the MASTER
VOLUME knob to adjust the headphone volume.
AUX INPUT
AUDIO
DEVICE
—
OUTPUT
—
R
L/MONO
