SWITCH SETTINGS
GENERAL
The switches that determine the function of the Printer and CRT are the only ones that may need to be
verified or changed. These switches are set at the factory. In-depth explanations of switch settings for
the Printer and CRT can be found in the service manuals for each. The following information deals with
settings used in both the 256 pt. and 512 pt. Multiplex systems.
CRT
The important switches for the CRT are on the Logic Printed Circuit Board. This board can be found under-

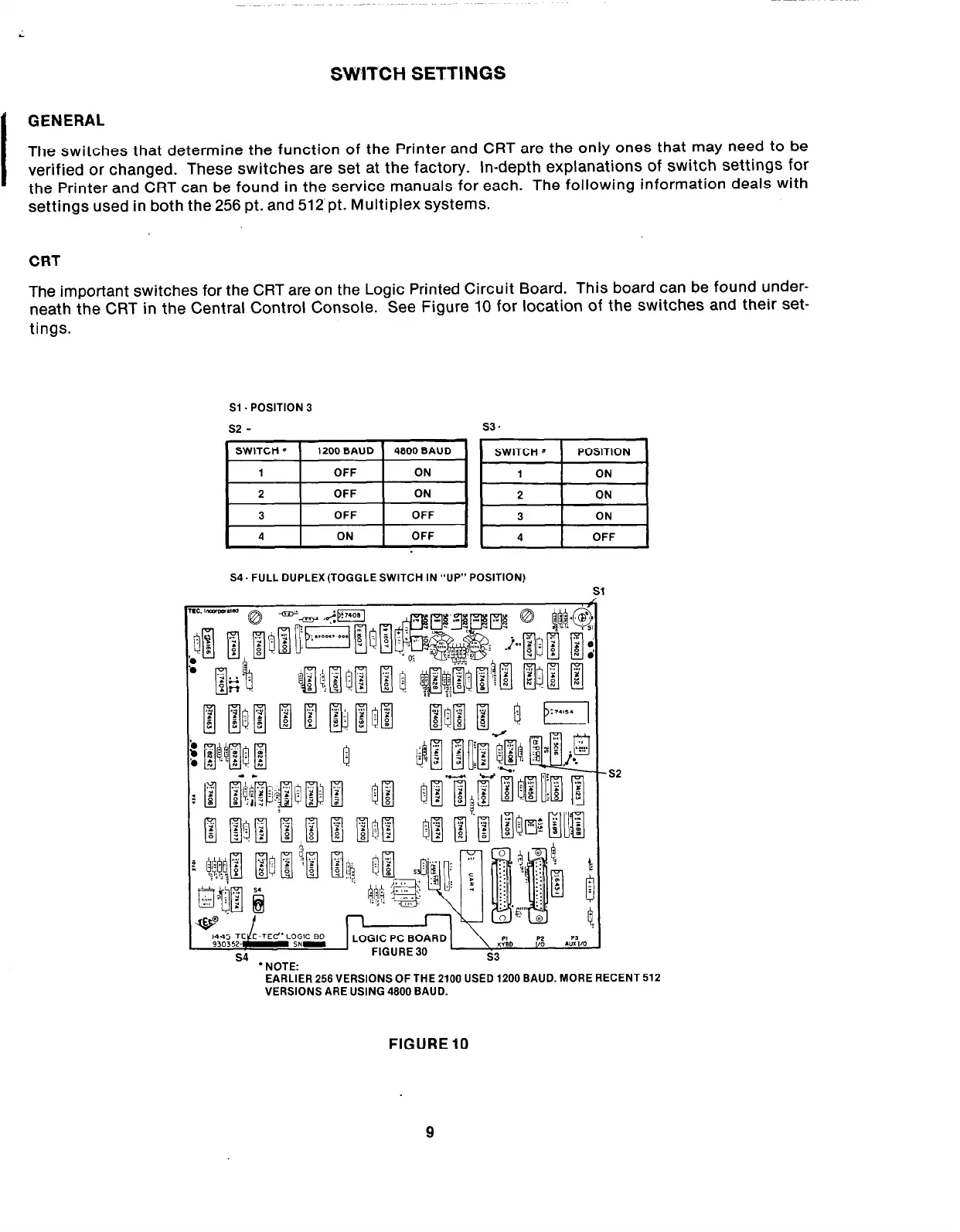

neath the CRT in the Central Control Console. See Figure 10 for location of the switches and their set-
tings.
Si . POSITION 3
s2 -
SWITCH 5 1200 BAUD
4800 BAUD
1 OFF
ON
2 OFF
ON
3 OFF
OFF
4 ON
OFF
s3.
S4. FULL DUPLEX (TOGGLE SWITCH IN “UP” POSITION)
s4
* NOTE:
EARLIER 256 VERSIONS OF THE 2100 USED 1200 BAUD. MORE RECENT 512
VERSIONS ARE USING 4800 BAUD.
FIGURE 10
9
