Simplex 4010 User Guide

Maintenance Disconnect Switch
FIRE
RELEASING
DEVICE
Class B NAC wiring
dedicated to Suppression
Release Peripheral
IDNet communications,
Class A or Class B
Addressable devices
Releasing
Appliance Circuit
Valve wiring
junction box
Coil Supervision
Module 2081-9046
COIL SUPERVISION MODULE ( 2 AMP) 2 081 - 9046
INS T A L L A T ION IN S T R UC T IONS 5 7 4 - 4 3 7 RE V
MAINTAIN 1/4" SEPARATION
BETW EEN POW ER LIMITED
( RED/BLK) AND NONPOW ER
LIMITED ( YEL/BLK) W IRING
RED
NAC+
NA C -
BLK
DAT E CODE: 51 9 - 9 58
YEL
BLK
S
SIMPLEX TIME RECORDER CO. GARDNER MA. USA
Listed/approved actuator or
Deluge and Preaction
Automatic Water Control
Valve; one if 24 VDC (or 2 in
series if 12 VDC) per RAC
Blk
Yel
A
Blk
Red
-
-
Out
In
+
+
MANUAL
RELEASE
4090-9005/-9006 Suppression
Release Peripheral
-
I
D
N
E
T
I
N
+
+
I
D
N
E
T
I N
-
Supervised IAM with
optional Abort Switch
To 4009 IDNet NAC Extender or
4010 Fire Alarm Control Panel
2080-9056/-9057 Abort
Switch (as required)
Maximum Notification Appliance Circuit (NAC) Wiring Distances to a Suppression Release Peripheral
(based on a total drop of 3.4V)
RAC Output Current
(refer to solenoid
rating)
Distance
Total Line
Resistance
18 AWG 16 AWG 14 AWG 12 AWG
0.50 A 250 ft 76 m 399 ft 122 m 635 ft 194 m 1010 ft 308 m
3.58 
0.75 A 167 ft 51 m 266 ft 81 m 423 ft 129 m 673 ft 205 m
2.39 
1.00 A 125 ft 38 m 199 ft 61 m 317 ft 97 m 500 ft 154 m
1.79 
Metric wire equivalents: 18 AWG = 0.82 mm
2
; 16 AWG = 1.31 mm
2
; 14 AWG = 2.08 mm
2
; 12 AWG = 3.31 mm
2
Maximum Release Appliance Circuit (RAC) Wiring Distances from Suppression Release Peripheral to
the Valve Solenoid (based on a total drop of 0.6 V)
RAC Output Current
(refer to solenoid
rating)
Distance
Total Line
Resistance
18 AWG 16 AWG 14 AWG 12 AWG
0.50 A 74 ft 23 m 118 ft 36 m 188 ft 57 m 300 ft 91 m
1.06 
0.75 A 50 ft 15 m 79 ft 24 m 126 ft 38 m 200 ft 61 m 0.71 
1.00 A 37 ft 11 m 59 ft 18 m 94 ft 29 m 150 ft 46 m 0.53 
Metric wire equivalents: 18 AWG = 0.82 mm
2
; 16 AWG = 1.31 mm
2
; 14 AWG = 2.08 mm
2
; 12 AWG = 3.31 mm
2
PUSH AND HOLD
FIRE SUPPRESSION
SYSTEM ABORT
NORMAL
DISC.
/
DISABLE
FIRE SUPPRESSION
DISCONNECT / DISABLE
0
1
PUSH AND HOLD
FIRE SUPPRESSION
SYSTEM ABORT
NORMAL
DISC.
/
DISABLE
FIRE SUPPRESSION
DISCONNECT / DISABLE
0
1
24 VDC power
for indicator
lamp (2 wires)
Wire indicator
lamp with 14 AWG
maximum
5 S4010-0003-5 6/2013

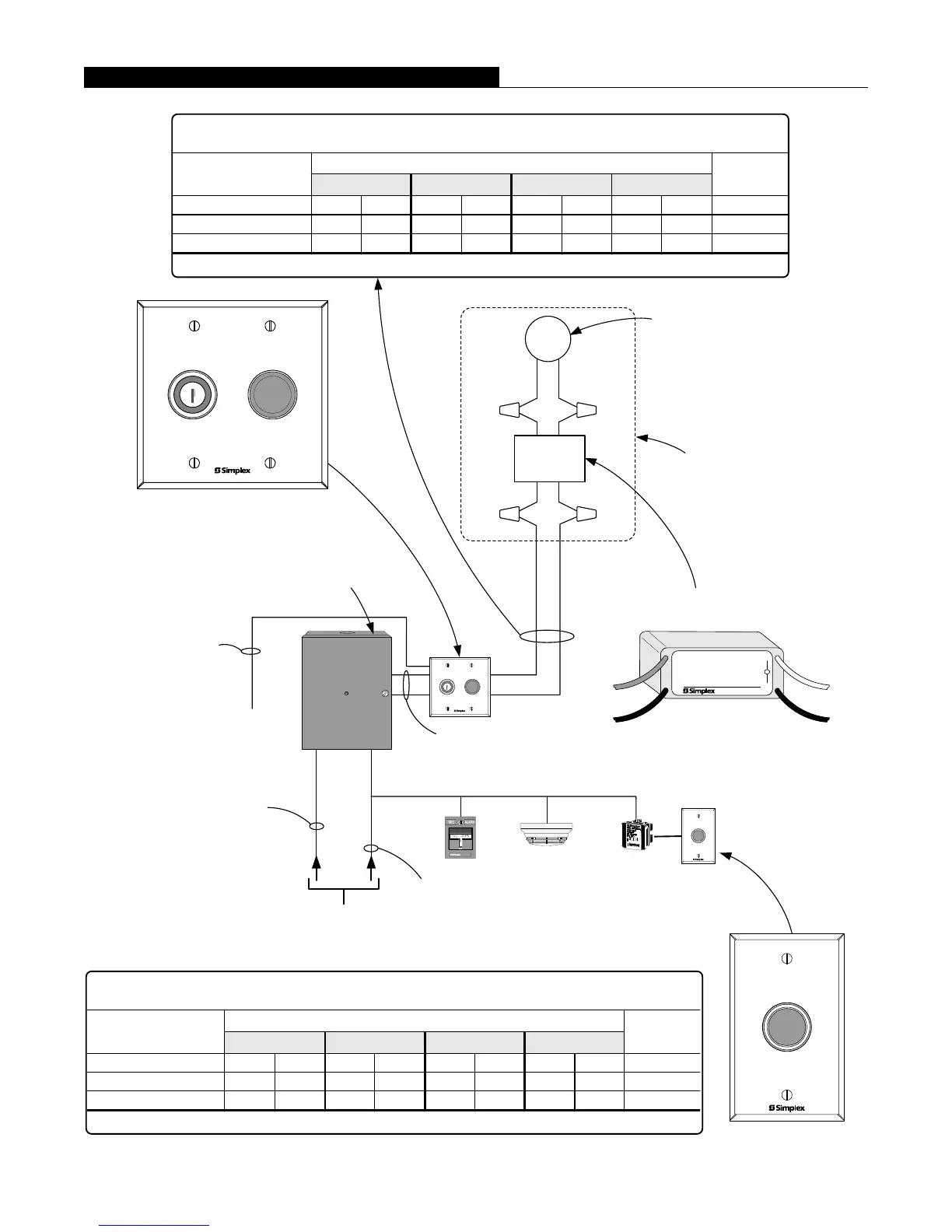

Suppression Release Peripheral Wiring Reference

Simplex 4010 Specifications

General

Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Manufacturer	Simplex
Model	4010
Battery Backup	24 VDC
NAC Outputs	4
Max Detectors	250
Max Modules	250
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	Up to 93% RH, non-condensing
