Door width
6-1/8" (156 mm)
Box depth
4" (102 mm)
Box depth with door
4-1/16" (103 mm)
Door height
8-1/8"
(206 mm)
4 Knockouts,
one each side
Door hinges on left and
lifts off for access
4090-9812 LED indicator
option (supplied with
4090-9006)
Door screw
fastener
Door depth
1/2" (13 mm)
2975-9227 Box, red with white
lettering (supplied with 4090-9006)
Box width
6" (152 mm)
Box height
8" (203 mm)
4090-9005 Suppression
Release Peripheral assembly
(supplied with 4090-9006)
NAC -NAC +
IDNet-IDNet+
RAC -RAC +
IDNET SUPPRESSIO N RELEASE PERIPHERAL ASSY 566-104
ON
1 2 3 4 5 6 7 8
Tyco Fire Protection Products • Westminster, MA • 01441-0001 • USA S4010-0003-5 6/2013
www.simplexgrinnell.com
© 2013 Tyco Fire Protection Products. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm and
Signaling Code are registered trademarks of the National Fire Protection Association (NFPA).

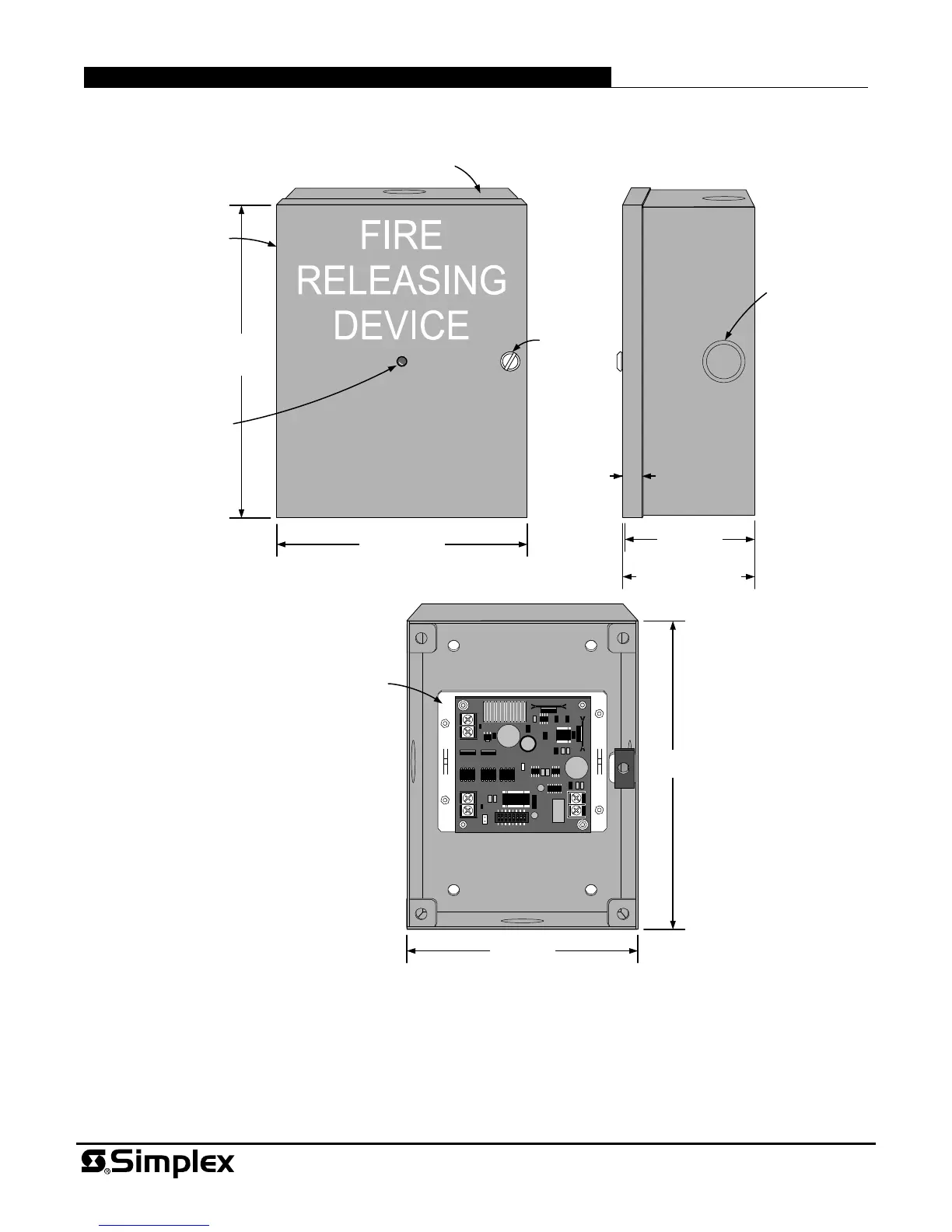

Suppression Release Peripheral Installation Reference Diagram
