Simplex 4098-9019 User Manual

Wiring Specifications

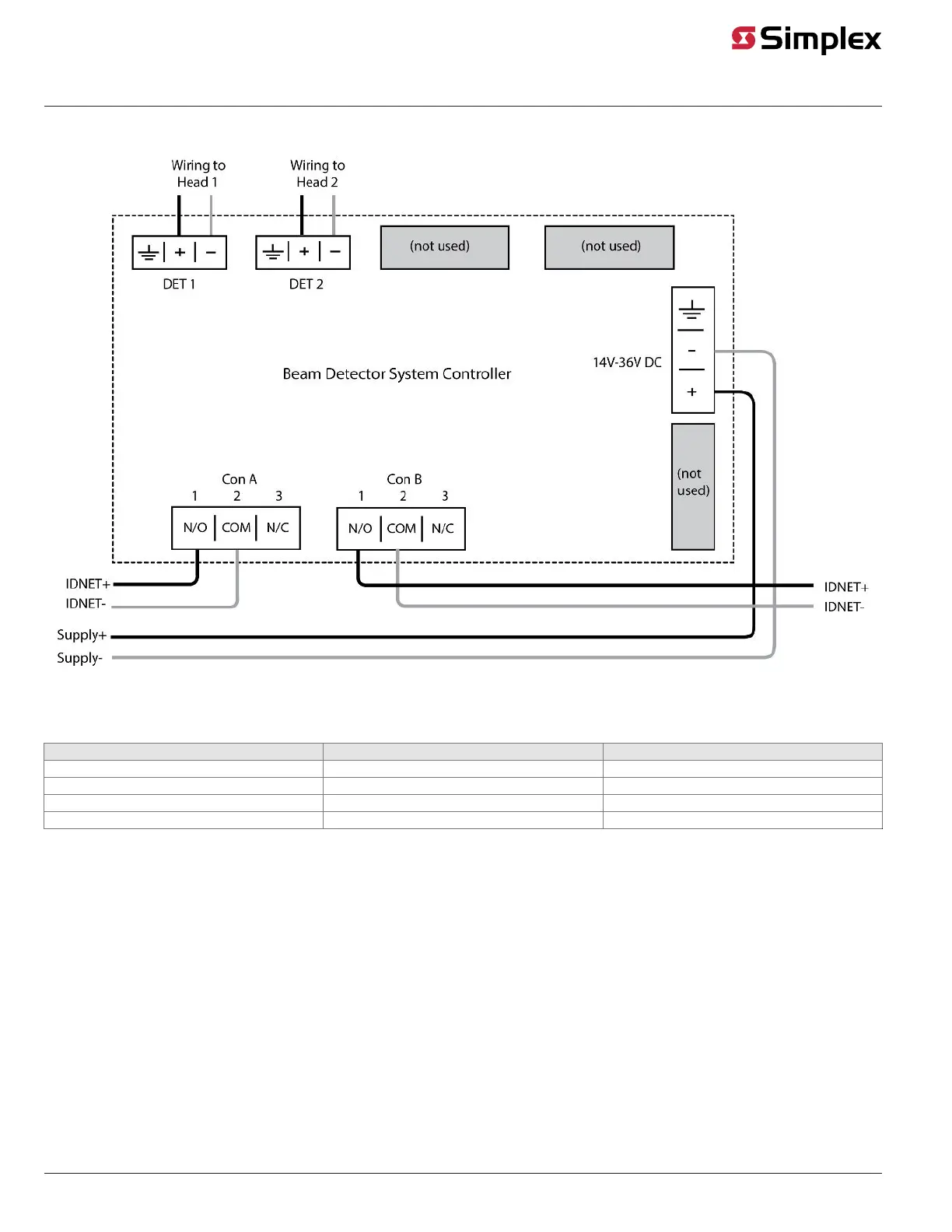

Figure 1 depicts the wiring diagram that must be used when adding this device to an IDNet circuit.
Figure 1: Device Wiring on a IDNet Circuit
Consult Table 1 for the type of wiring needed to connect the FACP to the Beam Detector System Controller.
Table 1: Wiring Type
Card Type Wiring Type Reference Manual
IDNet 14 AWG -18 AWG Shielded Twisted Pair 574-800
IDNet+ 14 AWG -18 AWG Twisted Pair 579-786
IDNet1+ 14 AWG -18 AWG Twisted Pair 579-1014
IDNet 2+2 14 AWG -18 AWG Twisted Pair 579-1169
Note: Refer to the appropriate IDNet Card manual for the maximal wiring distances.
page 2 579-1039 Rev. D
4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming

Simplex 4098-9019 Specifications

General

Brand	Simplex
Model	4098-9019
Category	Smoke Alarm
Language	English
