8
ADDRESS
SWITCH
ADDRESS
SWITCH
UL-LISTED
CONTROL PANEL
SIMPLEX, 4010
4020, 4100+ OR 4120
MAPNET II / IDNet
CIRCUIT
POWER CIRCUIT
24 VDC
4098-9756
4-WIRE DUCT SENSOR
1
ON
2
3
4
5
6
7
8
1
TB1
SW2
4098-9756
4-WIRE DUCT SENSOR
1
ON
2
3
4
5
6
7
8
SW2
2 3 4 5 6 7 8
WHT
BLUE
YELLOW
ORANGE
C
N.C.
N.O.
WHT
LED
+-
ALM
+-
TEST +24V 24CMAP + MAP -
LED
+-
ALM
+-
TEST +24V 24CMAP + MAP -
9 10 11 12 13 14 15 16 1
TB1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
2098-9806
REMOTE ALARM
INDICATOR /
KEYSWITCH
2098-9808
ALARM INDICATOR
RED
ALARM
LED
SEE
NOTES
3, 4
RED
BLK
OPTIONAL
(SEE ACCESSORIES)
OPTIONAL
(SEE ACCESSORIES)
RED
ALARM
LED
TEST
SEE NOTES 3,4
4098-9843
PAM-SD
RELAY
SEE
NOTE 5
OPTIONAL
4098-9843
PAM-SD
RELAY
RED
TO OTHER MAPNET II/
IDNet DEVICES
SEE NOTE 2
BLK
SHIELD
SHIELD
SEE NOTE 1
+
-
+
-
+
-
SHIELD
(OPTIONAL)
WHT
BLUE
YELLOW
ORANGE
C
N.C.
N.O.
WHT
RED RED RED RED
-
+
1/2 W 10K EOL RESISTOR
4081-9008

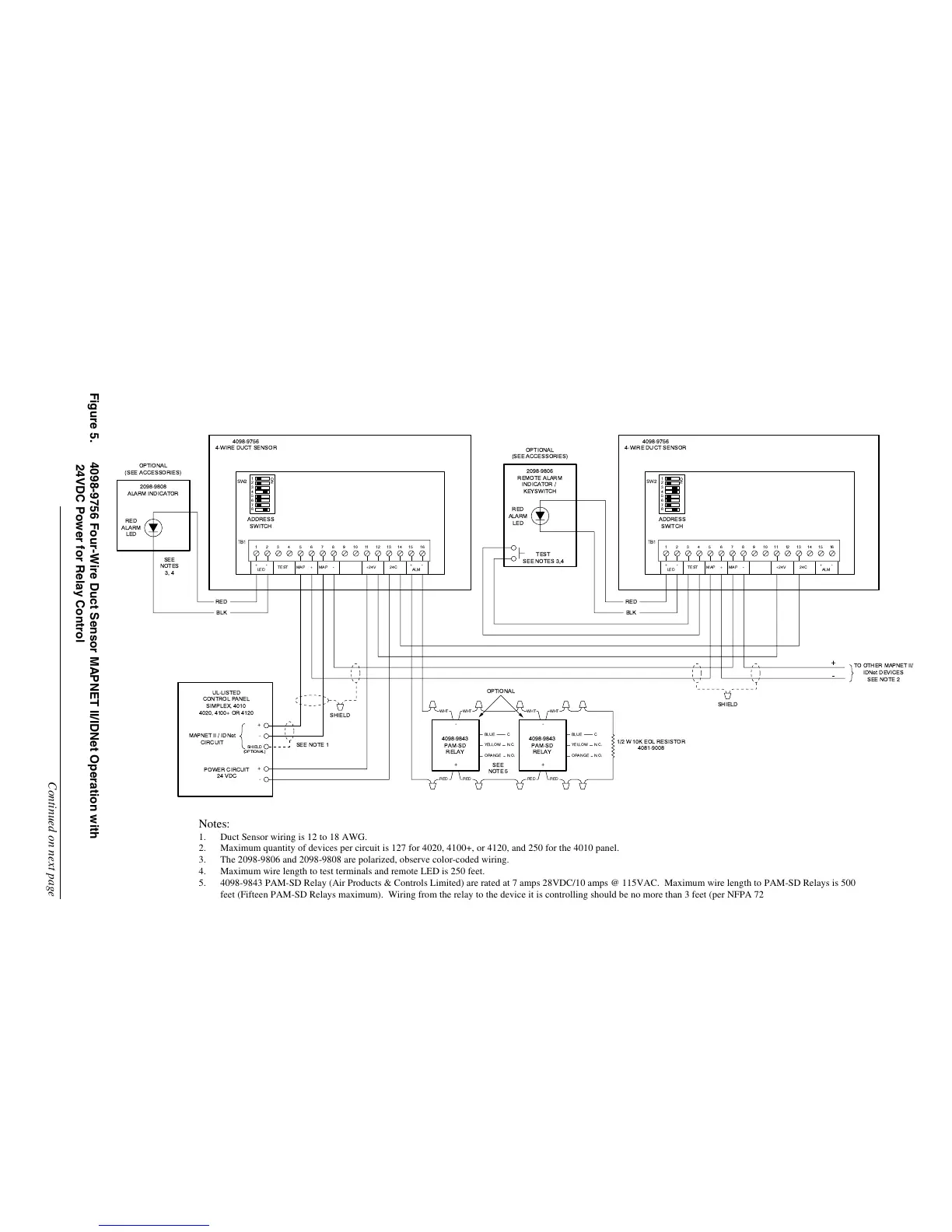

Figure 5. 4098-9756 Four-Wire Duct Sensor MAPNET II/IDNet Operation with
24VDC Power for Relay Control
Continued on next page
Notes:
1. Duct Sensor wiring is 12 to 18 AWG.
2. Maximum quantity of devices per circuit is 127 for 4020, 4100+, or 4120, and 250 for the 4010 panel.
3. The 2098-9806 and 2098-9808 are polarized, observe color-coded wiring.
4. Maximum wire length to test terminals and remote LED is 250 feet.
5. 4098-9843 PAM-SD Relay (Air Products & Controls Limited) are rated at 7 amps 28VDC/10 amps @ 115VAC. Maximum wire length to PAM-SD Relays is 500
feet (Fifteen PAM-SD Relays maximum). Wiring from the relay to the device it is controlling should be no more than 3 feet (per NFPA 72).
