A Digital Audio Riser Termination Plug (734-183) is provided with every Digital Audio
Controller or Digital Audio Riser Module. You must use this termination plug to properly
terminate the Digital Audio Signal on the PDI.
To properly terminate the Digital Audio Signal on the PDI, you must install the termination plug
into P7 of the Node’s last bay that has Digital Audio. The Digital Audio Controller should be the
first item and the Digital Audio Termination Plug the last item in the Digital Audio PDI Bay-to-
Bay wiring. See Figure 17:

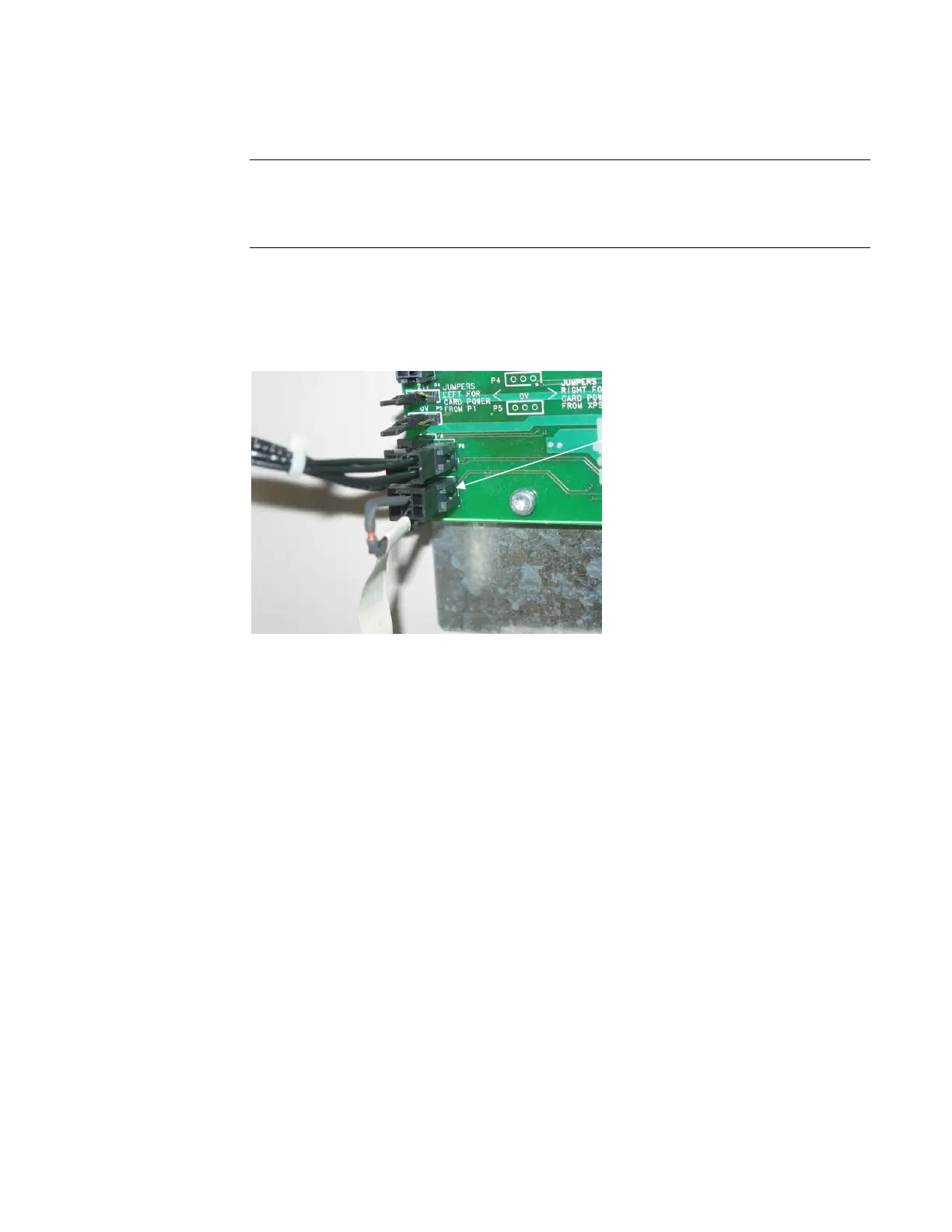

Figure 17. Installing a Digital Audio PDI Termination Plug
Digital Audio PDI Termination Plug
Overview
Installing a Digital
Audio PDI
Termination Plug
Place the Digital Audio PDI
Termination Plug into P7 of the
Node’s last bay with Digital Audio.
