Simplex 4100U Manual

Tyco, Simplex, the Simplex logo, MAPNET II, IDNet, TrueAlarm, SmartSync, MINIPLEX, and TrueAlert are trademarks of Tyco International Services AG or its affiliates in the
U.S. and/or other countries. VESDA is a trademark of Vision Products Pty Ltd.
Door thickness
1-3/8"(35 mm)
Exposed cabinet for
semi-flush mounting
1-3/8" (35 mm)
minimum
Exposed door and
cabinet for semi-
flush mounting
2-3/4" (70 mm)
minimum
24" (610 mm)
8-3/8"
(213 mm)
6-29/32"
(175 mm)
4" stud
6" stud
Knockout screw/nail holes
(for semi-flush mounting)
Stud alignment
markers, each side
Wall board reference
for semi-flush
mounting, 6" stud
Optional semi-flush
trim kit reference

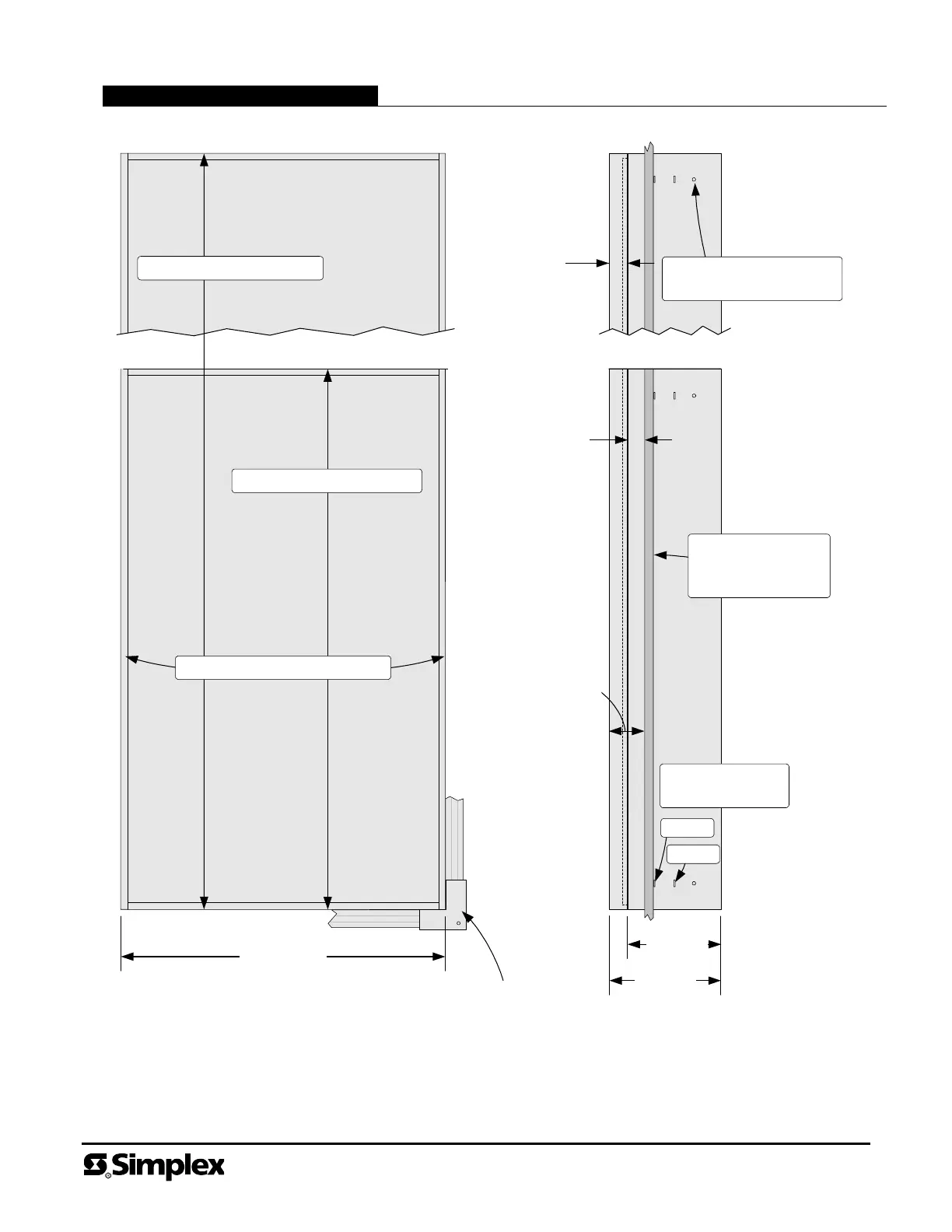

Front view, box outline without door Side view with door attached
2 Bay height 40" (1016 mm)
Doors can be hinged left or right
3 Bay height 56" (1422 mm)
TEPG-US • 91 Technology Drive • Westminster, Massachusetts • 01441-0001 • USA S4100-0035-2 5/02
© 2002 TEPG-US (a Tyco company). All rights reserved. All specifications and other information www.tepg.com
shown were current as of document revision date and are subject to change without notice.
Enclosure Installation Reference

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
