6 - 48
6 General Repair
6C Foot Controls Repair

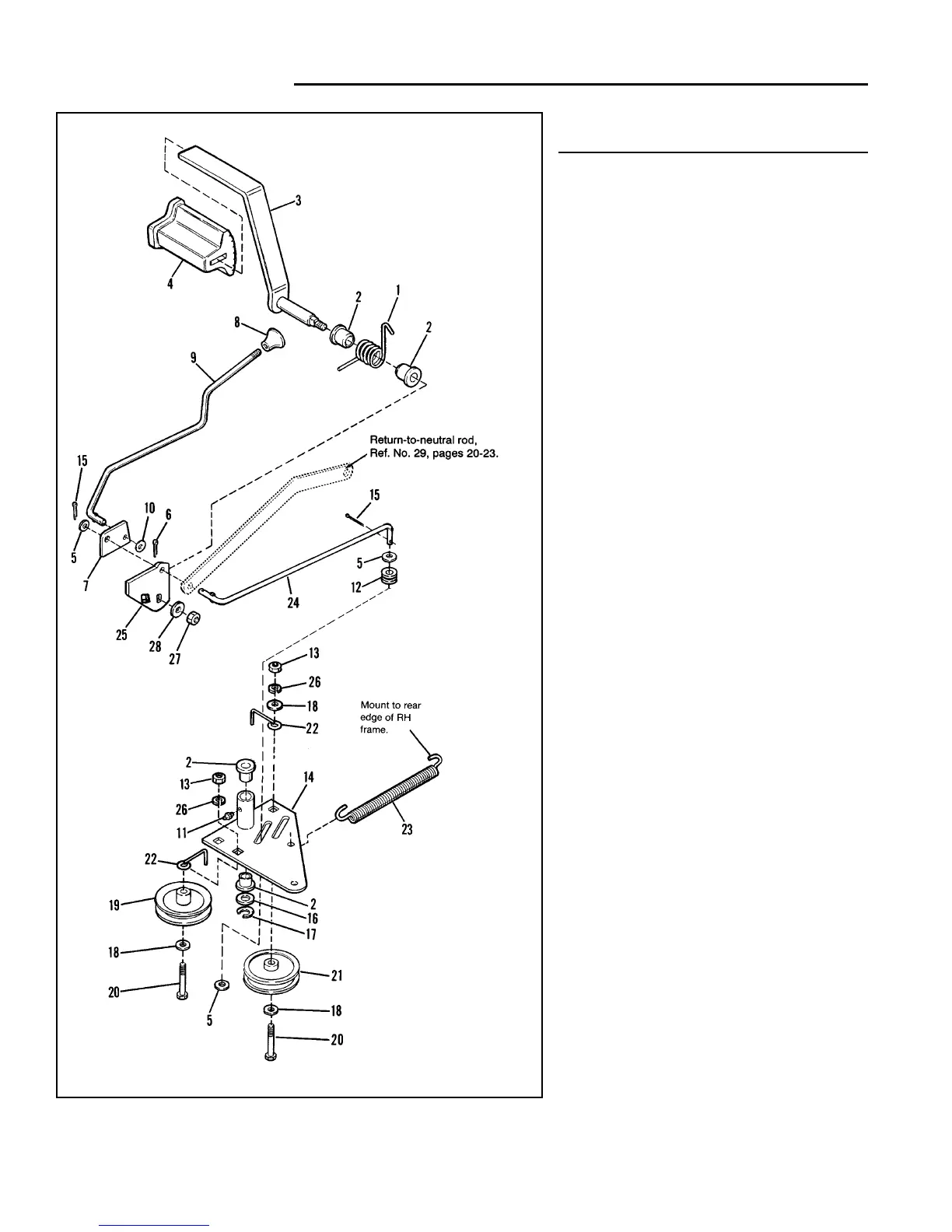

Figure C–17. Clutch/Brake Controls Group - Tuff Torq K215A
1 SPRING, Torsion
2 BUSHING
3 BRAKE PEDAL ASSY.
4 PAD, Foot Pedal
5 WASHER, Plain, 11/32
6 COTTER PIN
7 CAM, Parking Brake
8 KNOB, Plastic
9 ROD, Parking Brake
10 WASHER, Plain, 9/32
11 FITTING, Grease
12 GROMMET
13 NUT, Hex, Full, 3/8-16
14 IDLER ARM ASSY.
15 PIN, Cotter
16 WASHER, 5/8
17 CLIP RING, 5/8
18 WASHER, Plain, 13/32
19 PULLEY, Flat, Idler
20 CAPSCREW, 3/8-16 x 2
21 PULLEY, "V"
22 BELT STOP
23 SPRING, Tension
24 ROD, Clutch
25 ARM, Foot Pedal
26 LOCKWASHER, 3/8
27 NUT, Hex, Lock, 3/8-16
28 WASHER
REF.
NO. DESCRIPTION
Clutch / Brake Controls -
Tuff Torq K215A Models
