Simplicity 1691996 User Manual

6 General Repair
6D Hood, Dash, & Grill Repair
6 - 66
14. Disconnect the two wire connector (A, Figure D-14)
and the eight wire connector (B) that tie the upper
wire harness to the lower wire harness.

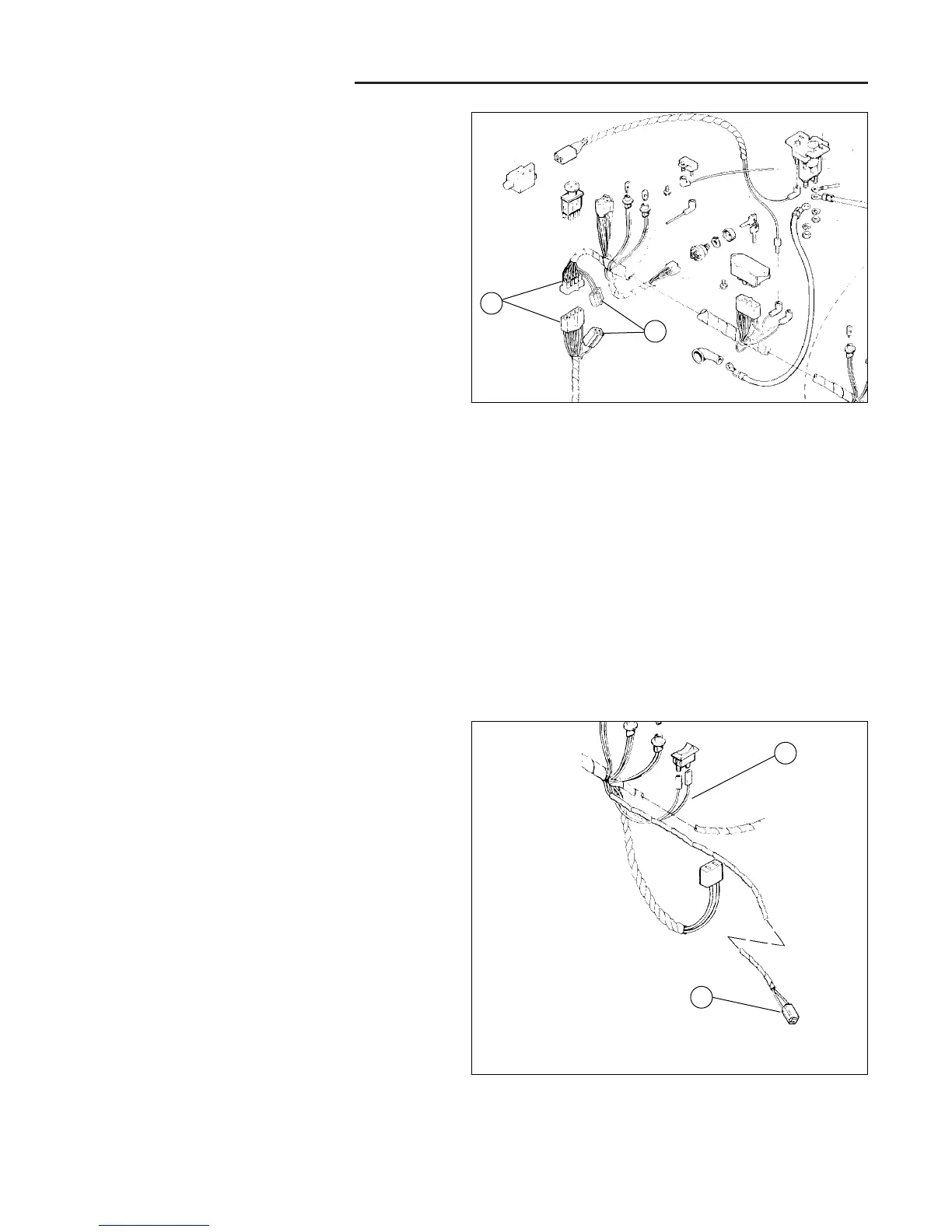

Figure D-14. Upper and Lower Wire Harness
Connectors
A. 2-Wire connector
B. 8-Wire Connector
B
A
15. Locate the two wires that go from the upper wire har-
ness to the safety switch located at the base of the
clutch pedal. Disconnect the two-wire connector (B,
Figure D-15) at the clutch pedal end and thread the
wire up through the body of the tractor.
Figure D-15. Wire Connection
A. Upper harness
B. 2-Wire Connector (Landlord)
B
A

Simplicity 1691996 Specifications

General

Type	Lawn Tractor
Fuel	Gasoline
Engine Power	19 HP
Transmission	Hydrostatic
Drive	2WD
Horsepower	19 hp
Weight	500 lbs
PTO Type	Independent
Engine	Briggs & Stratton
Engine Type	Single-cylinder
Fuel Tank Capacity	2.5 gallons
Tire Size Front	15x6-6
Tire Size Rear	20x8-8
Turning Radius	18 inches
Wheelbase	48 inches
Ground Clearance	4 in
Height	42 inches
