6 General Repair
6F Rear Wheel Repair
WHEELS
General

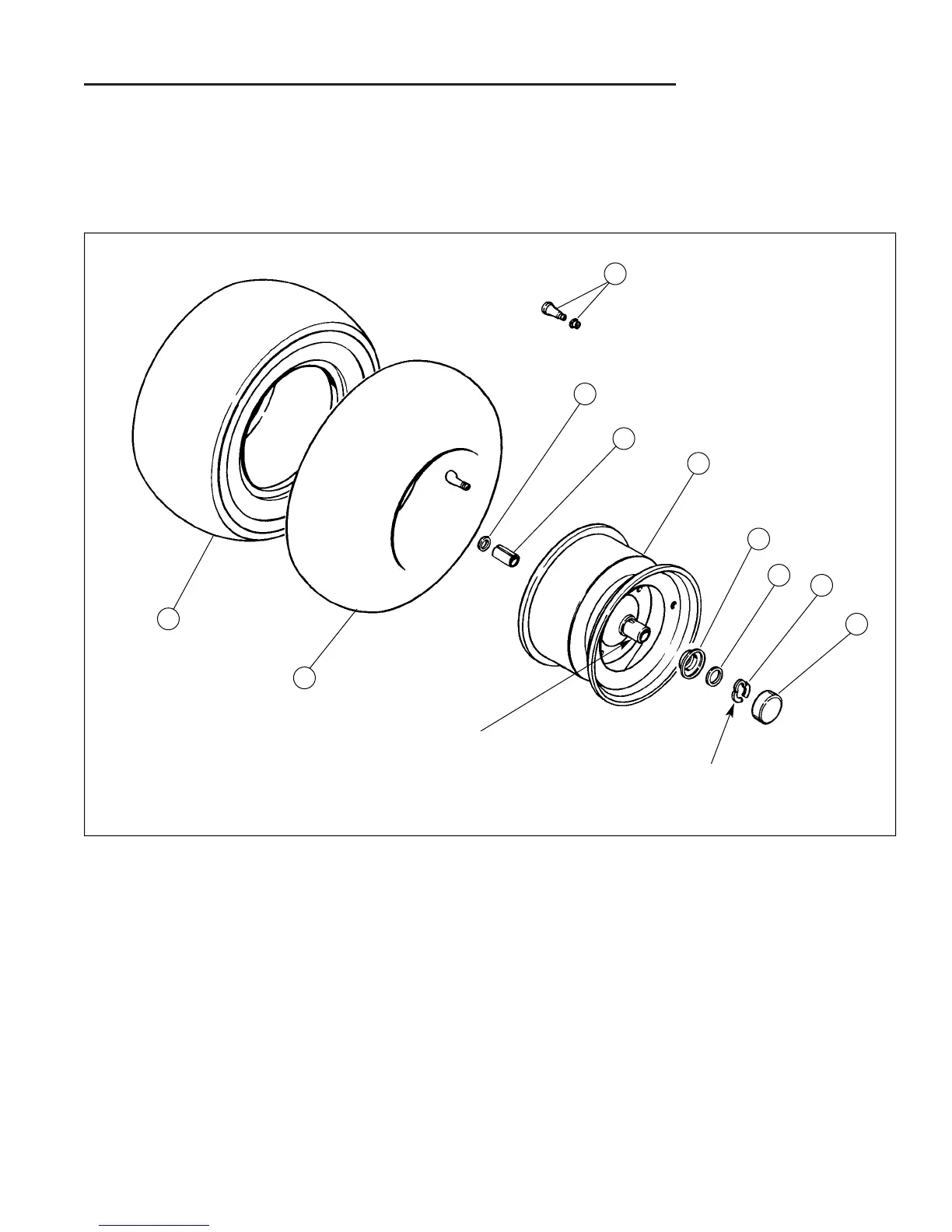

The following shows an exploded view of late model rear
wheel assemblies.
Figure F-1. Rear Wheel Assembly
Retaining ring must be
properly seated in groove
of rear axle.
Apply anti-seize lubri-
cant to axle before
assembly.
I
H
G
F
B
A
E
D
C
A. Rear Tire
B. Tube (Optional)
C. Washer)
D. Spacer
E. Rim Assembly
F. Washer, Hub Cap Retainer
G. Washer
H. Retaining Ring
I. Hub Cap
J. Valve Stem & Cap
J
