7 Transmission Repair
7C Hydro-Gear 216-3010L
19. With the sealant applied, install the right hand hous-
ing down onto the left hand housing while aligning the
various shafts with the bearings. Make sure the align-
ing pins for the housing halves engage properly and
seat the right hand housing firmly onto the left.
20. Apply a locking adhesive and install the eleven pri-
mary assembly bolts. Torque each bolt to 16-21 ft.

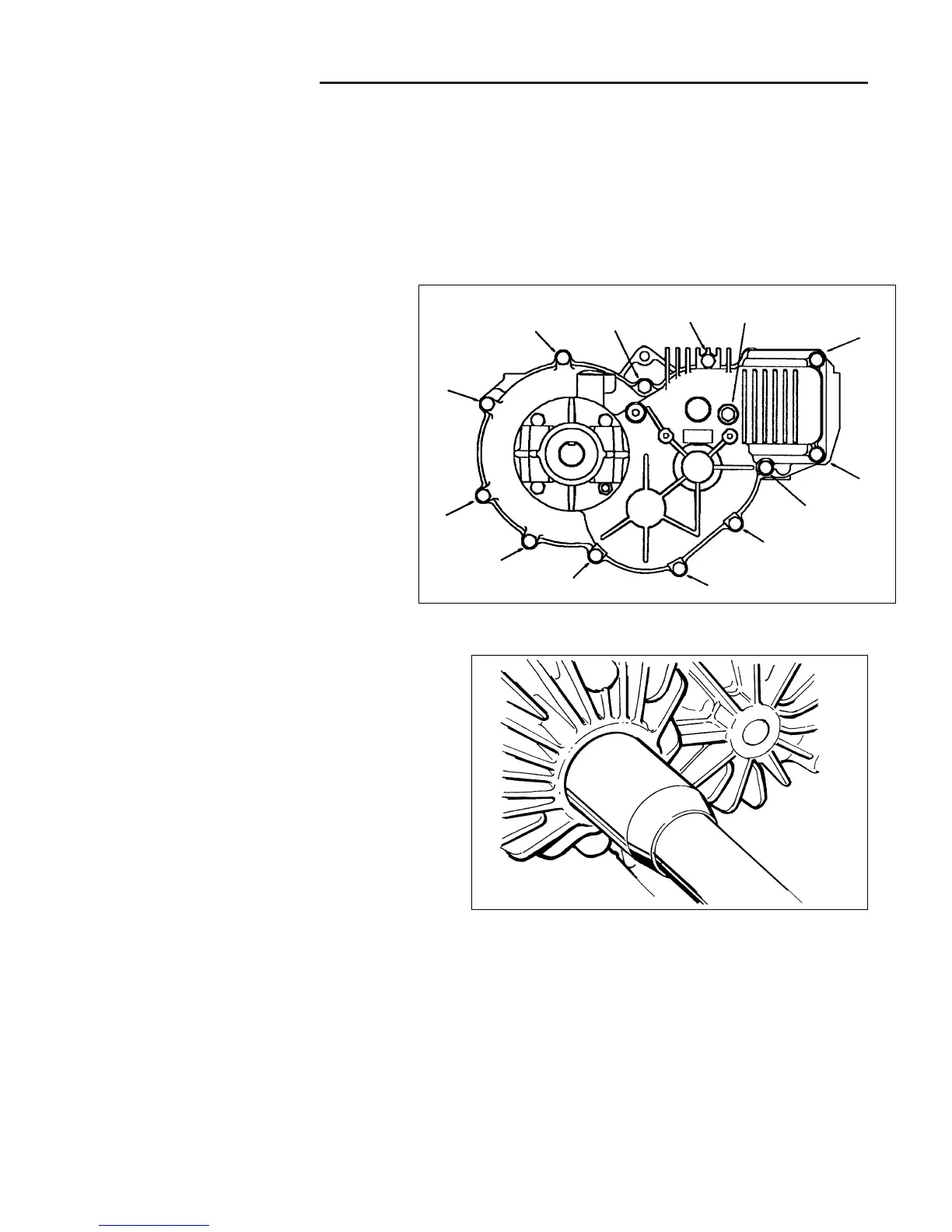

lbs. in pattern as shown in figure C-31.
Figure C-31. Recommended Bolt Torque Sequence
21. Install the two torque strap mounting bolts and lock-
nuts. Torque each to 13-17 ft. lbs..
Note: Always use care during assembly procedures to
avoid damage to lip seals.
22. Install a new lip seal into the right hand housing axle
bore and install the right hand axle carrier assembly
(see Axle Carrier section).
23. Install a new lip seal onto the brake shaft (see
replacement procedure under Lip Seal).
24.Roll the gears to insure the proper assembly and
function of the unit.
Figure C-32. Lip Seal Installation
7
9
11
13
12
4
1
8
10
6
3
5
2

Simplicity 1691996 Specifications

General

Type	Lawn Tractor
Fuel	Gasoline
Engine Power	19 HP
Transmission	Hydrostatic
Drive	2WD
Horsepower	19 hp
Weight	500 lbs
PTO Type	Independent
Engine	Briggs & Stratton
Engine Type	Single-cylinder
Fuel Tank Capacity	2.5 gallons
Tire Size Front	15x6-6
Tire Size Rear	20x8-8
Turning Radius	18 inches
Wheelbase	48 inches
Ground Clearance	4 in
Height	42 inches
