7 - 69
7 Transmission Repair
7E Tuff Torq K210A

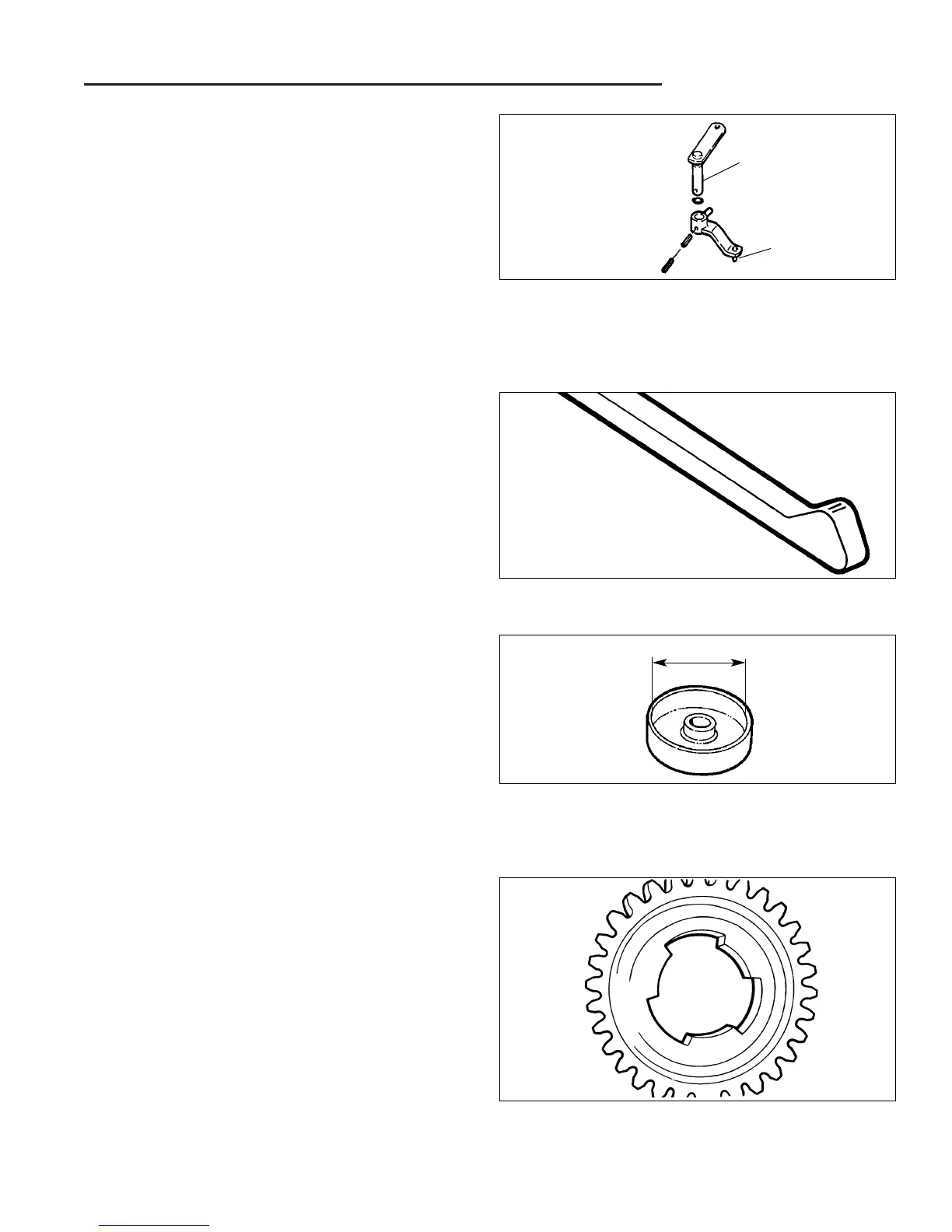

14. Inspect three shift keys for bent shafts or wear at tips
where gear contact is made.
Figure E-32. Inspect Shift Keys
Figure E-31. Measure Range and Shift Arm
11. Measure outside diameter of shift arm pin (C).
Shift Arm Pin OD: 7.964–8.000 mm
12. Measure outside diameter of range arm shaft (D)
Range Arm Shaft OD: 16.957–17.000 mm
13. Measure inside diameter of bore where range arm
passes through transaxle case.
Range Arm Case Bore: 17.016–17.043 mm
Range Arm to Case Bore Clearance:
New: 0.16–0.086 mm
Maximum: 0.5 mm
D
C
15. Measure brake components as follows:
A. Brake Drum ID (A, Figure E-33): 88.2–88.4 mm
Brake Cam lever Shaft OD: 19.947–20.000 mm
Cam lever Shaft End Float: 0–0.43 mm
Cam lever Shaft Bore ID in Brake Cover:
20.020–20.053 mm
Cam lever-to-Cover Clearance:
New: 0.02–0.106 mm
Maximum: 0.5 mm
Figure E-33. Inspect Brake Drum
A
16. Inspect shifter gear teeth and shift key contact area
for wear or damage.
Shift Gear Inside Diameter (at shaft contact area):
32.000–32.025 mm
Figure E-34. Inspect Gears
