7 - 78
7 Transmission Repair
7E Tuff Torq K210A

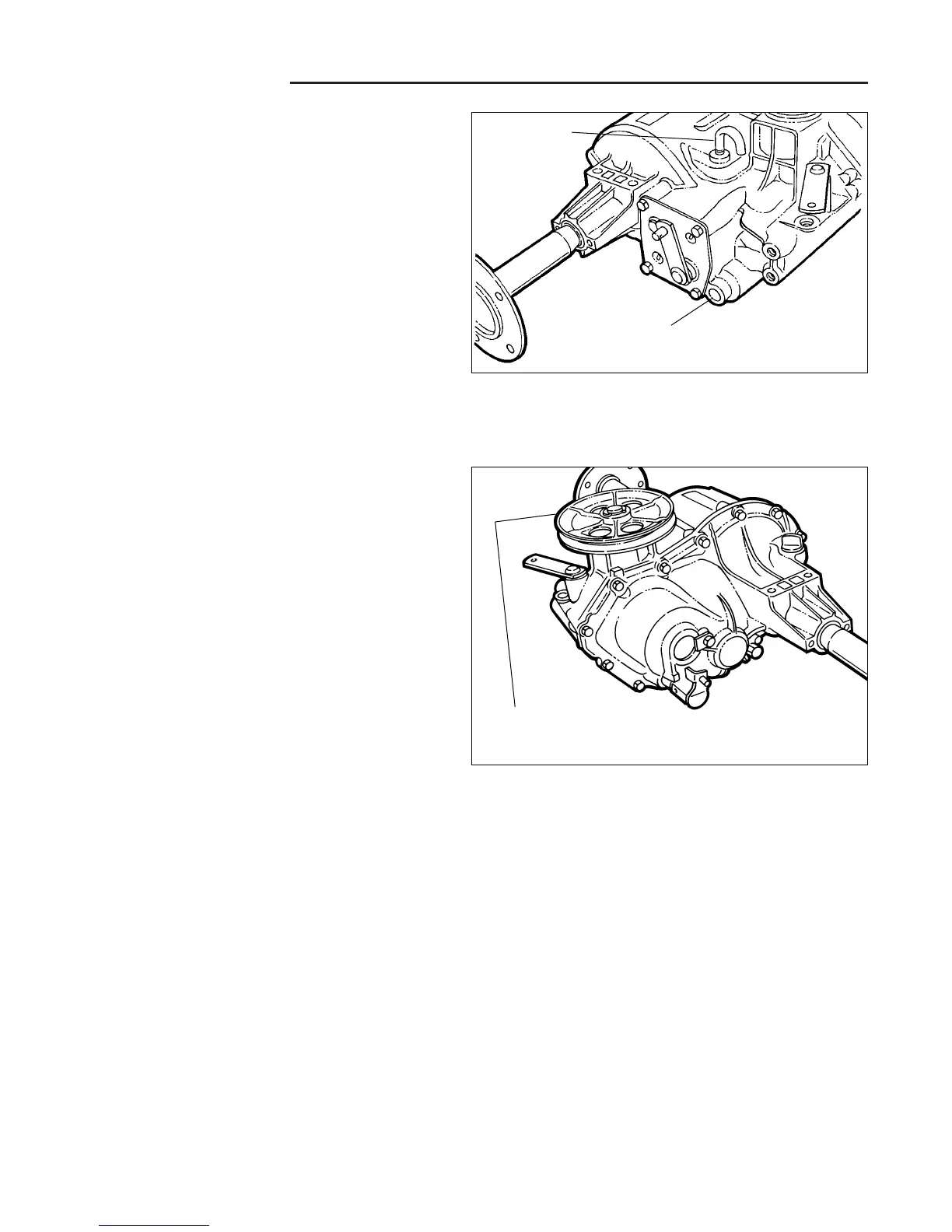

Figure E-60. Install Seal Cap and Vent
Figure E-61. Input Shaft Pulley
68. Install seal cap into bore below brake assembly.
69. Clean threads on case vent (if removed) and apply
Loctite to threads.
Case Vent Tightening Torque: 0.8–1.2 Kg-m
Seal Cap
Case Vent
70. Install input shaft seal and drive into place.
71.Install input shaft pulley and retainer. Check for
excessive end play on input shaft pulley.
Input Shaft Pulley End Play: 0.08–0.53 mm
72.Fill transaxle with 3.5–3.9 Liters of SAE 10w-30
engine oil.
Input Shaft Pulley
