14. Disconnect the two wire connector (A, Figure D-14)
and the eight wire connector (B) that tie the upper
wire harness to the lower wire harness.

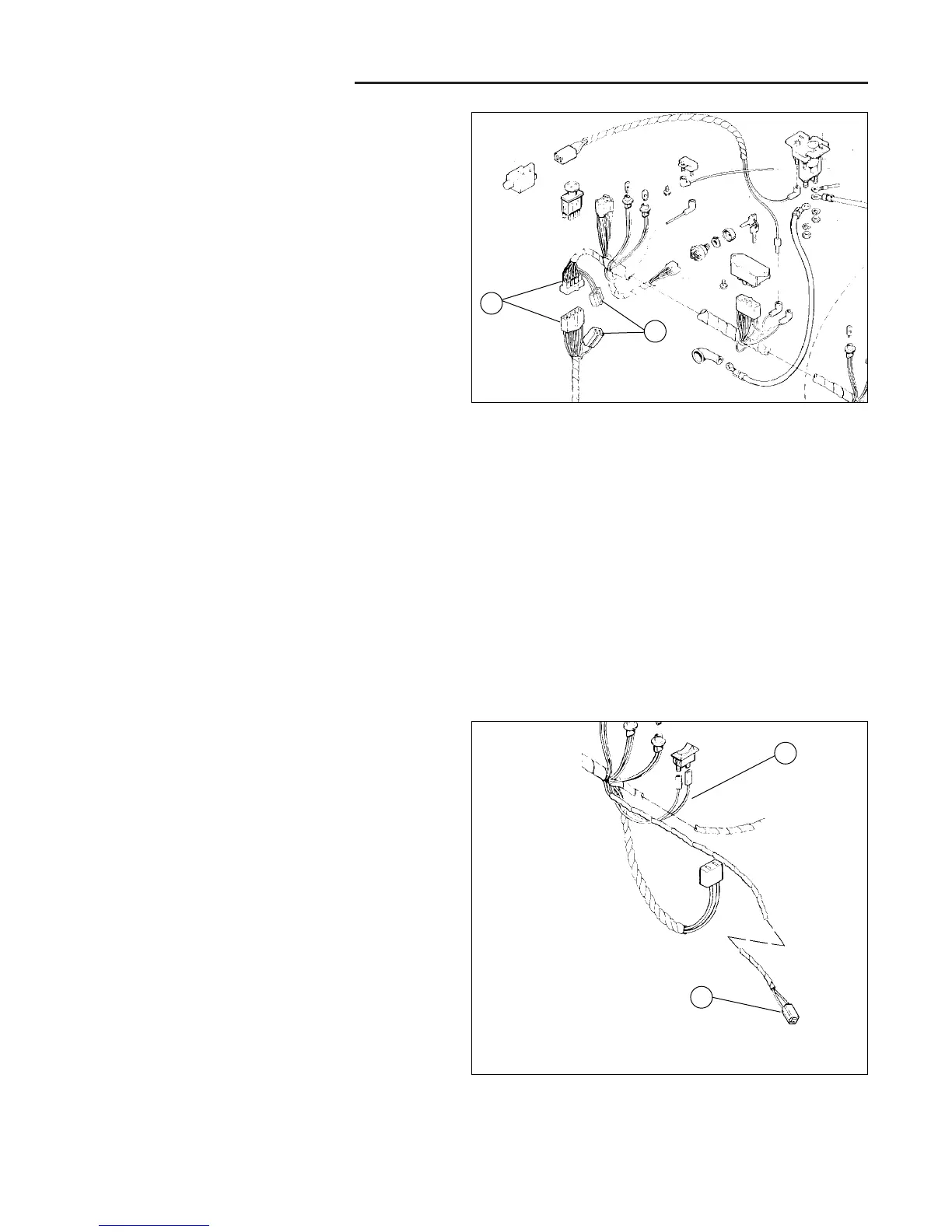

Figure D-14. Upper and Lower Wire Harness
Connectors
A. 2-Wire connector
B. 8-Wire Connector
B
A
15. Locate the two wires that go from the upper wire har-
ness to the safety switch located at the base of the
clutch pedal. Disconnect the two-wire connector (B,
Figure D-15) at the clutch pedal end and thread the
wire up through the body of the tractor.
Figure D-15. Wire Connection
A. Upper harness
B. 2-Wire Connector (Landlord)
