7 - 11
7 Transmission Repair
7A Tuff Torq K215A

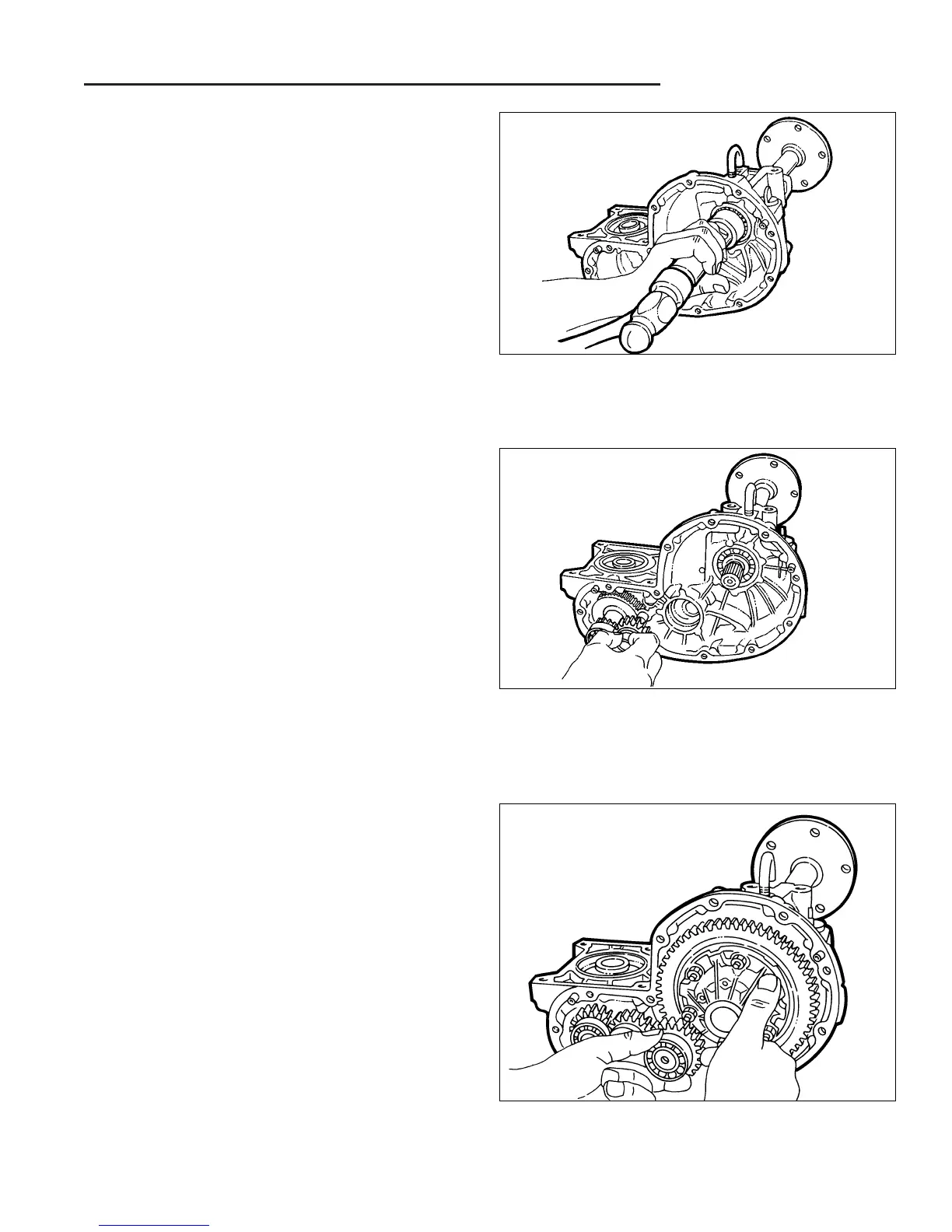

Figure A-27. Install Axle Assembly In Housing
Figure A-28. Install Reduction & Idler Gear Shaft
Figure A-29. Install Final Pinion & Differential
37. Lubricate the axle with petroleum jelly to protect the
seal. Be careful not to contact the splined end with
the seal. Install the axle into the housing. Replace
the axle and seat the bearing on the axle.
38. Install a thrust washer, retaining ring and the second
thrust washer to secure the axle.
39. Install the reduction shaft, and idler gear and shaft
together. Be sure the flat on the idler shaft lines up
with the tab in the case.
40. Install the final pinion and differential into the case.
