7 - 13
7 Transmission Repair
7A Tuff Torq K215A

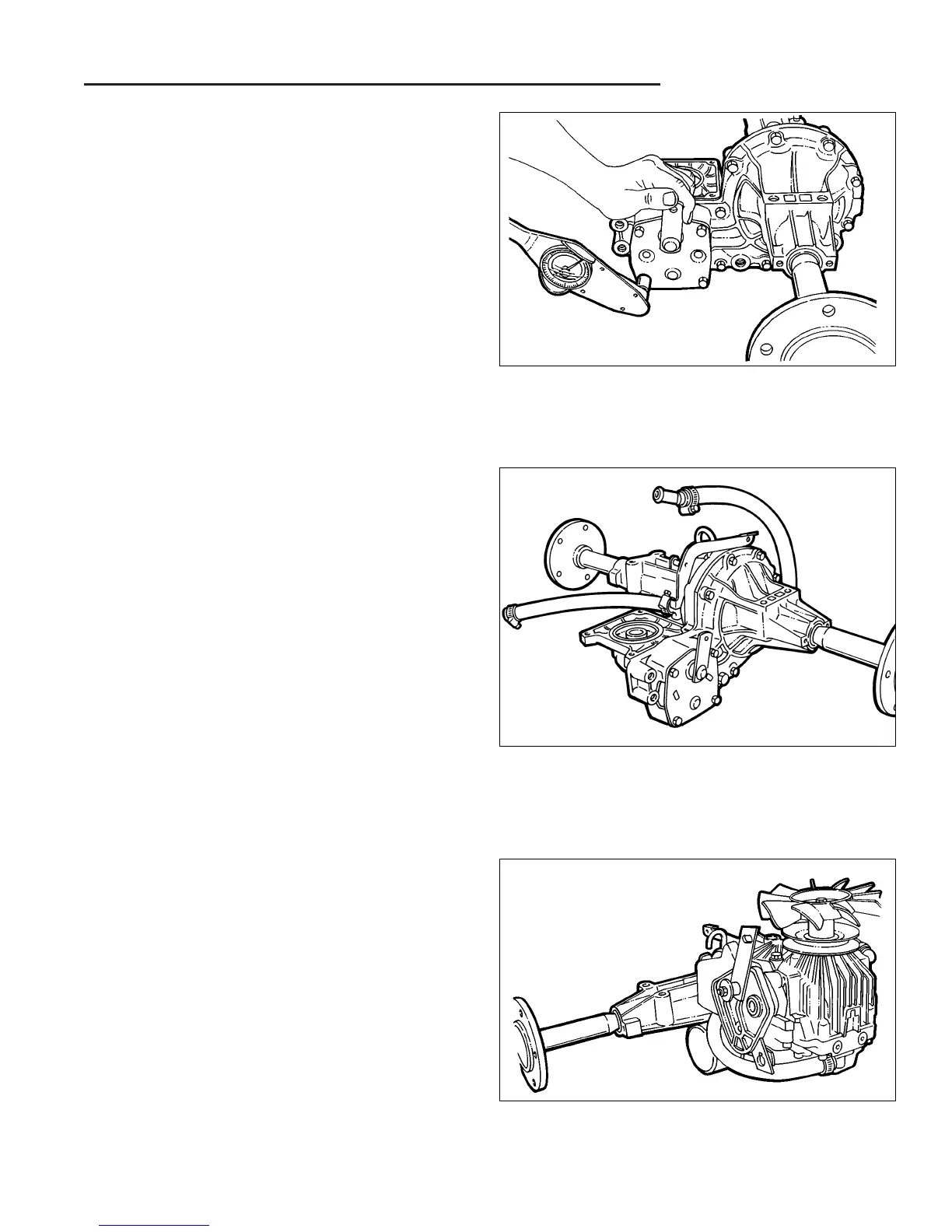

Figure A-33. Install Brake Cover
Figure A-34. Install Hoses On Transaxle Housing
Figure A-35. Install Hydrostatic Pump On Transaxle
47. Install brake cover assembly. Pull the cam lever for-
ward as you tighten the capscrew. Torque screw:
New case (20-23 ft lb.)
Used case (17-20 ft lb.)
48. Return the oil supply and return hoses to their ports.
Remember the spacers on the oil fitting bolts. Install
the drain plug and free wheeling latch. Next are the
bearing spacer and O-ring at the motor gear.
49. Install the O-ring and spacer on the gear case before
placing the hydrostatic pump in position.
50. Install hydrostatic pump on gear case and install four
(4) capscrews. Torque to 20-23 ft lb..
