REF NAME FUNCTION
A Gasoline Gauge Shows gasoline level and serves as a tank cap
B Ammeter Shows when battery is being charged or discharged.
C Clutch/Brake Pedal Disengages clutch when depressed at least halfway. Applies brake when fully
depressed.
D Ground Speed Control Lever Controls forward and reverse ground speeds.
E Ignition Switch & Key Starts and stops engine.
F Parking Brake Lever Locks brakes to hold tractor in parked position.
G PTO Lever Engages and disengages power to attachments.
H Choke Knob When pulled out, closes engine choke for cold weather starting.
(Located on Dash on Power Steer Models)
I Light Switch Switches headlights on and off.
(Located on Dash on Power Steer Models)
J Engine Speed Control Controls engine speed.
K Hydraulic Lift Lifts attachments to transport position.
L Hourmeter Optional accessory to record number of hours engine has run.
M Spout Rotator Optional accessory used to rotate spout on snowthrower.
6
TRACTOR CONTROLS
Features & Controls

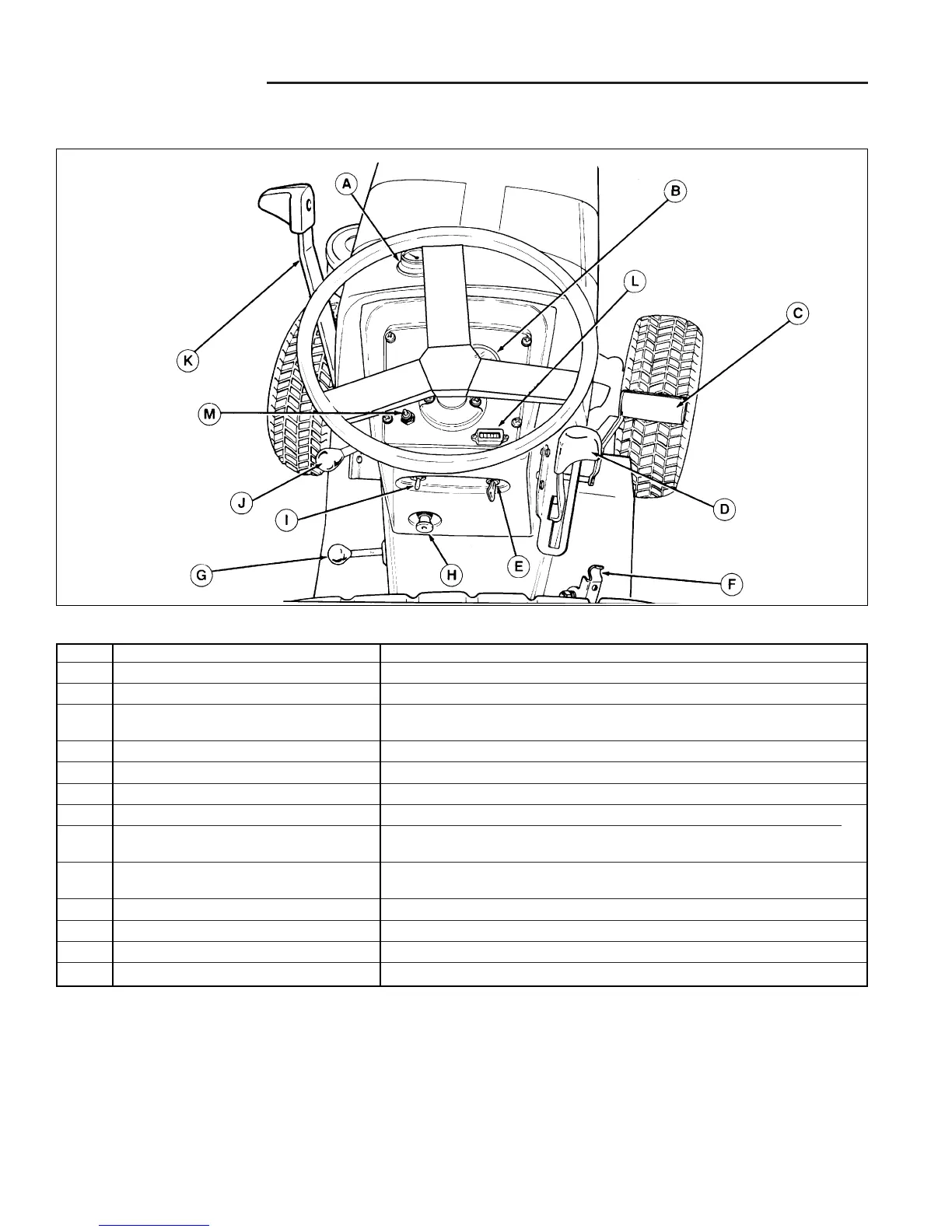

Figure 2. Tractor Controls
*2240
