Simplicity 1694389 - Removing & Reattaching Grass Catcher; Removing the Grass Catcher

9
Removing
& Reattaching Grass Catcher

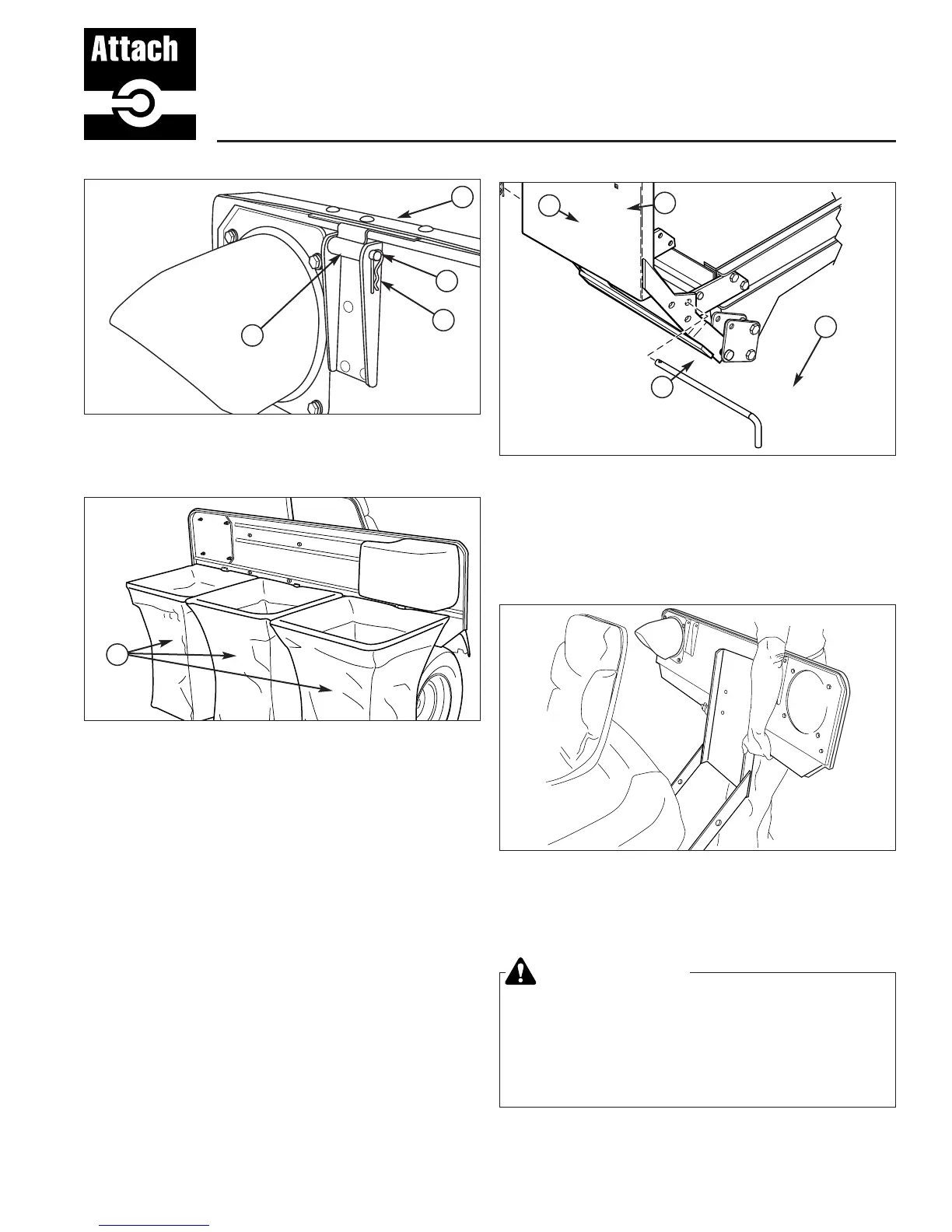

REMOVING THE GRASS CATCHER
1. Remove the hair pin clips (D, Figure 15) and hinge
pins (B) and remove the cover (A).
2. Remove the bags (A, Figure 16) by lifting them off
their hooks. Empty any grass out the bags.
3. Remove the long hitch pin (C, Figure 17, non 3-Point
Hitch Shown).
4. Lift the front and back plate assembly off the spacers
or pins (See Figure 18).
Figure 15. Remove the Cover
A. Cover C. Hinge
B. Hinge Pin D. Hair Pin Clip
A
B
C
D
Figure 16. Remove the Bags
A. Bags
Figure 18. Front & Back Plate Assembly
WARNING
OPERATION WITHOUT TURBO & CATCHER
For operation without turbo, the mower deflector
MUST be properly installed in the down position and
retained by the spring latch (see turbo operator’s
manual).
A
A
B
Figure 17. Install Side Brackets
A. Hair Pin Clip C. Hitch Pin
B. Back Plate D. Lower Spacer
C
D
